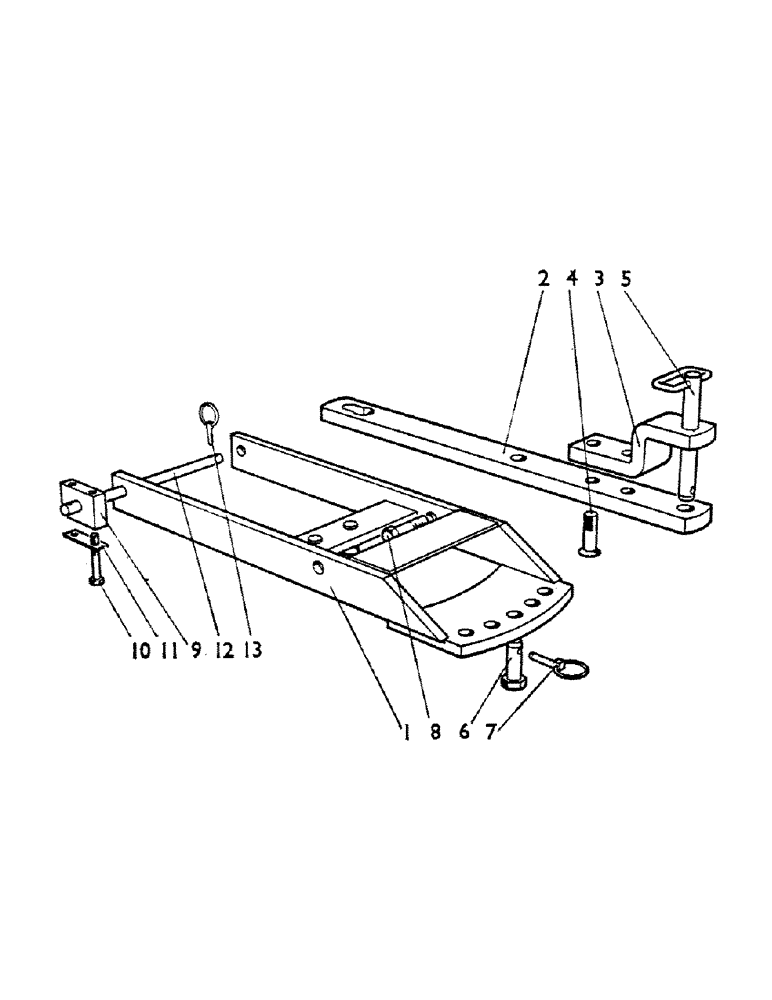

Запчасти Case IH 780 (060) - UNIVERSAL DRAWBAR, OPTIONAL EQUIPMENT Drawbars & Hitches

1

K921631

DRAWBAR

- support frame U1097 (918394)

1шт.

2

K912059

DRAWBAR, SWINGING

DRAWBAR - swinging, U1097 (918394)

1шт.

3

K912060

CLEVIS

- bracket U1097 (918394)

1шт.

4

K19728

BOLT

- 5/8 BSF x 2 1/4 in., special U1097 (918394)

2шт.

K622705

NUT

- 5/8 BSF U1097 (918394)

2шт.

5

K912062

PIN

- hitch, 7/8 x 6 1/4 in. U1097 (918394)

1шт.

6

K912063

PIN

- lateral stop, 7/8 x 2 1/2 in. U1097 (918394)

1шт.

7

K920359

PIN

- linch, ring U1097 (918394)

2шт.

8

K601405

BOLT

- 3/4 UNC x 2 3/8 in. (replaces 601404), U1097 (918394)

2шт.

K607007

NUT

- 3/4 UNC U1097 (918394)

2шт.

K912169

WASHER

- 3/4 in. U1097 (918394)

2шт.

K19486

WASHER, LOCK

WASHER - lock, spring, 3/4 in. U1097 (918394)

2шт.

9

K912087

HINGE

- bracket U635 (911292)

2шт.

10

K600812

BOLT

- 1/2 UNC x 2 3/4 in. U635 (911292)

4шт.

11

K912168

WASHER

TABWASHER - U635 (911292)

2шт.

12

K918764

HINGE

- bar U635 (911292)

1шт.

13

K66408

PIN

- linch, ring U635 (911292)

2шт.
