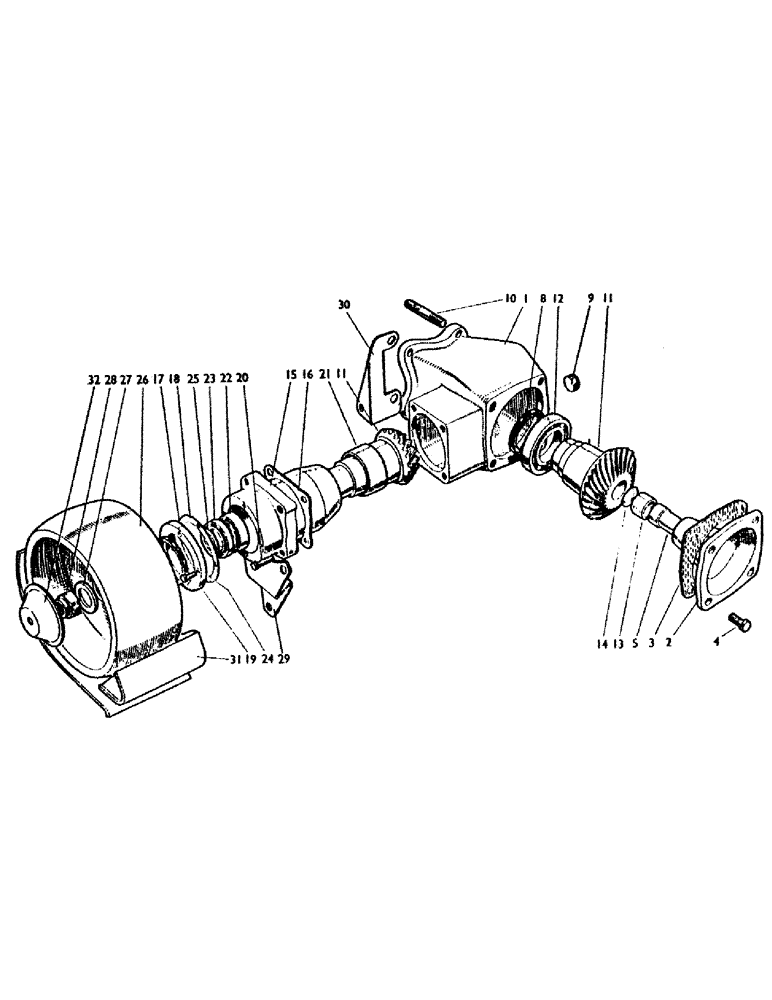

Запчасти Case IH 780 (068) - 907602, BELT PULLEY, U413, 908300, BELT PULLEY, U440, OPTIONAL EQUIPMENT Auxiliary Drive Units

K907602

X

BELT PULLEY (U413)

1шт.

K908300

NO LONGER SERVICED

BELT PULLEY (U440)

1шт.

1

K907533

NO LONGER SERVICED

HOUSING

1шт.

2

K910082

COVER ASSY

- end (with bearing pin)

1шт.

3

K907541

JOINT

- gasket

1шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in.

4шт.

5

K909718

PIN

- bearing

1шт.

8

K16725

SEAL

- oil, 1 3/4 x 2 1/2 x 5/16 in.

1шт.

9

K14518

PLUG

- taper, 3/4 BSP

1шт.

10

K907546

STUD

- 7/16 UNC, special

4шт.

280717

NUT,7/16"-14, G5

4шт.

K626344

WASHER, LOCK

WASHER - lock, spring, 7/16 in.

4шт.

11

K961037

PINION - bevel, wheel

1шт.

12

K620036

BEARING

- ball

1шт.

13

K620047

ROLLER

- needle bearing

1шт.

14

K907520

NO LONGER SERVICED

PLUG - welch, 1 1/2 in. dia.

1шт.

15

K905956

BEARING - housing

1шт.

16

K89201

SHIM,.003" Thk

(2 Nominal) .003" Thk

1шт.

16

K89202

SHIM,.005" Thk

(2 Nominal) .005" Thk

1шт.

16

K89203

SHIM,.007" Thk

(2 Nominal) .007" Thk

1шт.

17

K89205

BEARING

- retainer

1шт.

18

K89206

JOINT

- paper gasket

1шт.

19

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1 in. bearing retainer to bearing housing

4шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in. bearing retainer to bearing housing

4шт.

20

K603006

SCREW

SETSCREW - 7/16 UNC x 1 3/8 in. bearing housing to belt pulley housing

4шт.

K19483

SPRING WASHER

- spring, 7/16 in. bearing housing to belt pulley housing

4шт.

21

K19166

NEEDLE

- roller bearing

1шт.

22

K19165

BALL

- bearing

1шт.

23

K19055

ROLLER

- bearing

1шт.

24

K13709

SEAL

- oil, 1 15/16 x 2 1/2 x 5/16 in.

1шт.

25

K89208

SHIM,.003" Thk

(2 Nominal) .003" Thk

1шт.

25

K89209

SHIM,.005" Thk

(1 Nominal) .005" Thk

1шт.

25

K89210

SHIM,.007" Thk

(1 Nominal) .007" Thk

1шт.

26

K914944

BELT

- pulley, 5 1/8 in. wide U413 (907602)

1шт.

26

K908588

BELT

- pulley, 8 in. wide U440 (908300)

1шт.

27

K19493

WASHER

- 3/4 in., special

1шт.

28

K617317

NUT

- Nyloc, 3/4 UNF

1шт.

29

K907856

SUPPORT

- bracket--guard U414 (907847)

1шт.

30

K907815

SUPPORT

- bracket--guard U414 (907847)

1шт.

31

K907814

GUARD - belt pulley U414 (907847)

1шт.

K602902

SCREW

SETSCREW - 3/8 UNC x 3/4 in. U414 (907847)

2шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in. U414 (907847)

2шт.

K19472

WASHER

- 3/8 in. U414 (907847)

2шт.

32

K912778

COVER

- pulley nut

1шт.

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

- 1/4 UNC x 5/8 in.

1шт.

K19480

SPRING WASHER

- spring, 1/4 in.

1шт.
