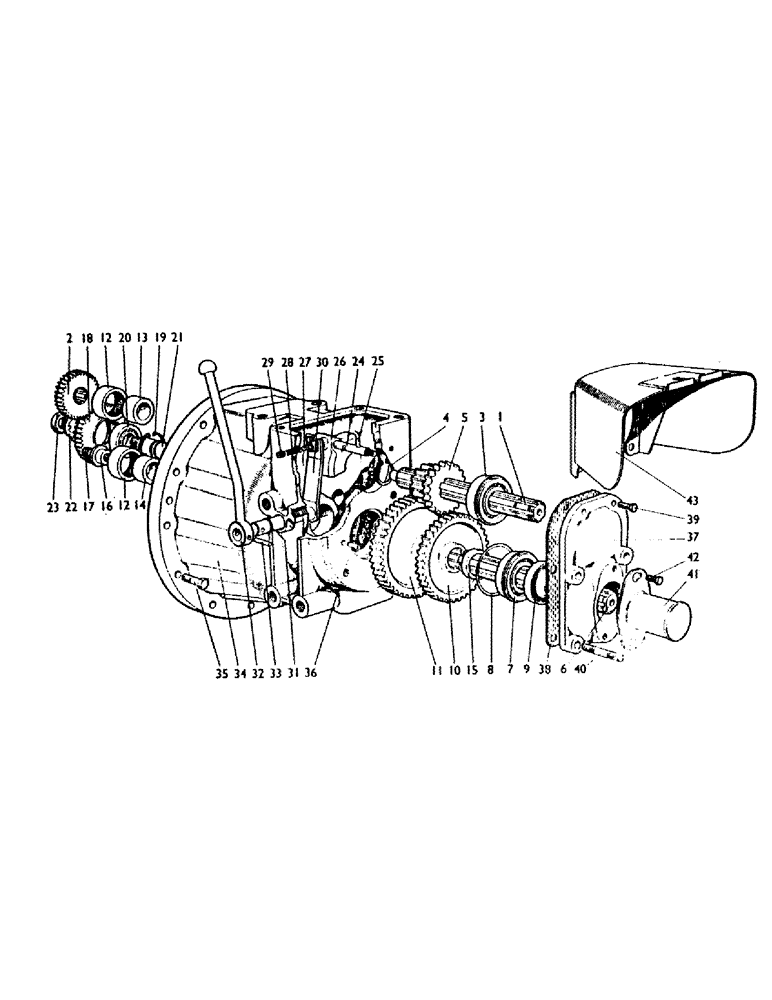

Запчасти Case IH 780 (066) - POWER TAKE-OFF UNIT Auxiliary Drive Units

K916166

NO LONGER SERVICED

PTO UNIT - (complete), single-speed, number change only (supersedes 922105)

1шт.

K916168

NO LONGER SERVICED

PTO UNIT - (complete), two-speed, number change only (supersedes 922115)

1шт.

1

K906735

DRIVE SHAFT

DRIVESHAFT

1шт.

2

K908094

GEAR

- pump drive (29 helical teeth)

1шт.

2

K906731

GEAR

- pump drive (30 spur teeth)

1шт.

3

K15172

BALL BEARING,28.57mm ID x 77.79mm OD x 20.64mm W

BEARING - ball, with snap ring

1шт.

4

K621535

RING, SNAP

SNAP RING - circlip, 1 3/64 in. ext.

4шт.

5

K921600

GEAR

- speed change pinion single-speed

1шт.

5

K906688

GEAR

- speed change pinion two-speed

1шт.

6

K906691

SHAFT

- driven

1шт.

7

K19197

BEARING, BALL

BEARING - ball, with snap ring

1шт.

9

K11119

OIL SEAL

- oil, 1 5/8 x 2 1/2 x 5/16 in.

1шт.

10

K906689

GEAR

- high speed two-speed

1шт.

11

K906692

GEAR

- low speed

1шт.

12

K620266

NEEDLE BEARING

BEARING - needle roller

2шт.

13

K906693

RING RACE

BUSHING - inner race--driveshaft

1шт.

14

K906694

BEARING

BUSHING - inner race--driven shaft

1шт.

15

K921602

BUSHING

- distance piece single-speed

1шт.

15

K904431

BUSHING

- distance piece two-speed

1шт.

16

K909349

PIN

- retaining washer (with locking pin)

1шт.

17

K606894

SCREW

CAPSCREW - 7/16 UNC x 1 in.

1шт.

K923442

GEAR

- idler (36 helical teeth)

1шт.

K621436

RING, SNAP

SNAP RING - circlip, 62 mm int.

2шт.

K620102

BEARING, BALL

BEARING - ball

1шт.

18

K906696

GEAR

- idler (37 spur teeth)

1шт.

19

K13170

RING, SNAP

SNAP RING - circlip, 52 mm. int.

2шт.

20

K24489

BALL BEARING

BALL - bearing

1шт.

21

K906697

PIN

- bearing

1шт.

22

K906698

WASHER

TABWASHER

1шт.

23

K617026

NUT

- special, 3/4 UNF

1шт.

24

K906699

PIN

- selector rod

1шт.

K921603

BUSHING

- distance piece single-speed

1шт.

25

K906700

PIN

- retaining

1шт.

26

K906701

SELECTOR

- fork

1шт.

27

K17063

BALL

- steel, 1/4 in.

1шт.

28

K24831

SPRING

1шт.

29

K606021

SCREW

GRUBSCRW - 5/16 UNC

1шт.

30

K922501

SELECTOR

- lever (supersedes 916575)

1шт.

31

K24555

O-RING,0.737" ID x 0.943" OD x 0.103"

- 3/4 in. int. dia.

1шт.

K627120

BUSHING

- distance piece--selector lever used with 916575

1шт.

K916582

SHIM

- used with 916575

1шт.

32

K916574

LEVER

- operating

1шт.

33

K623726

PIN

- Mills, 1/4 x 1 1/2 in.

1шт.

34

K921599

PTO

- case

1шт.

K922591

GASKET

- PTO to support plate (replaces 89175)

1шт.

K24827

PIN

- headed dowel, 7/16 x 1 3/4 in. case and support plate to rear axle

1шт.

K605157

SCREW

- 7/16 UNC x 1 1/8 in. case and support plate to rear axle

1шт.

35

K600605

BOLT

- 7/16 UNC x 1 7/8 in. case and support plate to rear axle

11шт.

K19483

SPRING WASHER

- spring, 7/16 in.

11шт.

36

K14577

DOWEL

- 1/4 in.

2шт.

37

K906686

COVER

- end

1шт.

38

K924217

GASKET

- (replaces 906687)

1шт.

39

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1 in.

1шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

1шт.

K15498

SEALING WASHER

- washer, 5/16 in.

1шт.

K600604

SCREW

- bolt, 7/16 UNC x 1 3/4 in. single-speed

4шт.

40

K608311

STUD

- 7/16 UNC x 2 5/16 in. two-speed

4шт.

K19483

SPRING WASHER

- spring, 7/16 in.

4шт.

280717

NUT,7/16"-14, G5

Two-speed 7/16"-14, G5

4шт.

41

K909111

COVER

- PTO shaft

1шт.

K626682

WASHER

- 5/16 in.

2шт.

42

K602840

SCREW

SETSCREW - 5/16 UNC x 1/2 in.

2шт.

43

K906893

GUARD

- PTO U378 (906988)

1шт.

K928304

SHIM

- guard--switch

1шт.
