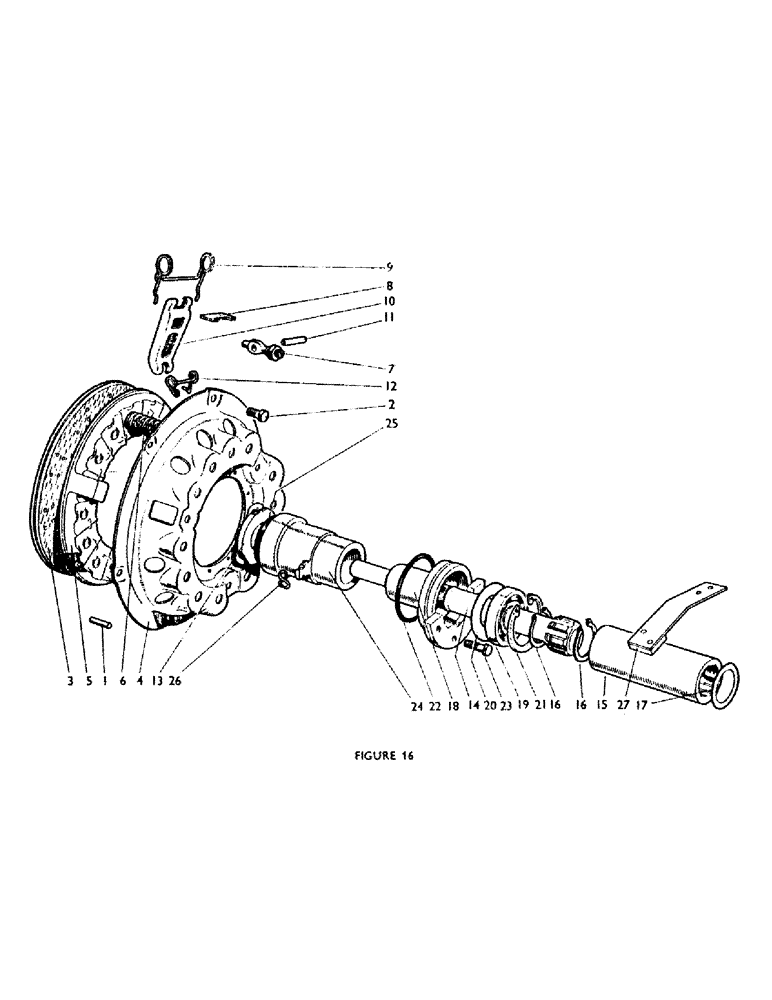

Запчасти Case IH 770B (026) - SINGLE CLUTCH, 770/B, NON-LIVEDRIVE MODELS (03.1) - CLUTCH

1

K621832

DOWEL - clutch, Serial Range: clutch-flywheel

2шт.

2

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

UNC, Clutch to flywheel (Replaces 602904) Hex, 5/16"-18 x 7/8", G5, Full Thd

6шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in., Serial Range: clutch-flywheel

6шт.

3

K915374

SPARE PART

PLATE - driven, 9 in. (with facings and rivets)

1шт.

K961797

X

FACINGS - (2), rivets

1шт.

K914094

CLUTCH - cover assembly

1шт.

4

K961798

COVER - clutch 914094

1шт.

5

K961777

PLATE

- pressure 914094

1шт.

6

K961778

SPRING

- (black) 914094

12шт.

7

K961801

SPARE PART

EYEBOLT - nut 914094

3шт.

8

K14003

STOP

- strut--release lever 914094

3шт.

9

K961799

VALVE SPRING

SPRING - valve, anti-rattle 914094

3шт.

10

K961800

LEVER

- clutch release 914094

3шт.

11

K14005

AXLE PIN

PIN - axle, release lever 914094

3шт.

12

K14079

SPRING

- retaining 914094

3шт.

13

K14080

PLATE - release lever 914094

1шт.

14

K913371

CLUTCH

- driveshaft

1шт.

15

K913378

COUPLING, BREAK AWAY

COUPLING - break away, muff

1шт.

16

K14337

CIRCLIP

- 1 3/8 in. ext.

2шт.

18

K913372

X

SUPPORT - snout

1шт.

19

K19021

BALL

- bearing

1шт.

20

K34610

SHIM

- shield

1шт.

21

K13053

RING, SNAP

SNAP RING - circlip, 72 mm., int.

1шт.

22

K24865

O-RING

- 3 3/8 in. int. dia.

1шт.

23

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1 in.

3шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

3шт.

K24866

KEY

- 3/16 x 5/32 x 1 1/4 in.

1шт.

24

K913493

BEARING - thrust

1шт.

25

K14083

RING

- carbon block--thrust bearing

1шт.

26

K919664

SPRING

- clutch fork (replaces 89336)

2шт.

27

K913472

STOP - clutch

1шт.

K602704

SCREW

- 1/4 UNC x 7/8 in.

2шт.

K912109

WASHER

TABWASHER - (replaces 913474)

1шт.
