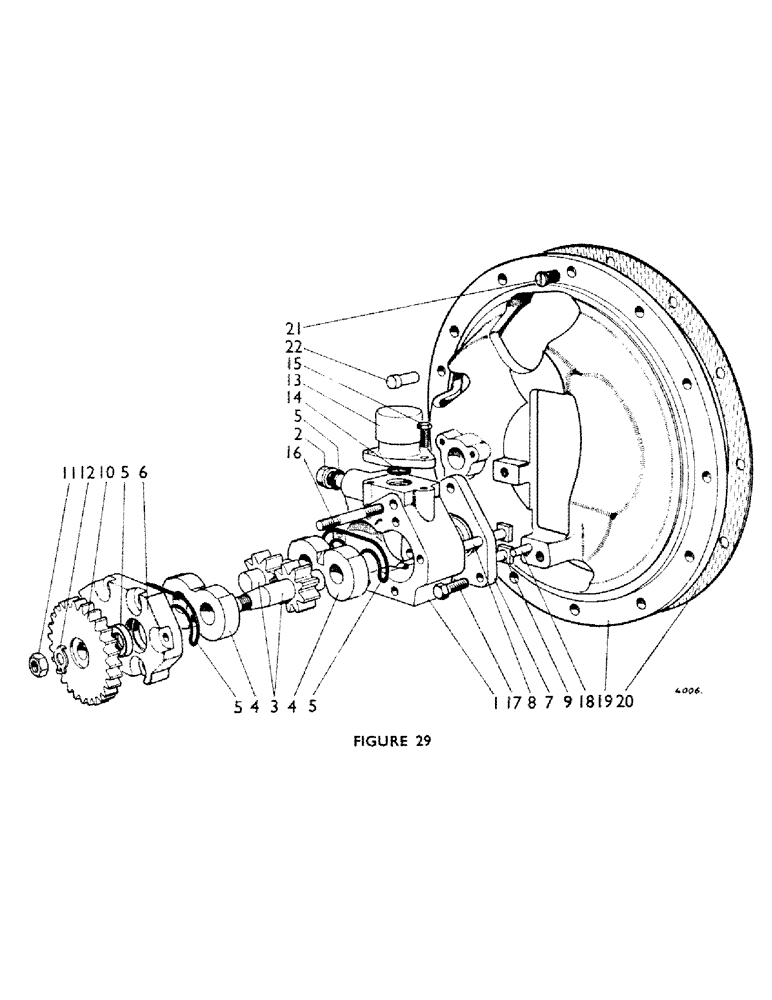

Запчасти Case IH 770B (048) - HYDRAULIC LIFT PUMP, TRACTOR 586963 ONWARD (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
K961795
NO LONGER SERVICED
PUMP - hydraulic (complete)
1шт.
K962635R
REMAN-HYD PUMP
770A (1/65-12/70), 770B (1/65-12/71) Reman for New P/N K961795
1шт.
K962635C
CORE-HYDRAULIC PUMP
Return Number
1шт.
1
K918995
PUMP
- hydraulic only (supersedes 917541)
1шт.
K962635R
REMAN-HYD PUMP
770A (1/65-12/70), 770B (1/65-12/71) Reman for New P/N K918995
1шт.
K962635C
CORE-HYDRAULIC PUMP
Return Number
1шт.
2
K962133
PLUG - valve chamber 918995
1шт.
3
K962128
GEAR
- rotors (pair) (includes 11262, 617053 and 626380), 918995
1шт.
4
K962125
BEARING
- 918995
2шт.
5
K962136
GASKET KIT
KIT - gasket, seal pack (1 oil seal, 3 'O' rings) 918995
1шт.
6
K962132
COVER
- end plate 918995
1шт.
7
K962129
FLANGE
- 918995
1шт.
8
K962130
BOLT
- 3/8 UNF, special 918995
4шт.
9
K962131
BOLT
- dowel, 3/8 UNF 918995
2шт.
K617002
NUT
- 3/8 UNF 918995
6шт.
K19483
SPRING WASHER
- spring, 3/8 in. 918995
6шт.
10
K914466
GEAR
- driven
1шт.
K11262
KEY
- Woodruff No. 505
1шт.
11
425-157
JAM NUT,Jam, 7/16"-20, G5
- 7/16 UNF
1шт.
12
K626380
WASHER
TABWASHER
1шт.
13
K919372
VALVE
- relief (pre-set assembly)
1шт.
14
K24852
O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro
- 11/16 in. int. dia. valve to pump
1шт.
15
K19222
BOLT
- 5/16 BSF x 1 in., Serial Range: valve-pump
3шт.
K19481
SPRING WASHER
WASHER - lock, spring, 5/16 in., Serial Range: valve-pump
3шт.
16
K608221
STUD
- 3/8 UNC x 3 11/16 in. pump to back plate
1шт.
17
413-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
SETSCREW - 3/8 UNC x 1 1/8 in. pump to back plate
2шт.
K19482
SPRING WASHER
WASHER - lock, spring, 3/8 in. pump to back plate
3шт.
280136
NUT,3/8"-16, G8
Pump to back plate 3/8"-16, G8
1шт.
18
K24853
PIN
- dowel pump to back plate
2шт.
19
K905667
SUPPORT
- plate
1шт.
20
K89175
GASKET
- plate to rear axle case and PTO unit
2шт.
21
K605157
SCREW
- 7/16 UNC x 1 1/8 in.
1шт.
22
K24827
PIN
- headed dowel, 7/16 x 1 3/4 in.
1шт.
Выбрано товаров: 33
