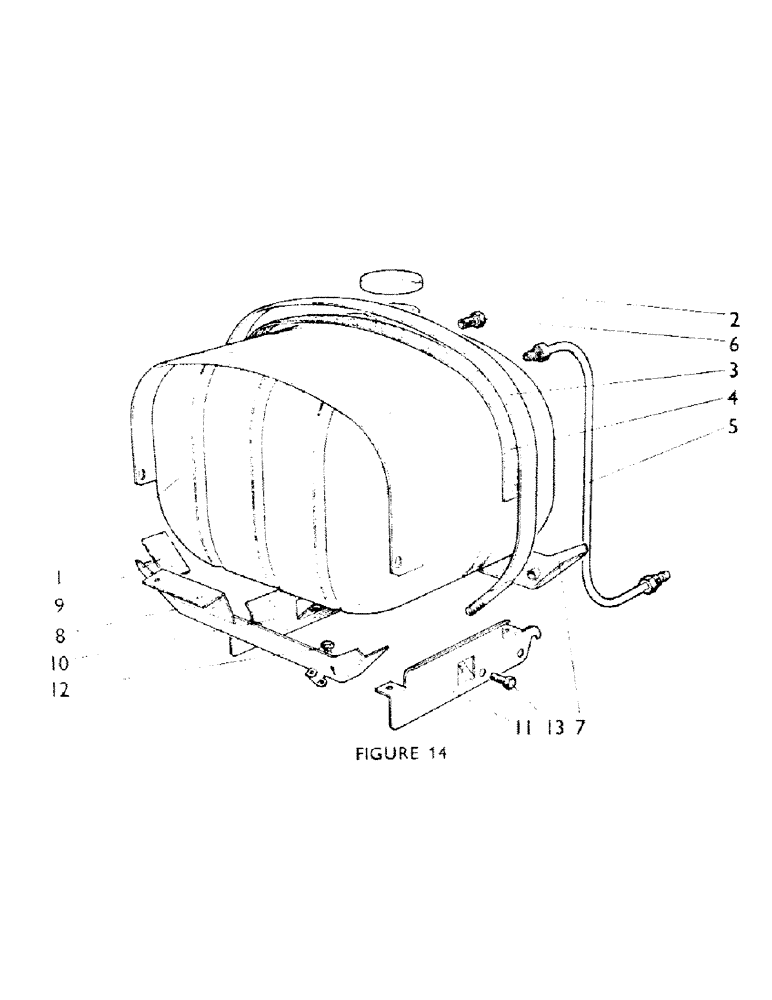

Запчасти Case IH 770B (023) - FUEL TANK AND FITTINGS (01) - ENGINE

1

K962143

FUEL TANK

TANK - fuel (with gauge aperture)

1шт.

1

K913335

NO LONGER SERVICED

TANK - fuel (without gauge aperture)

1шт.

K962140

PLATE

- blanking fuel gauge aperture

1шт.

K916485

GASKET

- blanking plate

1шт.

K617980

STUD

- No. 10 UNF x 11/16 in.

5шт.

K617080

NUT

- No. 10 UNF

5шт.

K626340

RING

- spring washer, 3/16 in.

5шт.

2

K901983

CAP

- filler

1шт.

K19591

PLUG

- drain, 1/8 BSP

1шт.

K16732

WASHER

- copper, 3/8 in.

1шт.

3

K912349

TANK

- strap

1шт.

4

K17721

PAD

- tank strap

1шт.

280136

NUT,3/8"-16, G8

2шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 UNC

2шт.

K622061

VALVE

- fuel tap optional equipment

1шт.

K626024

FITTING

- union optional equipment

1шт.

K626950

WASHER

- fibre, 1/2 in.

2шт.

K19501

WASHER

WASHER - fibre, 1/2 in.

1шт.

K626951

WASHER

- fibre, 7/16 in. O.D.

1шт.

5

K913388

PIPE

- fuel, tank to feed pump

1шт.

6

K620342

BANJO BOLT

- banjo, 1/8 BSP--leak-off to, AD3/30 tank

1шт.

K15030

WASHER

- copper, 3/8 in. AD3/30

2шт.

7

K913336

TANK

- support--front

1шт.

8

K920919

SUPPORT - tank, rear 588498 onward

1шт.

8

K913339

SUPPORT - tank, rear, Serial Range: 580001-588497

1шт.

9

K89449

PAD

- seating

4шт.

10

K913341

BRACKET

- support, left-hand

1шт.

11

K913342

TANK

- support bracket, right-hand

1шт.

12

K602702

SCREW

SETSCREW - 1/4 UNC x 5/8 in., Serial Range: supports-brackets

4шт.

K607000

NUT

- 1/4 UNC, Serial Range: supports-brackets

4шт.

K19480

SPRING WASHER

- spring, 1/4 in., Serial Range: supports-brackets

4шт.

K19470

WASHER

- 1/4 in., Serial Range: supports-brackets

2шт.

13

K602982

SCREW,3/8" - 16 x 3/4", Gr S

SETSCREW - 3/8 UNC x 3/4 in. brackets to frame (supersedes 602902)

4шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in., Serial Range: brackets-frame

4шт.
