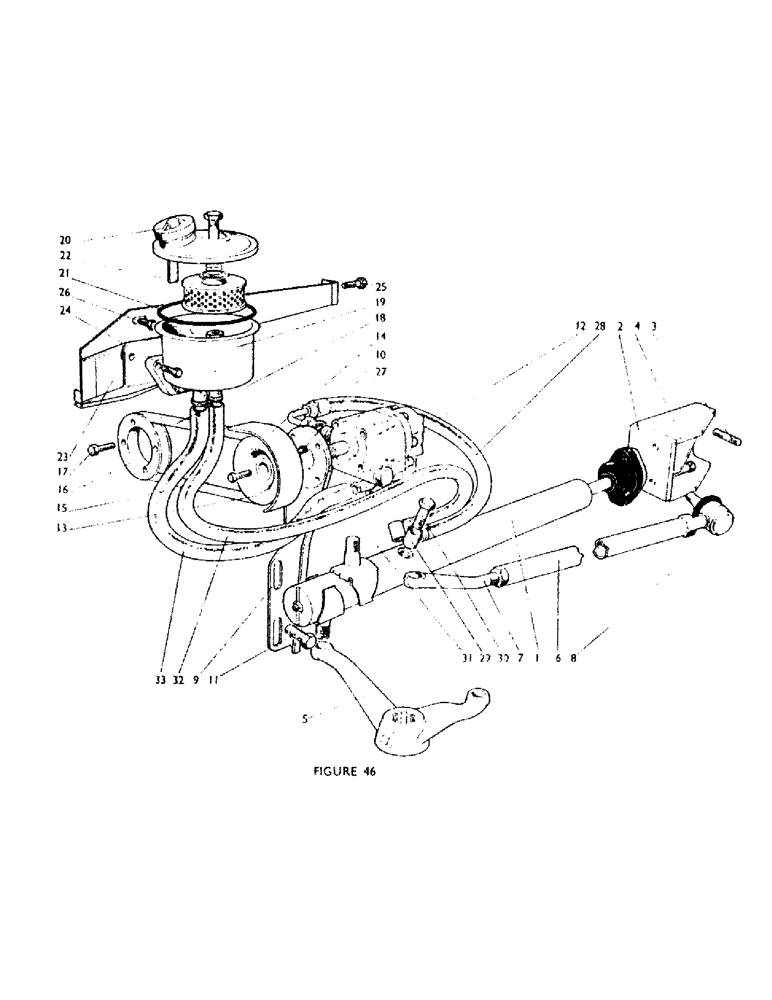

Запчасти Case IH 770B (074) - 911594 POWER-ASSISTED STEERING, U733, OPTIONAL EQUIPMENT Steering & Front Axle

1

K915483

CYLINDER

- hydraulic ram assembly (5/8 UNF connections), (see Fig. 76)

1шт.

2

K916335

SUPPORT

- anchor bracket

1шт.

3

K608608

SPARE PART

STUD - 5/8 UNC x 2 in., Serial Range: bracket-frame

4шт.

K19485

WASHER

- spring, 5/8 in., Serial Range: bracket-frame

4шт.

K607006

NUT

- 5/8 UNC, Serial Range: bracket-frame

4шт.

4

K600609

BOLT

- 7/16 UNC x 2 3/8 in., Serial Range: bracket-ram

2шт.

K19483

SPRING WASHER

- spring, 7/16 in., Serial Range: bracket-ram

2шт.

K11312

WASHER

- taper, Serial Range: bracket-ram

2шт.

280717

NUT,7/16"-14, G5

Bracket to ram 7/16"-14, G5

2шт.

5

K915575

LEVER - steering, left-hand

1шт.

K915479

LINK

- drag assembly

1шт.

6

K915478

LINK

- drag tube 915479

1шт.

7

K913593

LARGE PIN

PIN - large, eye end 915479

1шт.

K622520

NUT

LOCKNUT - special 915479

1шт.

8

K908071

BALL JOINT

- socket assembly 915479

1шт.

K19533

PIN

- split, 1/8 x 1 1/4 in.

1шт.

K19530

PIN

- split, 3/32 x 1 in.

1шт.

9

K916315

BRACKET

- support, pump

1шт.

10

K612705

SCREW

SETSCREW - 1/4 UNF x 1 in. bracket to pump, Serial Range: bracket-frame

4шт.

K19480

SPRING WASHER

- spring, 1/4 in. bracket to pump, Serial Range: bracket-frame

4шт.

11

K603306

BOLT

- setscrew, 5/8 UNC x 1 1/2 in., Serial Range: bracket-frame

2шт.

K19485

WASHER

- spring, 5/8 in., Serial Range: bracket-frame

2шт.

K19475

WASHER

- 5/8 in., Serial Range: bracket-frame

6шт.

12

K915578

PUMP

- assembly

1шт.

13

K913630

PULLEY

- pump

1шт.

14

K914787

NO LONGER SERVICED

GUARD - pulley

1шт.

K82664

KEY

- 1/8 x 1/8 x 13/16 in.

1шт.

15

K602803

BOLT

- setscrew, 5/16 UNC x 3/4 in.

1шт.

K904523

WASHER

- 5/16 in., special

1шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

1шт.

16

K916812

PULLEY

- rim

1шт.

17

K600005

BOLT

- 1/4 UNC x 1 3/8 in. pulley rim to crankshaft pulley

4шт.

K19480

SPRING WASHER

- spring, 1/4 in. pulley rim to crankshaft pulley

4шт.

18

K913631

BELT

V-BELT, Drive

1шт.

19

K919650

RESERVOIR

- assembly (see Fig. 78)

1шт.

20

K960841

CAP

- filler, dipstick 913626

1шт.

21

K960725

GASKET

- sealing ring--cover 913626

1шт.

22

K902187

FILTER

- element (identical with 960750--number change only), 913626

1шт.

23

K915474

NO LONGER SERVICED

BRACKET - support, reservoir

1шт.

24

K602705

SCREW

SETSCREW - 1/4 UNC x 1 in., Serial Range: bracket-reservoir

3шт.

K19480

SPRING WASHER

- spring, 1/4 in., Serial Range: bracket-reservoir

3шт.

25

K602902

SCREW

SETSCREW - 3/8 UNC x 3/4 in.

1шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in.

1шт.

K19472

WASHER

- 3/8 in.

1шт.

26

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SETSCREW - 1/4 UNC x 1/2 in.

1шт.

K19470

WASHER

- 1/4 in.

1шт.

K19480

SPRING WASHER

- spring, 1/4 in.

1шт.

K627014

SPACER

3шт.

27

K620010

ADAPTER

- pump outlet

1шт.

K623515

SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk

- washer, 5/8 in.

1шт.

28

K903042

HOSE

-, Serial Range: pump-ram

1шт.

29

K915584

BANJO BOLT

- banjo, 3/8 BSP

1шт.

30

K915586

PIN

- banjo bolt, 5/8 UNF

2шт.

K623515

SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk

- washer, 5/8 in.

4шт.

31

K915585

ADAPTER

- banjo

1шт.

32

K915502

HOSE

-, Serial Range: ram-reservoir

1шт.

K13069

HOSE

- clip, 3/4 in.

2шт.

33

K913632

HOSE

-, Serial Range: reservoir-pump

1шт.

K13070

HOSE

- clip, 7/8 in.

2шт.

K19928

CLIP

- buckle, 1/4 x 7 in.

1шт.
