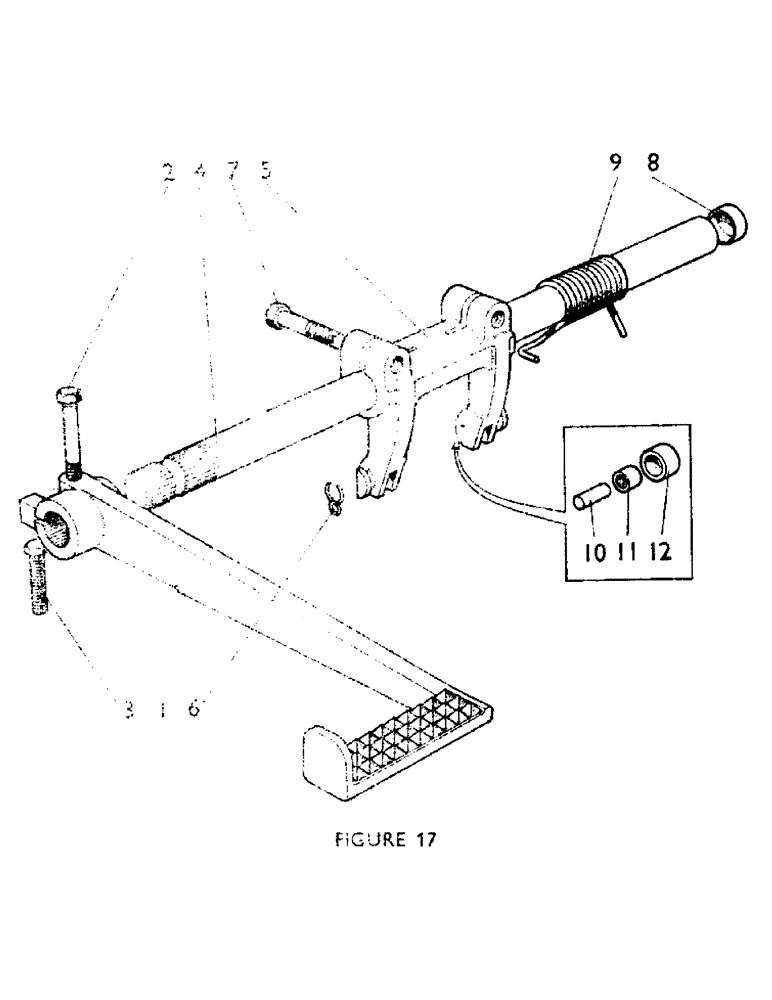

Запчасти Case IH 770A (028) - CLUTCH, FOOT CONTROL (03.1) - CLUTCH

1

K918700

CLUTCH

- pedal (supersedes 912409)

1шт.

2

K600408

BOLT,3/8" x 2"

- 3/8 UNC x 2 in.

1шт.

280136

NUT,3/8"-16, G8

1шт.

K19482

SPRING WASHER

WASHER - spring, 3/8 in.

1шт.

3

K602843

SCREW

- special, 5/16 UNC x 1 1/8 in.

1шт.

280736

NUT,5/16" - 18, Gr C

NUT, LOCK, 5/16"-18, GC

1шт.

4

K912050

CLUTCH

- cross shaft

1шт.

5

K913435

FORK - clutch

1шт.

6

K919664

SPRING

- clutch fork (replaces 89336)

2шт.

K19607

KEY

- Woodruff No. 506

2шт.

7

K600403

BOLT

- 3/8 UNC x 1 3/8 in.

2шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in.

2шт.

8

K89362

SEAL

- dirt excluder

1шт.

9

K914233

SPRING

1шт.

10

K900349

PIN

- pivot, clutch fork roller

2шт.

11

K620260

NEEDLE BEARING,Needle, 4.76mm ID x 8.73mm OD x 6.35mm W

BEARING - needle roller Livedrive

2шт.

12

K900348

ROLLER,8.72mm ID x 14.29mm OD x 6.35mm L

- clutch fork Livedrive

2шт.

12

K902085

ROLLER

- clutch fork Non-Livedrive

2шт.

K902086

BUSHING

- clutch roller Non-Livedrive

2шт.
