Запчасти Case IH 770A (088) - FRONT WHEELS (12) - CHASSIS

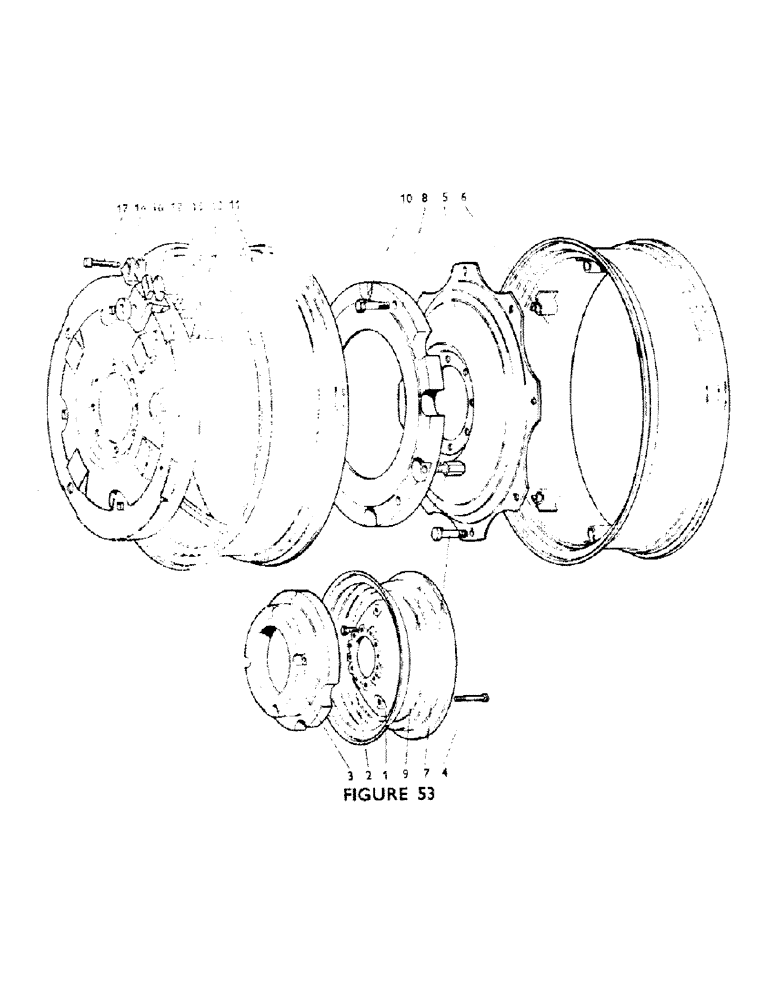

Схема запчастей Case IH 770A - (088) - FRONT WHEELS (12) - CHASSIS
7
5
1
8
3
10
11
2
9
6
17

Артикул

Название

Примечание

Количество

1

K914053

NO LONGER SERVICED

WHEEL - front (orchid white), 4.50E x 16 in. (fits 6.00 x 16 in. or 5.50 x 16 in. tyres) 582001 onward

2шт.

1

K907803

NO LONGER SERVICED

WHEEL - front (yellow), 4.50E x 16 in. (fits 6.00 x 16 in. or 5.50 x 16 in. tyres), Serial Range: 580001-581999

2шт.

2

K907400

WHEEL BOLT,1/2" - 13 x 1 1/8"

- wheel bolt, 1/2 UNC x 1 in.

12шт.

3

K909316

WEIGHT

- ballast U436 (907954)

2шт.

4

K600817

BOLT

- 1/2 UNC x 3 3/4 in. U436 (907954)

8шт.

K19484

LOCK WASHER

WASHER - lock, spring, 1/2 in. U436 (907954)

8шт.

K607004

NUT

- 1/2 UNC U436 (907954)

8шт.

K914255

NO LONGER SERVICED

RIM - rear, centre assembly (orchid white), W9 x 28 in. (fits 11.2/10 x 28 in. tyres), 582001 onward, wheel

2шт.

K906339

RIM

- rear, centre assembly (yellow), W9 x 28 in. (fits 11.2/10 x 28 in. tyres), 580001 to 581999, wheel

2шт.

5

K905284

WHEEL

- rear centre 914255 906339

1шт.

6

K67624

WHEEL

- rear rim 914255 906339

1шт.

7

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

- rim bolt, 5/8 UNF (supersedes, 914255 906339 611261) rear wheels

6шт.

K19475

WASHER

- 5/8 in. 914255 906339 rear wheels

6шт.

425-1110

NUT,5/8"-18, G5

914255, 906339, Rear wheels 5/8"-18, G5

6шт.

K914585

NO LONGER SERVICED

RIM - rear, centre assembly (orchid white), W11 x 28 in. (fits 12.4/11 x 28 in. tyres), 582001 onward, wheel

2шт.

K907308

NO LONGER SERVICED

RIM - rear, centre assembly (yellow), W11 x 28 ins. (fits 12.4/11 x 28 in. tyres) 580001 to 581999, wheel

2шт.

5

K905284

WHEEL

- rear centre 914585 907308

1шт.

6

K67980

WHEEL

- rear rim 914585 907308

1шт.

7

K611260

BOLT - rim, 5/8 UNF 914585 907308 rear wheels

6шт.

K19475

WASHER

- 5/8 in. 914585 907308 rear wheels

6шт.

425-1110

NUT,5/8"-18, G5

914585, 907308, Rear wheels 5/8"-18, G5

6шт.

K918978

RIM

- rear, centre assembly (orchid white), W12 x 24 in. (fits 14.9/13 x 24 in. tyres) (supersedes 914436), 582001 onward, wheel

2шт.

K907540

NO LONGER SERVICED

RIM - rear, centre assembly (yellow), W12 x 24 in. (fits 14.9/13 x 24 in. tyres) 580001 to 581999, wheel

2шт.

5

K918979

WHEEL DISC

DISC - wheel, rear rim (supersedes 907538) 918978 907540

1шт.

6

K907539

WHEEL

- rear centre 918978 907540

1шт.

7

K611261

BOLT

- rim, 5/8 UNF 918978 907540 rear wheels

6шт.

425-1110

NUT,5/8"-18, G5

918978, 907540, Rear wheels 5/8"-18, G5

6шт.

K19475

WASHER

- 5/8 in. 918978 907540 rear wheels

6шт.

8

K86167

WEIGHT

- ballast U729 (911480) rear wheels

4шт.

9

K914869

STUD

- special U729 (911480), rear wheels

6шт.

10

K19305

BOLT

- 5/8 BSF x 2 in. U729 (911480) rear wheels

6шт.

K19485

WASHER

- spring, 5/8 in. U729 (911480) rear wheels

6шт.

K611261

BOLT

- rim U729 (911480) rear wheels

6шт.

K917329

ASSEMBLY

- rear rim and centre assembly (power-adjusted), W11 x 28 in. (fits 12.4/11 x 28 in. tyres), 917329, wheel

2шт.

11

K917330

RIM

- rear wheel 917329

1шт.

12

K917326

CLAMP

- 917329 rear wheels

4шт.

13

K917327

WHEEL

- bolt, special 917329, rear

4шт.

K917328

WHEEL

- nut 917329, rear

4шт.

14

K918806

NO LONGER SERVICED

WASHER - special 917329, rear wheels

4шт.

15

K917731

SELECTOR

- rear wheel centre 917329

1шт.

16

K917346

NO LONGER SERVICED

STOP - 917329, rear wheels

2шт.

17

K917338

STOP

- screw, 917329, rear wheels

2шт.

K917570

WHEEL - rear rim and centre assembly (power-adjusted), 9 x 28 in. (fits 11.2/10 x 28, 917570 in. tyres)

2шт.

K917571

WHEEL - rear rim 917570

1шт.

K917339

PIN

- eccentric 917570, rear wheels

4шт.

K917340

SUPPORT

- body 917570, rear wheels

4шт.

K917341

RING

- snap 917570, rear wheels

4шт.

K917342

BLOCK

- 917570, rear wheels

4шт.

K917343

NO LONGER SERVICED

BOLT - coach 917570, rear wheels

8шт.

K917344

NO LONGER SERVICED

LOCKWASHER - 917570, rear wheels

8шт.

K917345

NUT

- 917570, rear wheels

8шт.

K917572

WHEEL - rear centre 917570

1шт.

K917337

STOP

- 917570, rear wheels

2шт.

K917338

STOP

- screw-- 917570, rear wheels

2шт.

Выбрано товаров: 54
