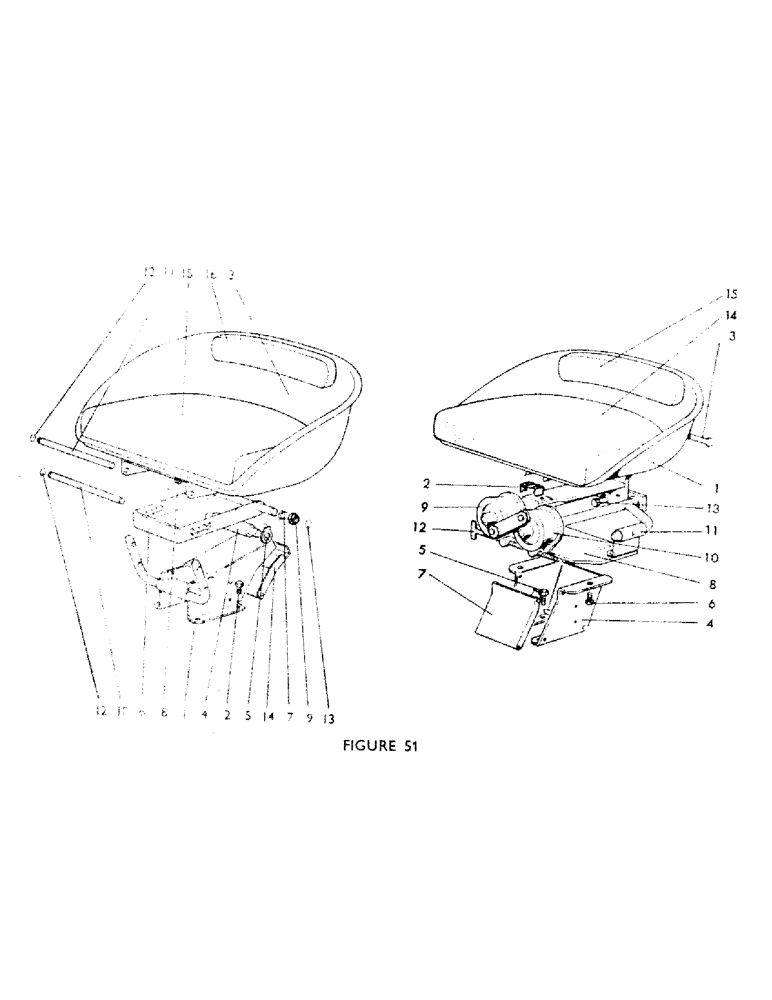

Запчасти Case IH 770A (084) - SEAT AND SUPPORT (12) - CHASSIS

1

K912124

SEAT

- support bracket

1шт.

2

K602902

SCREW

SETSCREW - 3/4 UNC x 3/4 in. support, Serial Range: bracket-axle

4шт.

K19482

SPRING WASHER

WASHER - spring, 3/8 in. support, Serial Range: bracket-axle

4шт.

3

K912128

SEAT

- pan

1шт.

4

K912782

ROLLER

1шт.

5

K912783

WASHER

TABWASHER

2шт.

6

K912133

LEVER

- adjusting

1шт.

7

K912136

SPRING

- torsion, left-hand

1шт.

8

K912137

SPRING

- torsion, right-hand

1шт.

9

K912138

BUSHING

- adjusting lever

1шт.

10

K912140

NO LONGER SERVICED

PIN - locating

1шт.

11

K912139

PIN

- pivot

1шт.

12

K621562

RING, SNAP

SNAP RING - circlip, 3/8 in., ext.

4шт.

13

K11302

RING, SNAP

SNAP RING - circlip, 1/2 in., ext.

2шт.

14

K914232

COVER

- seat support (chocolate brown), 582001 onward

1шт.

14

K912668

COVER - seat support (poppy red), Serial Range: 580001-581999

1шт.

K627817

NUT

- captive

1шт.

K624794

SCREW

- self-tapping

1шт.

15

K914230

CUSHION

- cover assembly 582001 onward

1шт.

K901468

NO LONGER SERVICED

CUSHION - 914230

1шт.

K914231

COVER

- (poppy red) 914230

1шт.

15

K901757

NO LONGER SERVICED

CUSHION - cover assembly, Serial Range: 580001-581999

1шт.

K901468

NO LONGER SERVICED

CUSHION - 901757

1шт.

K901469

NO LONGER SERVICED

COVER - (red) 901757

1шт.

16

K914228

BACKREST

- assembly 582001 onward

1шт.

K902094

PLATE

- 914228

1шт.

K690622

BOLT

- coach, 3/8 UNC x 1 in. 914228

2шт.

280136

NUT,3/8"-16, G8

- wing, 3/8 UNC 914228

2шт.

K19482

SPRING WASHER

WASHER - lockspring, 3/8 in. 914228

2шт.

K902095

PAD - 914228

1шт.

K914229

X

COVER - (poppy red) 914228

1шт.

16

K906094

NO LONGER SERVICED

BACKREST - assembly, Serial Range: 580001-581999

1шт.

K902094

PLATE

- 906094

1шт.

K690622

BOLT

- coach, 3/8 UNC x 1 in. 906094

2шт.

280136

NUT,3/8"-16, G8

- wing, 3/8 UNC 906094

2шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in. 906094

2шт.

K902095

PAD - 906094

1шт.

K901668

NO LONGER SERVICED

COVER - (red) 906094

1шт.

1

K913889

PAN

- seat, deluxe suspension seat (U691), (optional equipment)

1шт.

2

K914946

TONGS

- clip, deluxe suspension seat (U691), (optional equipment)

1шт.

K691438

RIVET - 3/16 x 3/8 in., deluxe suspension seat (U691), (optional equipment)

2шт.

3

K913892

PIN

- hinge, deluxe suspension seat (U691), (optional equipment)

1шт.

K607327

NUT

- Nyloc, 3/8 UNC, deluxe suspension seat (U691), (optional equipment)

1шт.

4

K913859

BRACKET - support, deluxe suspension seat (U691), (optional equipment)

1шт.

5

K602982

SCREW,3/8" - 16 x 3/4", Gr S

SETSCREW - 3/8 UNC x 3/4 in. support bracket to axle, deluxe suspension seat (U691), (optional equipment)

4шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in. support bracket to axle, deluxe suspension seat (U691), (optional equipment)

4шт.

6

K603050

SCREW

SETSCREW - 7/16 UNC x 1 in., deluxe suspension seat (U691), (optional equipment)

2шт.

280717

NUT,7/16"-14, G5

Deluxe suspension seat (U691), (Optional equipment) 7/16"-14, G5

2шт.

K626314

WASHER

- 7/16 in., deluxe suspension seat (U691), (optional equipment)

2шт.

K626344

WASHER, LOCK

WASHER - lock, spring, 7/16 in., deluxe suspension seat (U691), (optional equipment)

2шт.

7

K914128

COVER ASSY

- support bracket (chocolate brown), deluxe suspension seat (U691), (optional equipment)

1шт.

8

K913843

SEAT

- suspenion assembly, deluxe suspension seat (U691), (optional equipment)

1шт.

9

K962054

SPRING

- torsion rubber, right-hand 913843, deluxe suspension seat (U691), (optional equipment)

1шт.

10

K962056

SPRING - torsion rubber, left-hand 913843, deluxe suspension seat (U691), (optional equipment)

1шт.

K915917

COVER - torsion rubber 913843, deluxe suspension seat (U691), (optional equipment)

2шт.

11

K962144

SPRING

S - leaf (with bushes) 913843, deluxe suspension seat (U691), (optional equipment)

2шт.

K962294

BUSHING

- leaf spring 913843, deluxe suspension seat (U691), (optional equipment)

2шт.

K690579

NO LONGER SERVICED

PIN - spring, 1/4 x 1 1/4 in. 913843, deluxe suspension seat (U691), (optional equipment)

4шт.

12

K962265

STUD

- adjusting 913843, deluxe suspension seat (U691), (optional equipment)

1шт.

13

K602903

SCREW

SETSCREW - 3/8 UNC x 7/8 in. 913843, deluxe suspension seat (U691), (optional equipment)

2шт.

280136

NUT,3/8"-16, G8

913843, Deluxe suspension seat (U691), (Optional equipment) 3/8"-16, G8

2шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in. 913843, deluxe suspension seat (U691), (optional equipment)

2шт.

14

K913976

CUSHION

- cover assembly, deluxe suspension seat (U691), (optional equipment)

1шт.

K913895

NO LONGER SERVICED

CUSHION - 913976, deluxe suspension seat (U691), (optional equipment)

1шт.

K913977

NO LONGER SERVICED

COVER - (poppy red) 913976, deluxe suspension seat (U691), (optional equipment)

1шт.

15

K913978

BRACKET

- assembly, deluxe suspension seat (U691), (optional equipment)

1шт.

K913898

PLATE - 913978, deluxe suspension seat (U691), (optional equipment)

1шт.

K913899

PAD - 913978, deluxe suspension seat (U691), (optional equipment)

1шт.

K913979

COVER

- (poppy red) 913978, deluxe suspension seat (U691), (optional equipment)

1шт.

K614583

SETSCREW - 5/16 UNF x 1/2 in. backrest to seat, deluxe suspension seat (U691), (optional equipment)

2шт.

K11517

WASHER

- shakeproof, 5/16 in. backrest to seat, deluxe suspension seat (U691), (optional equipment)

2шт.
