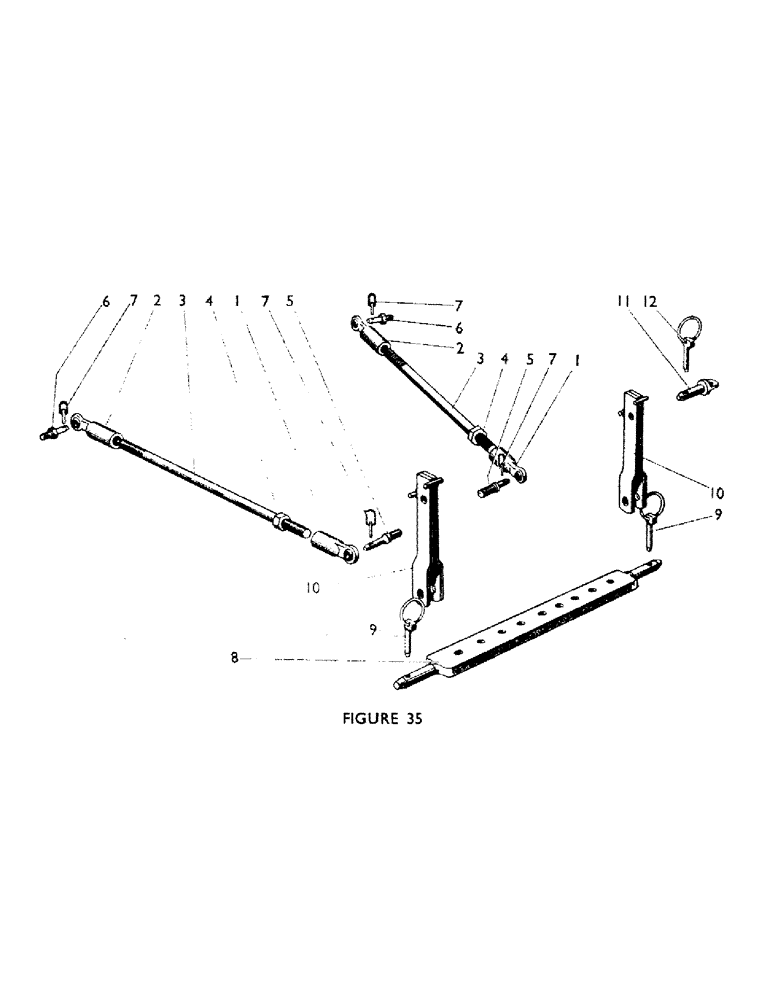

Запчасти Case IH 770A (058) - 922282 STABILISER BARS, U1179, TWO-BAR SET, 911368, OPTIONAL EQUIPMENT, U628, SINGLE-BAR SET (07) - HYDRAULIC SYSTEM

K921690

STABILIZER

- assembly--lower link (supersedes 912229)

2шт.

1

K912232

BALL

- housing--rear, right-hand, 921690 thread

2шт.

2

K912230

BALL

- housing--front, left-hand, 921690 thread

2шт.

3

K912234

SCREW,3/4" - 10 x 2 1/4"

- bar 921690

2шт.

4

K607057

NUT

LOCKNUT - 3/4 UNC 921690

2шт.

5

K912228

PIN

- large, 5/8 UNC--rear

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

Replaces 607006 5/8"-11, G5

2шт.

K19485

WASHER

- spring, 5/8 in.

2шт.

K907008

PIN

- large, 3/4 UNC--front 587947 onward

2шт.

K627114

COLLAR - 587947 onward

2шт.

6

K915136

PIN

- 5/8 UNC--front, Serial Range: 580001-587946

1шт.

7

K920359

PIN

- linch, ring (replaces, 580001 to 587946 900139)

4шт.

K85782

LINKAGE DRAWBAR (U291) (Optional Equipment)

1шт.

8

K902280

LINKAGE

- drawbar

1шт.

9

K920359

PIN

- linch, ring (supersedes 900139)

2шт.

10

K902281

EXTENSION - lift rod

2шт.

11

K903399

HITCH PIN

PIN - large, link

2шт.

12

K66408

PIN

- linch, ring

2шт.
