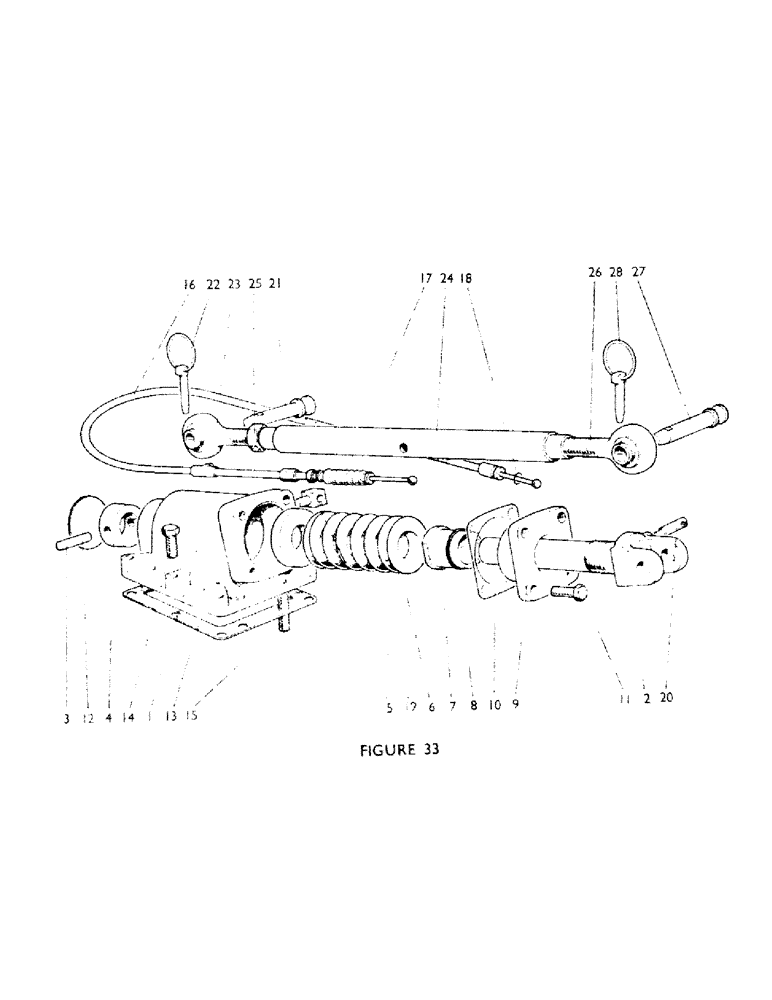

Запчасти Case IH 770A (055) - SENSING UNIT AND TOP LINK (07) - HYDRAULIC SYSTEM

1

K915268

HOUSING

- double-acting sensing unit (583397 onward)

1шт.

1

K914545

HOUSING - single-acting sensing unit, Serial Range: (580001-583396)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, Double-acting sensing unit (583397 onward) 1/4"-28 NPT x .54" lg

1шт.

2

K915258

SHAFT

- double-acting sensing unit (583397 onward)

1шт.

2

K913850

SHAFT - single-acting sensing unit, Serial Range: (580001-583396)

1шт.

3

K915117

PIN

- retaining, double-acting sensing unit (583397 onward)

1шт.

3

K915117

PIN

- retaining, single-acting sensing unit, Serial Range: (580001-583396)

1шт.

4

K915266

COLLAR

- double-acting sensing unit (583397 onward)

1шт.

5

K915101

WASHER

- thrust, .375 in. alternatives, double-acting sensing unit (583397 onward)

1шт.

5

K915112

WASHER

- thrust, .355 in. alternatives, double-acting sensing unit (583397 onward)

1шт.

5

K915113

WASHER

- thrust, .365 in. alternatives, double-acting sensing unit (583397 onward)

1шт.

5

K915114

WASHER

- thrust, .385 in. alternatives, double-acting sensing unit (583397 onward)

1шт.

5

K915115

WASHER

- thrust, .395 in. alternatives, double-acting sensing unit (583397 onward)

1шт.

5

K915116

WASHER

- thrust, .405 in. alternatives, double-acting sensing unit (583397 onward)

1шт.

6

K915263

SPRING

- double-acting sensing unit (583397 onward)

1шт.

6

K903175

SPRING - single-acting sensing unit, Serial Range: (580001-583396)

1шт.

K914675

NO LONGER SERVICED

SHIELD - dirt, single-acting sensing unit, Serial Range: (580001-583396)

1шт.

7

K915262

SLEEVE

- double-acting sensing unit (583397 onward)

1шт.

8

K623556

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- 1 7/8 in. int. dia., double-acting sensing unit (583397 onward)

1шт.

9

K915261

FLANGE

- end plate, double-acting sensing unit (583397 onward)

1шт.

11

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW - 3/8 UNC x 1 1/8 in., double-acting sensing unit (583397 onward)

4шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in., double-acting sensing unit (583397 onward)

4шт.

12

K623813

PLUG

- welch, 2 3/8 in., double-acting sensing unit (583397 onward)

1шт.

13

K923471

GASKET

- (replaces 913640

1шт.

14

K600205

BOLT

- setscrew, 5/16 UNC x 1 1/2 in. housing to PTO case

6шт.

15

K608120

STUD

- 5/16 UNC x 1 3/8 in. housing to PTO case

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC housing to PTO case

2шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

8шт.

16

K912373

CABLE

- assembly

1шт.

17

K906182

RUBBER

- dirt excluder 912373

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 912373 1/4"-28 NPT x .54" lg

1шт.

18

K14658

O-RING,0.07" Thk x 0.239" ID

- 1/4 in. int. dia.

1шт.

19

K912371

CABLE

- support--outer

1шт.

20

K913852

LARGE PIN

PIN - large, cable support--inner

1шт.

21

K912936

PIN

- large, link

1шт.

22

K66408

PIN

- linch, ring

1шт.

K914773

TURNBUCKLE

- top link assembly

1шт.

23

K912362

SCREW

- housing--front 914773

1шт.

24

K912358

TUBE

- turnbuckle 914773

1шт.

25

K607059

NUT

LOCKNUT - 1 in. UNC 914773

1шт.

26

K912365

SCREW

- housing--rear 914773

1шт.

27

K903981

HITCH PIN

PIN - large, link

1шт.

28

K920359

PIN

- linch, ring (replaces 62995)

1шт.
