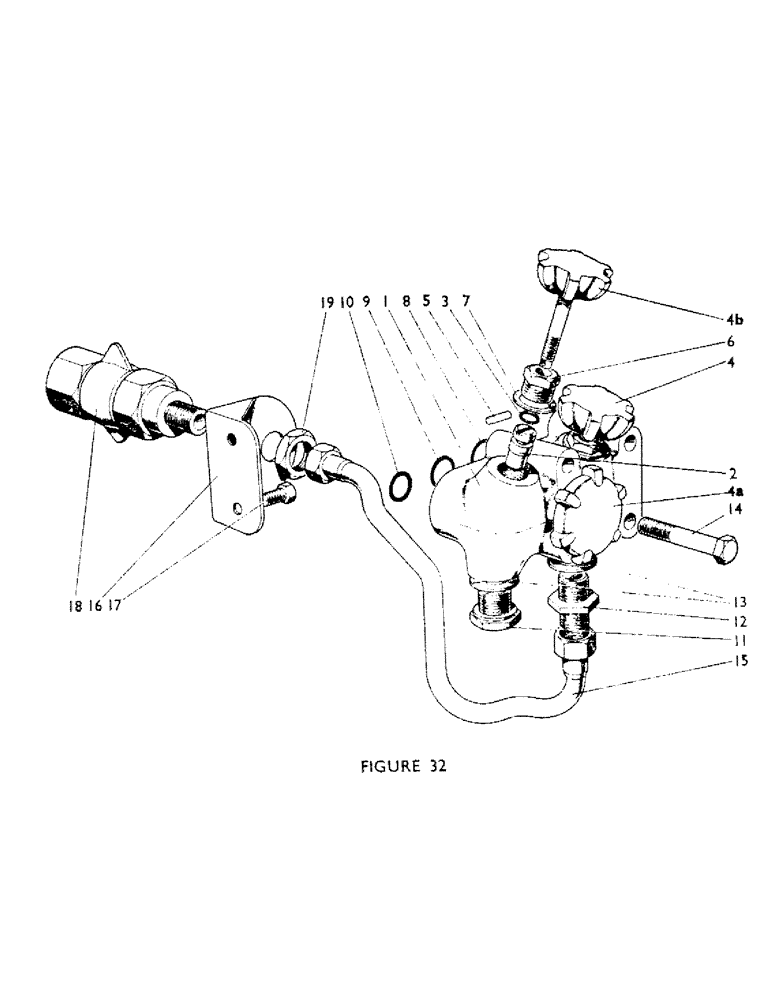

Запчасти Case IH 770A (054) - 911132, U578, WITH EXACTOR COUPLING, 961768 THREE-WAY SELECTOR VALVE, LESS EXACTOR COUPLING (07) - HYDRAULIC SYSTEM

K912826

SPARE PART

VALVE - selector assembly

1шт.

1

K911996

VALVE BODY - 912826

1шт.

2

K901868

PLUNGER

- 912826

3шт.

3

K623534

O-RING,0.352" OD x 0.103" Width

- 912826

3шт.

4

K912825

HANDWHEEL - spindle 912826

1шт.

4a

K914419

KNOB

- handwheel and spindle 912826

1шт.

4b

K914589

HANDWHEEL

- spindle 912826

1шт.

5

K623730

PIN

- Mills, 1/8 x 1/2 in. 912826

3шт.

6

K901870

BUSHING, LARGE

BUSHING - large, screwed 912826

3шт.

7

K15143

WASHER

- rolled copper, 7/8 in. 912826

3шт.

8

K15028

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

- 7/8 in. int. dia.--valve body

1шт.

9

K24555

O-RING,0.737" ID x 0.943" OD x 0.103"

- 3/4 in. int. dia.--body to cylinder inlet

1шт.

10

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- 5/8 in. int. dia.--body to pipe

1шт.

11

K24850

WASHER

- flanged plug

1шт.

12

K30100

UNION

WASHER - special union

1шт.

13

K626783

WASHER

- sealing

2шт.

14

K600416

BOLT

- 3/8 UNC x 3 in.

4шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in.

4шт.

15

K917321

PIPE

- valve to coupling (supersedes 912808)

1шт.

16

K913927

NO LONGER SERVICED

BRACKET - coupling

1шт.

17

K602840

SCREW

SETSCREW - 5/16 UNC x 1/2 in. bracket to seat support

2шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in. bracket to seat support

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC bracket to seat support

2шт.

18

K34087

COUPLING

- Exactor

1шт.

19

K19647

NUT

LOCKNUT - 1/2 in. BSP

1шт.

K960657

BREAKER POINTS

COUPLING - break away, dust cover--Exactor

1шт.
