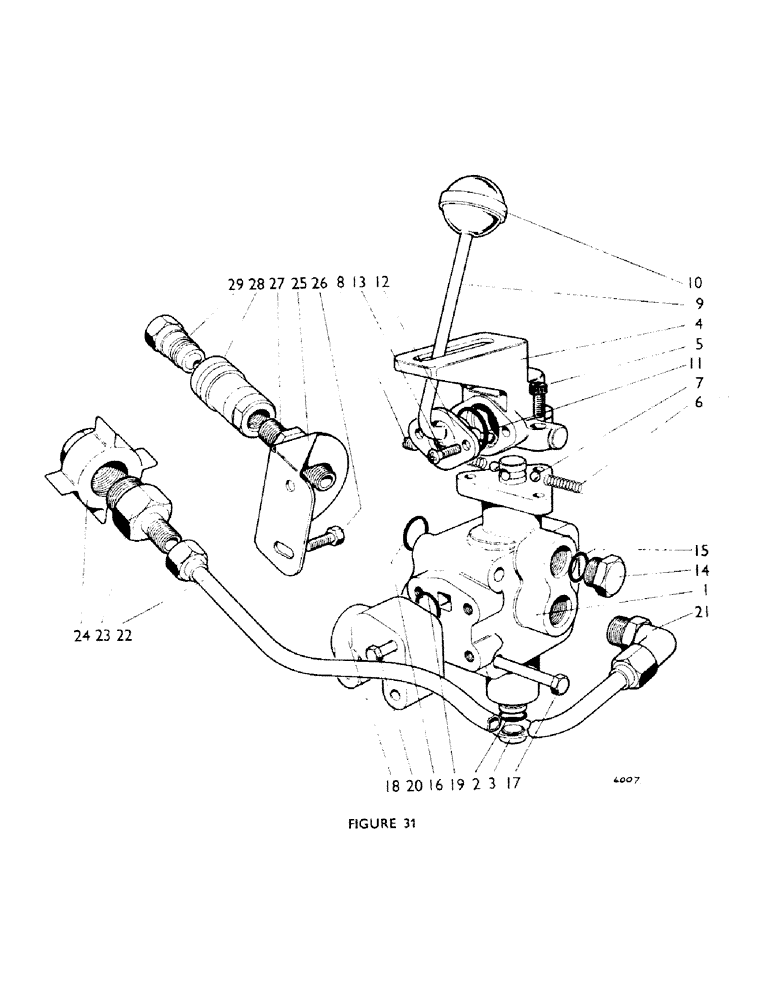

Запчасти Case IH 770A (052) - 918359, U1053, W/ EXACTOR COUPLING, 918522 THREE-WAY SELECTOR VALVE, U1121, W/QUICK-RELEASE COUPLING (07) - HYDRAULIC SYSTEM

1

K919825

NO LONGER SERVICED

VALVE - assembly

1шт.

2

K24779

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

- 7/16 in. int. dia. 919825

2шт.

3

K919826

BREATHER

- 919825

1шт.

4

K919611

COVER

- 919825

1шт.

5

K606501

SCREW

- 1/4 UNC x 5/8 in. 919825

3шт.

6

K625208

SPRING

- 919825

2шт.

7

K17063

BALL

- steel, 1/4 in. 919825

2шт.

8

K606020

SCREW

GRUBSCREW - 5/16 x 1/4 in. 919825

1шт.

9

K919612

LEVER

- 919825

1шт.

10

K902270

KNOB

- 919825

1шт.

11

K16351

O-RING,3.53mm Thk x 24.99mm ID

- 1 in. int. dia. 919825

1шт.

12

K919613

SHIM

- plate 919825

1шт.

13

K614924

SCREW

- 10 UNF x 1/2 in. 919825

2шт.

K19488

SPRING WASHER

- spring, 3/8 in. 919825

2шт.

14

K920826

O-RING

- plug, 3/4 UNF

2шт.

15

K623589

O-RING

- 5/8 in. int. dia.

2шт.

16

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

- 3/4 in. int. dia.

2шт.

17

K600416

BOLT

- 3/8 UNC x 3 in.

4шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in.

4шт.

18

K919614

ADAPTER

1шт.

19

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16 in. int. dia.

1шт.

20

K600208

BOLT

- 5/16 UNC x 1 7/8 in.

3шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

3шт.

21

K622114

FITTING

- elbow, 3/4 UNF

1шт.

22

K921403

FITTING

-, Serial Range: pipe--valve-coupling

1шт.

23

K921964

COUPLING, BREAK AWAY

COUPLING - break away, Exactor (tractor half)

1шт.

K960657

BREAKER POINTS

COUPLING - break away, dust cover--Exactor coupling

1шт.

24

K627920

CONNECTOR, ELEC

CONNECTOR - Exactor coupling (hose half)

1шт.

25

K922622

BRACKET

1шт.

26

K602840

SCREW

SETSCREW - 5/16 UNC x 1/2 in.

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

2шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

2шт.

27

K921178

ADAPTER

- 1/2 BSP

1шт.

28

K921126

QUICK - release coupling (tractor half)

1шт.

K921217

PLUG

- dust cover

1шт.

K626783

WASHER

- sealing, 7/8 in.

1шт.

K19647

NUT

LOCKNUT - 1/2 BSP

1шт.

29

K921982

BREAKER POINTS

COUPLING - break away, quick-release (hose half) U1122 (918520) (universal coupling)

1шт.

K15737

SEALING WASHER

WASHER - sealing, 5/8 in. U1122 (918520) (universal coupling)

1шт.

K627134

SPACER

- distance piece U1122 (918520) (universal coupling)

1шт.

K921694

COUPLING - Exactor (tractor half) U1122 (918520) (universal coupling)

1шт.

29

K921982

BREAKER POINTS

COUPLING - break away, quick-release (hose half) U1123 (918521) (universal coupling)

1шт.

K15737

SEALING WASHER

WASHER - sealing, 7/8 in. U1123 (918521) (universal coupling)

2шт.

K627134

SPACER

- distance piece U1123 (918521) (universal coupling)

1шт.

K921984

COUPLING, BREAK AWAY

COUPLING - break away, Dowty coupling (tractor half) U1123 (918521) (universal coupling)

1шт.

K919845

PRODUCT GRAPHIC

- transfer--lever positions

1шт.
