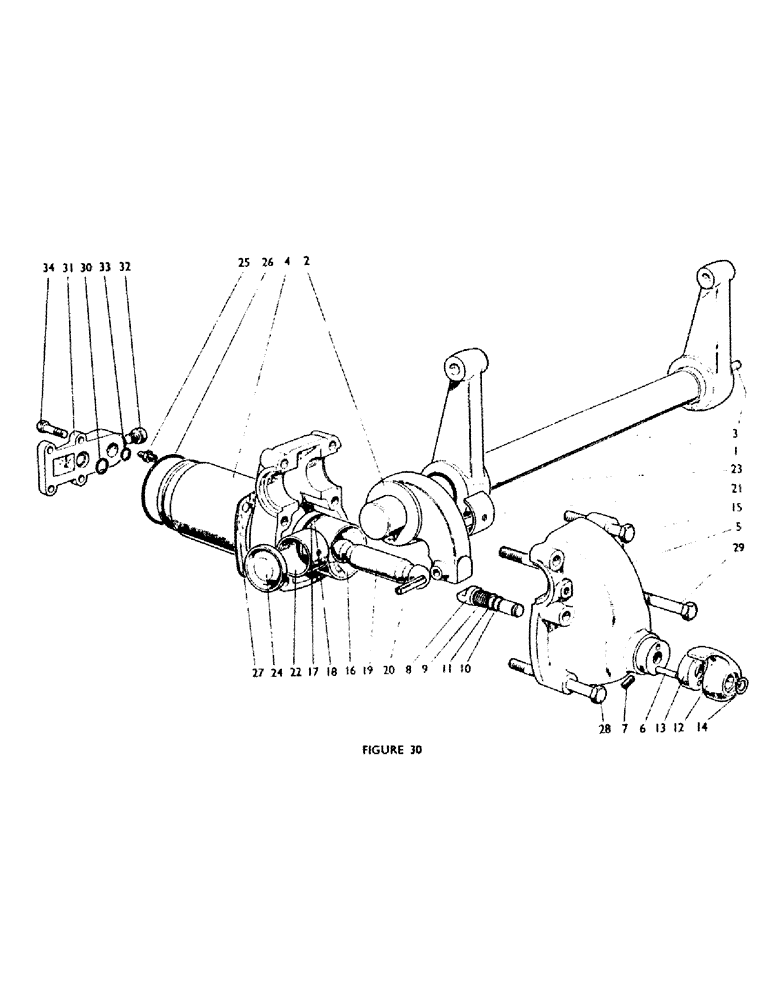

Запчасти Case IH 770A (050) - RAMSHAFT AND RAM CYLINDER (07) - HYDRAULIC SYSTEM

1

K917137

SHAFT

RAMSHAFT - levers 583397 onward

1шт.

1

K912235

RAMSHAFT - levers, Serial Range: 580001-583396

1шт.

2

K906796

ARM

- ram lever 917137 912235

1шт.

K622381

KEY

- 917137 912235

2шт.

3

K621807

PIN

- pivot (replaces 909600) 917137 912235

1шт.

4

K961748

CYLINDER

- body and cover assembly

1шт.

5

K961742

COVER

- lift lock assembly replaces 24556 961748

1шт.

6

K620027

NEEDLE

- roller 961742 replaces 24556 961748

2шт.

7

K606052

SET SCREW,Hex Skt, 5/16" - 18 x 3/4"

- locating 961742 replaces 24556 961748

1шт.

8

K913846

PIN

- large, latch pin 961742 replaces 24556 961748

1шт.

9

K913436

SPRING

- 961742 replaces 24556 961748

1шт.

10

K623654

RING

- sealing, 3/4 in. int., replaces 24556 961748 dia.--latch pin 961742

1шт.

11

K907061

BUSHING

- spacer ring 961742 replaces 24556 961748

1шт.

12

K920625

LEVER

ASSY. - operating 961742 replaces 24556 961748

1шт.

K626210

SHIM,.030" Thk

961742 replaces 24556 961748 .030" Thk

1шт.

13

K913724

DUST CAP

- dirt excluder 961742 replaces 24556 961748

1шт.

14

K11290

RING, SNAP

SNAP RING - circlip, 3/4 ext. 961742 replaces 24556 961748

2шт.

15

K600816

BOLT

- 1/2 UNC x 3 1/2 in. (replaces, replaces 24556 961748 600816)

2шт.

K607004

NUT

- 1/2 UNC replaces 24556 961748

2шт.

K11518

WASHER

LOCKWASHER - 1/2 in. replaces 24556 961748

2шт.

16

K907502

PISTON

- insert

1шт.

17

K623542

O-RING,0.21" Thk x 2.725" ID, -335, Cl 5, 75 Duro

- 2 3/4 in. int. dia.--piston

1шт.

18

K628050

RING,69.6mm ID x 79.65mm OD x 2.64mm Thk

- anti-extrusion

1шт.

19

K910106

ROD

- connecting

1шт.

20

K623920

SPLIT PIN/SAFETY PIN

SPLIT PIN - safety and spring pin, 1/4 x 1 7/8 in.

1шт.

21

K912013

BEARING HALF,50.22mm ID x 54.52mm OD x 30.63mm W

BEARING - liner (halves)

2шт.

22

K912012

BUSHING

1шт.

23

K623538

O-RING,6.99mm Thk x 50.16mm ID, 60 Duro

- 2 in. int. dia.--ramshaft

1шт.

24

K30061

COVER

- sealing disc

1шт.

25

K910104

SCREW

- bleeder

1шт.

K11286

BALL

- 5/16 in.

1шт.

26

K623566

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

- 3 7/8 in. int. dia.--cylinder body

1шт.

27

K922519

SPARE PART

GASKET - (supersedes 913768)

1шт.

28

K600822

BOLT

- 1/2 UNC x 5 in.

2шт.

K11518

WASHER

LOCKWASHER - 1/2 in.

2шт.

29

K601274

BOLT

- 5/8 UNC x 12 1/2 in.

2шт.

K623515

SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk

- washer, 5/8 in.

2шт.

K11516

WASHER

- shakeproof, 5/8 in.

2шт.

K607006

NUT

- 5/8 UNC

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

30

K24555

O-RING,0.737" ID x 0.943" OD x 0.103"

- 3/4 in. int. dia.--connector to cylinder

1шт.

31

K910107

HYD CONNECTOR

CONNECTOR - hyd.

1шт.

32

K619527

PLUG

- 1/2 UNF

1шт.

K15735

WASHER

- sealing, 1/2 in.

1шт.

33

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- 5/8 in. int. dia.--connector to pipe

1шт.

34

K600404

BOLT

- 3/8 UNC x 1 1/2 in.

4шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in.

4шт.
