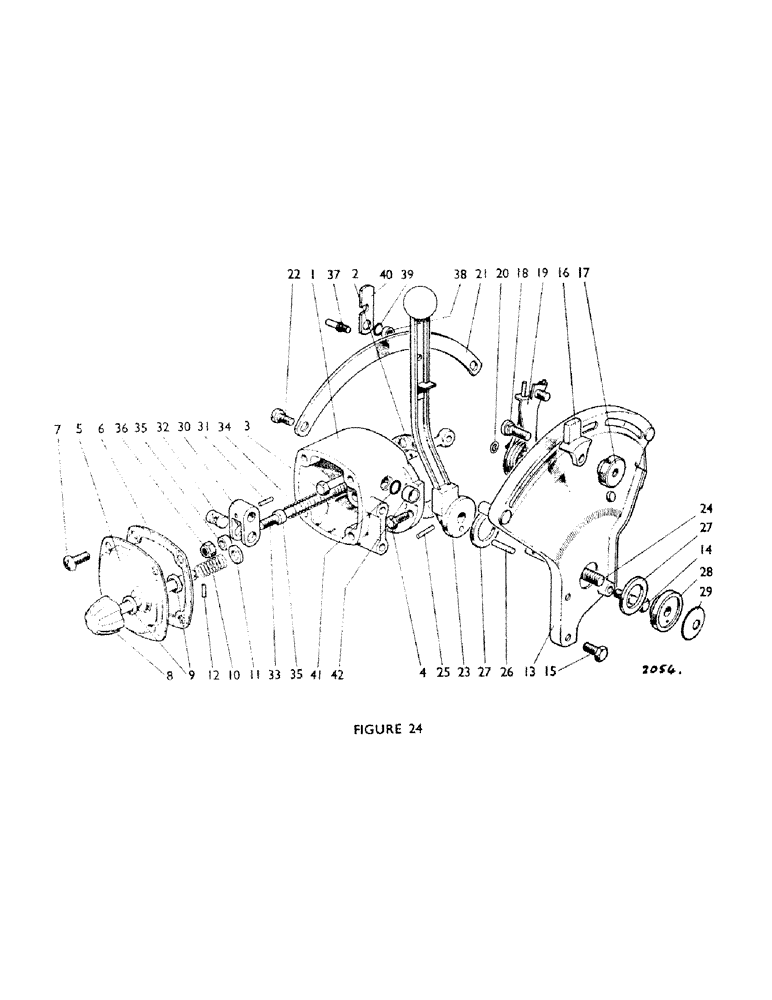

Запчасти Case IH 770A (040) - CONTROL LEVER AND QUADRANT (07) - HYDRAULIC SYSTEM

1

K913745

HOUSING

1шт.

2

K903026

GASKET

- housing to axle case

1шт.

3

K600217

BOLT

- 5/16 UNC x 3 in. housing to axle case

1шт.

4

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1 in. housing to axle case

2шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in. housing to axle case

3шт.

5

K910860

WASHER

- cover

1шт.

6

K909559

GASKET,1.59mm Thk

-, Serial Range: cover-housing

1шт.

7

K604477

SCREW

- 5/16 UNC x 5/8 in. cover to housing (replaces 603943)

4шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in., Serial Range: cover-housing

4шт.

8

K910721

KNOB

1шт.

9

K909573

DISC

- friction

2шт.

10

K24887

SPRING

1шт.

11

K19472

WASHER

- 3/8 in.

1шт.

12

K623930

SPRING

- pin, 1/8 x 3/4 in.

1шт.

13

K913263

QUADRANT

1шт.

14

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW - 5/16 UNC x 1 1/8 in. special, quadrant to housing

1шт.

15

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW - 5/16 UNC x 3/4 in. special, quadrant to housing

2шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in., Serial Range: quadrant-housing

3шт.

16

K913082

ELECTRICAL GAUGE

GAUGE - electrical, finger guide

2шт.

17

K921826

SERRATED NUT

- hand, 5/16 UNF (replaces 909576)

2шт.

18

K909577

STUD

- 5/16 UNF, special

2шт.

19

K913935

SPRING

- carrier plate

1шт.

20

K624582

RETAINER

- clip carrier, Serial Range: plate-quadrant

1шт.

K19470

WASHER

- 1/4 in. carrier, Serial Range: plate-quadrant

1шт.

K626682

WASHER

- 5/16 in. carrier, Serial Range: plate-quadrant

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC carrier plate to quadrant

1шт.

21

K913637

STOP

- abutment plate

1шт.

22

K604575

SCREW

- 5/16 UNC x 5/8 in., Serial Range: plate-quadrant

2шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in., Serial Range: plate-quadrant

2шт.

23

K913268

LEVER

- control

1шт.

24

K909581

SHAFT

1шт.

25

K623942

PIN

- spring, 5/32 x 1 1/4 in.

1шт.

26

K621811

PIN

- dowel

2шт.

27

K909582

WASHER

- friction

2шт.

28

K909583

PLATE

- friction

1шт.

29

K626740

WASHER

- Belleville

1шт.

K626686

WASHER

- 1/2 in.

1шт.

86632558

JAM NUT,Jam, 1/2"-13, G5

LOCKNUT - 1/2 UNC

1шт.

K607804

NUT

- capped, 1/2 UNC

1шт.

30

K909584

FORK

1шт.

31

K623940

PIN

- spring, 5/32 x 1 in.

1шт.

32

K903370

PIN

1шт.

33

K909585

ROD

- connecting

1шт.

34

K625161

SPRING

1шт.

35

K903367

COLLAR

2шт.

36

231-1435

LOCK NUT,5/16"-18, GB

NUT - Nyloc, 5/16 UNC

1шт.

K915178

DECAL

- instruction plate--quadrant

1шт.

K917242

DECAL

- instruction plate--lowering control (supersedes 915176)

1шт.

K624090

RIVET

- 1/8 x 5/16 in.

2шт.

37

K914834

STUD

- 1/4 UNC, special U730 (911471) (catch unit)

1шт.

K607514

NUT

- 1/4 UNC (replaces 607080) U730 (911471) (catch unit)

1шт.

38

K914835

BUSHING

- U730 (911471) (catch unit)

1шт.

39

K900380

O-RING,0.487" ID x 0.693" OD x 0.103"

- 1/2 in. int. dia. U730 (911471) (catch unit)

1шт.

40

K914833

WASHER

- catch U730 (911471) (catch unit)

1шт.

K626682

WASHER

- 5/16 in. U730 (911471) (catch unit)

1шт.

41

K623424

RING

- sealing, 1/2 in. int. dia.

1шт.

42

K627068

BUSHING

- plastic sleeve

1шт.
