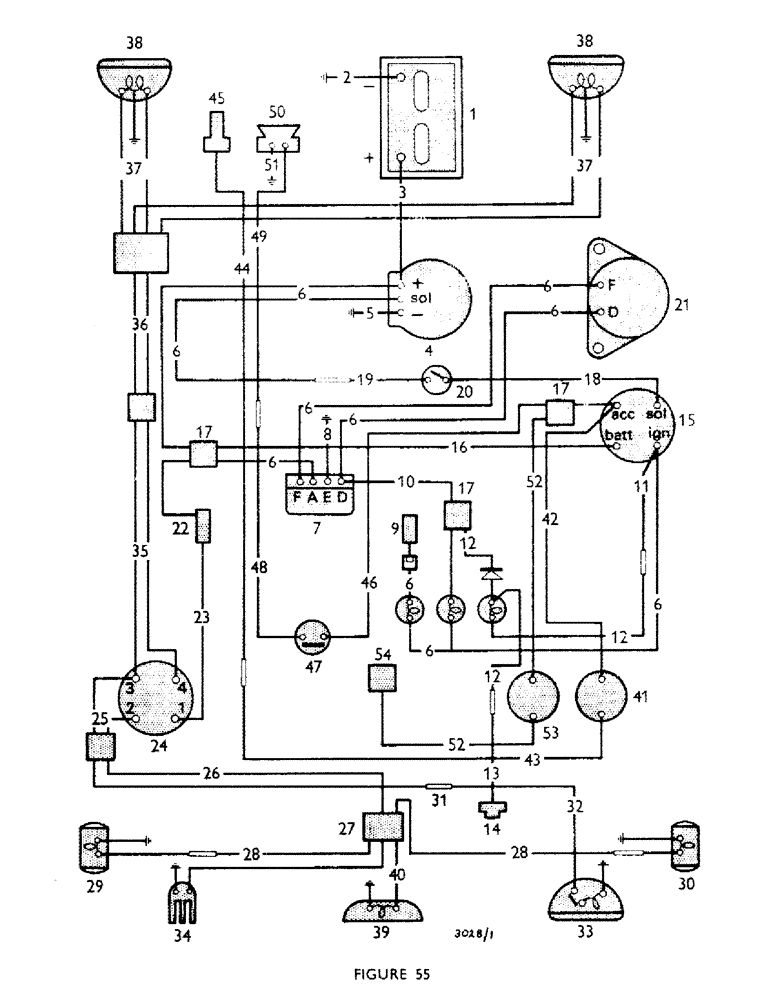

Запчасти Case IH 770A (094) - ELECTRICAL EQUIPMENT, TRACTOR 580001 TO 588497 (06) - ELECTRICAL SYSTEMS

1

K907789

BATTERY

- 12 volt (Exide 6/TXMZ 15L)

1шт.

K912892

COVER

- battery

1шт.

K909760

CLAMP

- battery fixing to main frame

1шт.

K908394

BUSHING

- seating pad battery fixing to main frame

1шт.

K913957

STUD

- clamping battery fixing to main frame

2шт.

K24892

RATCHET

- plate, 1/4 in. battery fixing to main frame

2шт.

K19435

NUT

- wing, 1/4 BSF battery fixing to main frame

2шт.

K19480

SPRING WASHER

- spring, 1/4 in. battery fixing to main frame

2шт.

K19470

WASHER

- 1/4 in. battery fixing to main frame

2шт.

K923772

PACKING

- piece battery fixing to main frame

2шт.

K628100

PLUG

- 7/16 UNC battery fixing to main frame

2шт.

2

K913945

CABLE

-, Serial Range: battery-earth

1шт.

3

K914193

CABLE

- battery to starter (replaces 913947)

1шт.

K621609

CLIP

- battery to starter cable

1шт.

K602701

BOLT

- setscrew, 1/4 UNC x 1/2 in. battery to starter cable

1шт.

K19480

SPRING WASHER

- spring, 1/4 in. battery to starter cable

1шт.

K15518

CLAMP

- clip battery to starter cable

1шт.

K87560

CONTACT HOUSING

- rubber cover--starter terminal

1шт.

4

K913007

X

STARTER

1шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW - 3/8 UNC x 1 1/8 in. starter to engine

3шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in., Serial Range: starter-engine

3шт.

5

K918762

CABLE

- starter to earth (supersedes 908844)

1шт.

K19470

WASHER

- 1/4 in. used with 908844

1шт.

K19472

WASHER

- 3/8 in. used with 908844

1шт.

6

K918793

HARNESS - wiring (supersedes 912382)

1шт.

K913825

CONDUIT

1шт.

K82317

GROMMET

2шт.

K89523

BRACKET

- clip, Serial Range: conduit-engine

2шт.

K602700

SCREW,1/4" - 20 x 3/8"

SETSCREW - 1/4 UNC x 3/8 in., Serial Range: conduit-engine

1шт.

K19480

SPRING WASHER

- spring, 1/4 in., Serial Range: conduit-engine

1шт.

K621600

CLIP

- Nylastic

2шт.

K12189

SCREW

- 2 BA x 1/2 in. (replaces 12121)

1шт.

K626340

RING

- spring washer, 3/16 in. (replaces 19488)

2шт.

K11109

NUT

- 2 BA

2шт.

7

K908901

REGULATOR

- (supersedes 913959)

1шт.

K602735

SCREW

- 1/4 UNC x 3/4 in. regulator to bracket (replaces 603926)

2шт.

K19480

SPRING WASHER

- spring, 1/4 in., Serial Range: regulator-bracket

2шт.

K607000

NUT

- 1/4 UNC, Serial Range: regulator-bracket

2шт.

8

K908902

WIRE

LEAD -, Serial Range: regulator-earth

1шт.

K908351

INDICATOR LIGHT

LIGHT - indicator, warning, dynamo charge and oil pressure, Serial Range: 580001-588026

1шт.

BULB - 12 volt, 2.4 watt MES, Serial Range: 580001-588026

2шт.

9

K903851

PRESSURE SWITCH

CONNECTION - electric, switch--oil warning light

1шт.

K915148

NO LONGER SERVICED

COVER - oil warning switch

1шт.

10

K921405

SPARE PART

LEAD - regulator to warning light, Serial Range: 588027-688497

1шт.

11

K921406

ELECTRICAL WIRE

WIRE - lead--ignition to warning light, Serial Range: 588027-688497

1шт.

12

K921365

NO LONGER SERVICED

HARNESS - oil filter warning light, Serial Range: 588027-688497

1шт.

13

K921364

CABLE

- lead--switch to warning light, Serial Range: 588027-688497

1шт.

14

K921317

SENDER UNIT

SWITCH - oil filter warning light, Serial Range: 588027-688497

1шт.

K915148

NO LONGER SERVICED

COVER - switch, Serial Range: 588027-688497

1шт.

K621665

CLIP

- lead to PTO case, Serial Range: 588027-688497

1шт.

K24589

GROMMET

-, Serial Range: 588027-688497

2шт.

K621666

CLIP - lead to clutch cover, Serial Range: 588027-688497

2шт.

15

K961975

NO LONGER SERVICED

SWITCH - isolating and starter (AC-Delco 1533514), supersedes 912384

1шт.

K918835

KEY

- (Yale type) (used with 961975)

2шт.

K912417

KEY

- switch (used with 912384)

2шт.

16

K912386

SWITCH

-, Serial Range: lead--isolating-connector

1шт.

17

K86230

CONNECTOR, ELEC

CONNECTOR - double

1шт.

18

K918669

CABLE

- lead--starter switch to safety switch, U866 (911870) (starter safety switch)

1шт.

19

K918675

SPARE PART

LEAD - safety switch to harness, U866 (911870) (starter safety switch)

1шт.

20

K918672

NEUTRAL START SWITCH

SWITCH - safety, starter, U866 (911870) (starter safety switch)

1шт.

K626732

NO LONGER SERVICED

PIECE - distance switch to tank support, U866 (911870) (starter safety switch)

2шт.

K19393

SETSCREW - 4 BA x 3/4 in. switch to tank support, U866 (911870) (starter safety switch)

2шт.

K623493

NUT - 4 BA switch to tank support, U866 (911870) (starter safety switch)

2шт.

K11885

SPRING

- washer, 4 BA switch to tank support, U866 (911870) (starter safety switch)

2шт.

K918618

PIN

- peg switch to clutch pedal, U866 (911870) (starter safety switch)

1шт.

K918701

LEVER - switch to clutch pedal, U866 (911870) (starter safety switch)

1шт.

K918702

PULL ROD - switch to clutch pedal, U866 (911870) (starter safety switch)

1шт.

K625108

SPRING

- switch to clutch pedal, U866 (911870) (starter safety switch)

1шт.

K19470

WASHER

- 1/4 in. switch to clutch pedal, U866 (911870) (starter safety switch)

1шт.

K11934

PIN

- split, 1/16 x 1/2 in. switch to clutch pedal, U866 (911870) (starter safety switch)

1шт.

86632558

JAM NUT,Jam, 1/2"-13, G5

LOCKNUT - 1/4 UNC switch to clutch pedal, U866 (911870) (starter safety switch)

2шт.

21

K913986

NO LONGER SERVICED

DYNAMO

1шт.

K914251

ADJUSTER

- strap

1шт.

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 7/8 in. adjuster strap

1шт.

K902420

NO LONGER SERVICED

WASHER - 5/16 in. adjuster strap

1шт.

K19481

SPRING WASHER

WASHER - spring, 5/16 in. adjuster strap

1шт.

K912758

BRACKET

- support

1шт.

K602902

SCREW

SETSCREW - 3/8 UNC x 3/4 in. bracket to cylinder block

2шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in. bracket to cylinder block

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1 in. bracket to dynamo

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC bracket to dynamo

2шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in., Serial Range: bracket-dynamo

2шт.

K900757

PULLEY

- dynamo

1шт.

22

K907475

FUSE

- holder

1шт.

23

K912387

NO LONGER SERVICED

LEAD - fuse to lighting switch

1шт.

24

K912388

IGNITION SWITCH

SWITCH - ignition, lighting

1шт.

25

K912390

ELECTRICAL WIRE

WIRE - lead (sidelamps)--lighting, Serial Range: switch-connector

1шт.

26

K914411

LEAD -, Serial Range: (side/floodlamp)--connect-connector

1шт.

27

K908905

CONNECTOR, ELEC

CONNECTOR - three-way

1шт.

28

K913980

NO LONGER SERVICED

LEAD -, Serial Range: connector-sidelamps

2шт.

K914234

CABLE

- guard

1шт.

K621600

CLIP

- Nylastic

1шт.

K12189

SCREW

- 2 BA x 1/2 in. (replaces 12121)

1шт.

K19488

SPRING WASHER

- spring, 3/16 in.

1шт.

29

K912396

NO LONGER SERVICED

LAMP - side/rear (red), left-hand, 580001 to 581999, See Fig. 98

1шт.

29

K921080

STOP LIGHT

LIGHT - stop, side/rear lamp (orchid white), left-hand, 582001 onward, See Fig. 98

1шт.

30

K912395

NO LONGER SERVICED

LAMP - side/rear (red), right-hand, 580001 to 581999, See Fig. 98

1шт.

30

K921079

LAMP

- side/rear (orchid white), right-hand, 582001 onward, See Fig. 98

1шт.

BULB - 12 volt, 6 watt, double contact

2шт.

K617080

NUT

- No. 10 UNF

4шт.

K11519

WASHER

LOCKWASHER - 3/16 in.

4шт.

K915692

NO LONGER SERVICED

CABLE - tube, left-hand (supersedes 914212)

1шт.

K915693

NO LONGER SERVICED

CABLE - tube, right-hand (supersedes 914213)

1шт.

K12245

CLIP - cable tubes

4шт.

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

- mudguards

4шт.

31

K67916

ELEC CONNECTOR

CONNECTOR - single

1шт.

32

K913981

BRACKET

-, Serial Range: lead--connector-floodlamp

1шт.

K24589

GROMMET

1шт.

33

K913946

NO LONGER SERVICED

FLOODLAMP - rear (red), 580001 to 581999, (see Fig. 98)

1шт.

33

K921081

LAMP

FLOODLAMP - rear (orchid white), 582001 onward (see Fig. 98)

1шт.

BULB - pre-focus, 28 mm., 12 volt, 36 watt

1шт.

34

K904078

NO LONGER SERVICED

SOCKET - trailer connection

1шт.

K960896

PLUG - trailer socket

1шт.

K603924

SCREW

- 1/4 UNC x 1/2 in.

1шт.

K607000

NUT

- 1/4 UNC

1шт.

K19480

SPRING WASHER

- spring, 1/4 in.

1шт.

35

K912385

CABLE

- lead (headlamps)--lighting switch to connector, double filament lamps

1шт.

36

K908903

LEAD - (headlamps)--connector to connector, double filament lamps

1шт.

37

K917874

NO LONGER SERVICED

LEAD - connector to headlamps double filament lamps

1шт.

K903822

WASHER

- clip--leads to bonnet double filament lamps

9шт.

38

K915874

HEADLAMP

- 12 volt, 40/40 watt, sealed beam unit, double filament lamps

2шт.

K626340

RING

- spring washer, 3/16 in. double filament lamps

4шт.

K914195

NO LONGER SERVICED

LEAD - (headlamps)--lighting switch to connector, single filament headlamps

1шт.

K86230

CONNECTOR, ELEC

CONNECTOR - double single filament headlamps

1шт.

K914194

NO LONGER SERVICED

LEAD - connector to headlamps single filament headlamps

1шт.

K903822

WASHER

- clip--leads to bonnet single filament headlamps

9шт.

K915141

LAMP

HEADLAMP - 12 volt, 35 watt, sealed beam unit, single filament headlamps

2шт.

K961759

MOUNTING PARTS

- rubber single filament headlamps

2шт.

K604041

SCREW

- No. 8 UNC x 3/4 in. single filament headlamps

4шт.

K607040

NUT

- No. 8 UNC single filament headlamps

4шт.

K626340

RING

- spring washer, 3/16 in. single filament headlamps

4шт.

K914196

ELECTRICAL WIRE

WIRE - lead--headlamp to earth single filament headlamps

2шт.

K912385

CABLE

- lead (headlamps)--lighting switch to connector, side-mounted headlamps (582001 onward)

1шт.

K908903

LEAD - (headlamps)--connector to connector, side-mounted headlamps (582001 onward)

1шт.

K915963

LEAD - connector to headlamps, side-mounted headlamps (582001 onward)

1шт.

K903822

WASHER

- clip--headlamps to bonnet, side-mounted headlamps (582001 onward)

14шт.

K921082

LAMP

HEADLAMP - left-hand see Fig. 98, side-mounted headlamps (582001 onward)

1шт.

K921083

LAMP

HEADLAMP - right-hand see Fig. 98, side-mounted headlamps (582001 onward)

1шт.

BULB - pre-focus, 28 mm., 12 volt, 35/35 watt, side-mounted headlamps (582001 onward)

2шт.

K912385

CABLE

- lead (headlamps)--lighting switch to connector, side-mounted headlamps, Serial Range: (580001-581999)

1шт.

K908903

LEAD - (headlamps)--connector to to connector, side-mounted headlamps, Serial Range: (580001-581999)

1шт.

K908893

NO LONGER SERVICED

LEAD - connector to headlamps, side-mounted headlamps, Serial Range: (580001-581999)

1шт.

K903822

WASHER

- clip--leads to bonnet, side-mounted headlamps, Serial Range: (580001-581999)

9шт.

K912015

NO LONGER SERVICED

HEADLAMP - left-hand see Fig. 98, side-mounted headlamps, Serial Range: (580001-581999)

1шт.

K912016

NO LONGER SERVICED

HEADLAMP - right-hand see Fig. 98, side-mounted headlamps, Serial Range: (580001-581999)

1шт.

BULB - pre-focus, 28 mm., 12 volt, 35/35 watt, side-mounted headlamps, Serial Range: (580001-581999)

2шт.

39

K82303

SPARE PART

PLATE - number lamp, U590 (911150) (rear number plate lamp, Standard Seat)

1шт.

BULB - 12 volt, 6 watt, single contact, U590 (911150) (rear number plate lamp, Standard Seat)

1шт.

K12355

NUT

- domed, 2 BA, U590 (911150) (rear number plate lamp, Standard Seat)

2шт.

K902460

SUPPORT

- bracket, U590 (911150) (rear number plate lamp, Standard Seat)

1шт.

K603924

SCREW

- 1/4 UNC x 1/2 in. bracket to seat, U590 (911150) (rear number plate lamp, Standard Seat)

3шт.

K607000

NUT

- 1/4 UNC bracket to seat, U590 (911150) (rear number plate lamp, Standard Seat)

3шт.

K19480

SPRING WASHER

- spring, 1/4 in. bracket to seat, U590 (911150) (rear number plate lamp, Standard Seat)

3шт.

40

K912392

NO LONGER SERVICED

LEAD - connector to number plate lamp, U590 (911150) (rear number plate lamp, Standard Seat)

1шт.

K24824

NO LONGER SERVICED

CLIP - lead to seat, U590 (911150) (rear number plate lamp, Standard Seat)

1шт.

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

- seat, U590 (911150) (rear number plate lamp, Standard Seat)

1шт.

39

K913985

SPARE PART

PLATE - number lamp, U656 (911343) (rear number plate lamp, Deluxe Suspension Seat)

1шт.

BULB - 12 volt, 6 watt, single contact, U656 (911343) (rear number plate lamp, Deluxe Suspension Seat)

1шт.

K913984

PLATE

- number, U656 (911343) (rear number plate lamp, Deluxe Suspension Seat)

1шт.

K603926

SCREW

- 1/4 UNC x 3/4 in., U656 (911343) (rear number plate lamp, Deluxe Suspension Seat)

2шт.

K607043

NUT

- 1/4 UNC, U656 (911343) (rear number plate lamp, Deluxe Suspension Seat)

2шт.

K626341

SPRING WASHER

WASHER - lock, spring, 1/4 in., U656 (911343) (rear number plate lamp, Deluxe Suspension Seat)

2шт.

K903822

WASHER

- clip--lead to number plate, U656 (911343) (rear number plate lamp, Deluxe Suspension Seat)

1шт.

K621642

SPARE PART

CLIP - lead to seat, U656 (911343) (rear number plate lamp, Deluxe Suspension Seat)

1шт.

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

- No. 10 UNF x 1/2 in., U656 (911343) (rear number plate lamp, Deluxe Suspension Seat)

1шт.

K617080

NUT

- No. 10 UNF, U656 (911343) (rear number plate lamp, Deluxe Suspension Seat)

1шт.

K626340

RING

- spring washer, 3/16 in., U656 (911343) (rear number plate lamp, Deluxe Suspension Seat)

1шт.

41

K910618

ELECTRICAL GAUGE

GAUGE - electrical, temperature U581 (911135) (thermometer)

1шт.

42

K912717

LEAD - isolating switch to gauge U581 (911135) (thermometer)

1шт.

43

K907998

ELECTRICAL GAUGE

GAUGE - electrical, lead, to connector U581 (911135) (thermometer)

1шт.

44

K907999

ELECTRICAL WIRE

WIRE - lead--connector to sender U581 (911135) (thermometer)

1шт.

45

K907985

SPARE PART

SENDER - U581 (911135) (thermometer)

1шт.

K626444

WASHER

- copper, 3/8 in. U581 (911135) (thermometer)

1шт.

46

K912701

LEAD - isolating switch to horn push U764 (911725) (electric horn)

1шт.

47

K19911

SPARE PART

HORN - push U764 (911725) (electric horn)

1шт.

K908047

PAD

- seating horn push to instrument panel, U764 (911725) (electric horn)

1шт.

K624718

SCREW

- 5 BA x 3/4 in. horn push to instrument panel, U764 (911725) (electric horn)

2шт.

K19487

WASHER

- spring, 1/8 in. horn push to instrument panel, U764 (911725) (electric horn)

2шт.

K19419

NUT

- 5 BA horn push to instrument panel, U764 (911725) (electric horn)

2шт.

48

K908019

CABLE

- lead--horn push to connector U764 (911725) (electric horn)

1шт.

49

K912700

LEAD - connector to horn U764 (911725) (electric horn)

1шт.

50

K907861

NO LONGER SERVICED

HORN - bracket U764 (911725) (electric horn)

1шт.

K912699

PLATE - carrier, horn U764 (911725) (electric horn)

1шт.

K602702

SCREW

SETSCREW - 1/4 UNC x 5/8 in. horn to carrier plate, U764 (911725) (electric horn)

2шт.

K607000

NUT

- 1/4 UNC horn to carrier plate U764 (911725) (electric horn)

2шт.

K19480

SPRING WASHER

- spring, 1/4 in. horn to carrier plate, U764 (911725) (electric horn)

2шт.

51

K908902

WIRE

LEAD - horn to earth U764 (911725) (electric horn)

1шт.

52

K919033

HARNESS - fuel gauge and tank unit U901 (918086) (fuel gauge)

1шт.

K19929

BUCKLE

- clip U901 (918086) (fuel gauge)

2шт.

53

K917374

SPARE PART

GAUGE - fuel U901 (918086) (fuel gauge)

1шт.

54

K916635

SENDER UNIT

- tank U901 (918086) (fuel gauge)

1шт.

K916485

GASKET

- U901 (918086) (fuel gauge)

1шт.

K617080

NUT

- No. 10 UNF U901 (918086) (fuel gauge)

5шт.

K626340

RING

- spring washer, 3/16 in. U901 (918086) (fuel gauge)

5шт.
