Запчасти Case IH 770A (020) - AIR CLEANER, STANDARD (01) - ENGINE

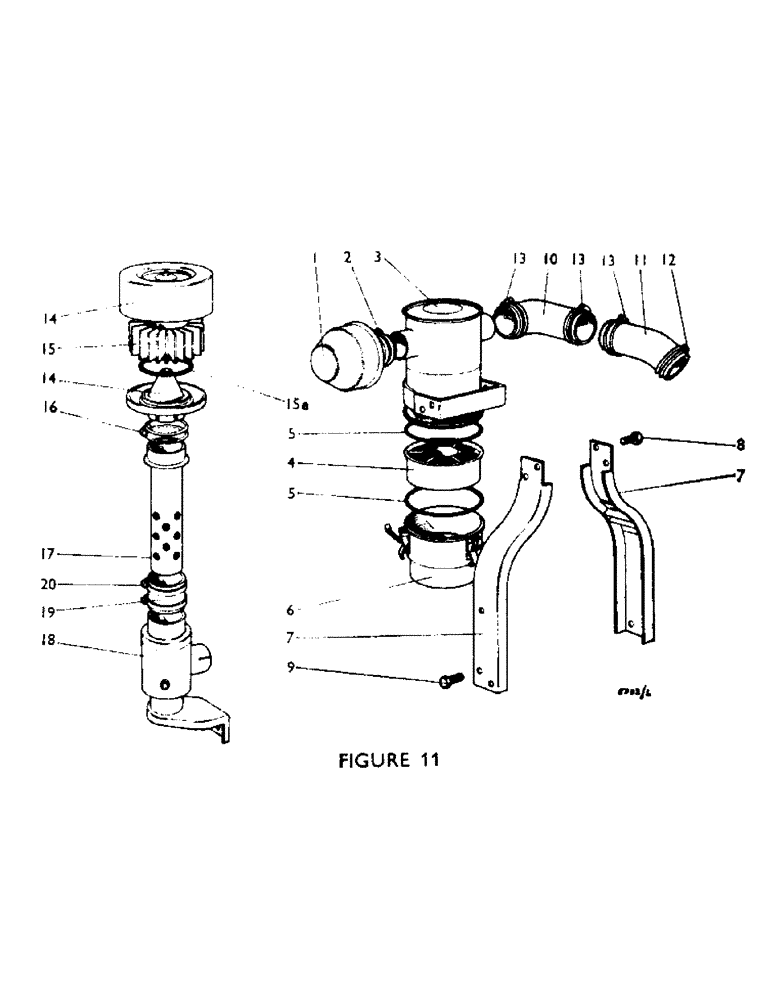

Схема запчастей Case IH 770A - (020) - AIR CLEANER, STANDARD (01) - ENGINE
5
10
15
12
7
7
13
9
14
8
17
13
14
18
20
6
16
4
11
15a
3
13
1
2
5
19

Артикул

Название

Примечание

Количество

1

K917629

PRE-CLEANER - 589189 onward

1шт.

1

K912683

PRE-CLEANER -, Serial Range: 580001-589188

1шт.

2

K13079

NO LONGER SERVICED

HOSE - clip, 2 in. dia.

1шт.

3

K912682

CLEANER ASSY.

- air, 5 1/4 in.

1шт.

4

K961738

PATCH

- lower element 912682

1шт.

5

K961739

SEAL

- ring 912682

2шт.

6

K961740

BOWL ASSY - (with toggle clips) 912682

1шт.

7

K912031

STRAP

- support bracket

2шт.

8

K602803

BOLT

- setscrew, 5/16 UNC x 3/4 in. cleaner to brackets (replaces 602802)

4шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in., Serial Range: cleaner-brackets

4шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC cleaner to brackets

4шт.

9

K602803

BOLT

- setscrew, 5/16 UNC x 3/4 in., Serial Range: brackets-frame

4шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in., Serial Range: brackets-frame

4шт.

10

K912032

PIPE

- air, Serial Range: cleaner-radiator

1шт.

11

K908315

HOSE

- pipe--radiator to inlet manifold

1шт.

12

K622009

NO LONGER SERVICED

HOSE - clip, 2 5/8 in. dia. (replaces 13085)

1шт.

13

K622007

NO LONGER SERVICED

HOSE - clip, 2 3/8 in. dia. (replaces 13083)

3шт.

K961944

SPARE PART

TRANSFER - air cleaner (English) (supersedes 903381)

1шт.

K962001

DECAL

TRANSFER - "Negative Earth" (supersedes 961934)

1шт.

14

K917092

CLEANER

PRE-CLEANER - (paper element type), U827 (911810) (paper element pre-cleaner)

1шт.

15

K913601

CLEANER

- paper element 917092, U827 (911810) (paper element pre-cleaner)

1шт.

15a

K917863

RING

- sealing 917092, U827 (911810) (paper element pre-cleaner)

2шт.

K917862

COVER

- 917092, U827 (911810) (paper element pre-cleaner)

1шт.

K917864

SCREW

- 917092, U827 (911810) (paper element pre-cleaner)

1шт.

K921165

WASHER - fibre 917092, U827 (911810) (paper element pre-cleaner)

1шт.

16

K13083

NO LONGER SERVICED

HOSE - clip--pre-cleaner, U827 (911810) (paper element pre-cleaner)

1шт.

17

K917222

PIPE - extension, 8 7/8 in., U827 (911810) (paper element pre-cleaner)

1шт.

18

K917215

SUPPORT - extension pipe, U827 (911810) (paper element pre-cleaner)

1шт.

19

K917437

SLEEVE - rubber, U827 (911810) (paper element pre-cleaner)

1шт.

20

K621773

HOSE - clip--sleeve, U827 (911810) (paper element pre-cleaner)

2шт.

17

K917221

PIPE - extension, 32 in., U828 (911811) (air cleaner extension)

1шт.

18

K917215

SUPPORT - extension pipe, U828 (911811) (air cleaner extension)

1шт.

19

K917437

SLEEVE - rubber, U828 (911811) (air cleaner extension)

1шт.

20

K621773

HOSE - clip--sleeve, U828 (911811) (air cleaner extension)

2шт.

16

K13083

NO LONGER SERVICED

HOSE - clip--pre-cleaner, U828 (911811) (air cleaner extension)

1шт.

K917629

PRE-CLEANER - U828 (911811) (air cleaner extension)

1шт.

Выбрано товаров: 36
