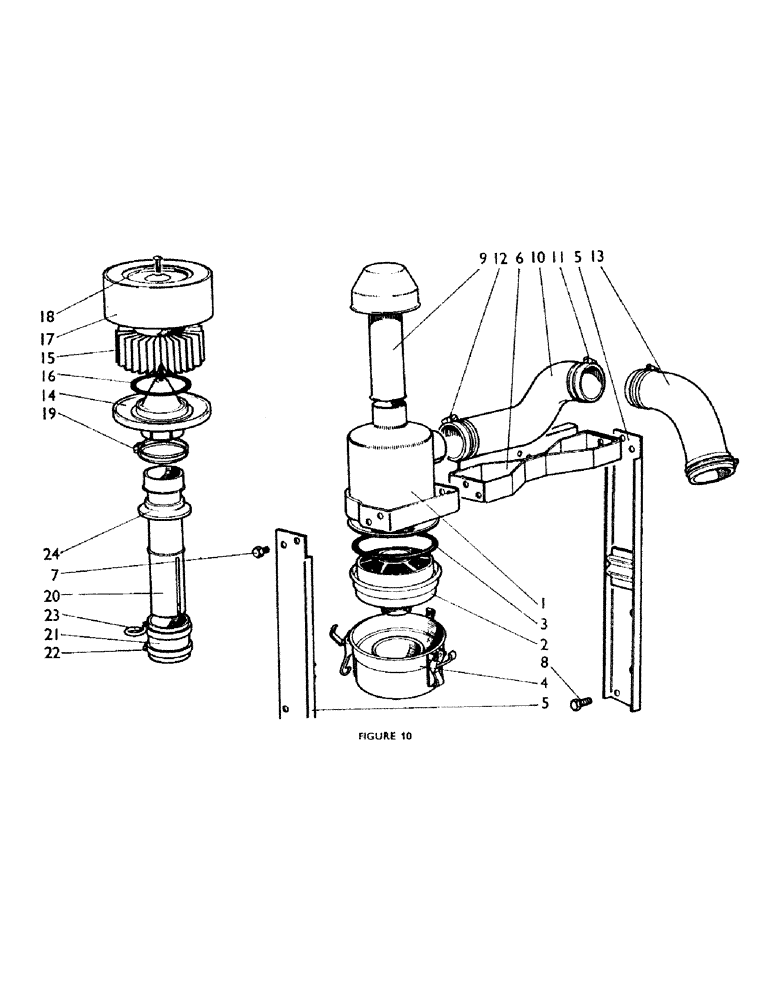

Запчасти Case IH 770A (018) - AIR CLEANER, HEAVY DUTY (01) - ENGINE

1

K921492

HOUSING

- air cleaner 589189 onward

1шт.

1

K920516

SPARE PART

CLEANER - air (supersedes 917038), Serial Range: 586133-589188

1шт.

1

K917038

NO LONGER SERVICED

CLEANER - air, Serial Range: 580001-586132

1шт.

2

K920813

SCREEN

- lower element 921492

1шт.

2

K900218

FILTER, ELEMENT

FILTER - lower element 920516

1шт.

2

K900218

FILTER, ELEMENT

FILTER - lower element 917038

1шт.

3

K920519

O-RING

- sealing ring 920516

1шт.

3

K623585

RING

- sealing (supersedes 902981) 917038

2шт.

4

K920810

NO LONGER SERVICED

BOWL - (with toggle clips) 921492

1шт.

4

K920518

BOWL

- (with toggle clips) 920516

1шт.

4

K903432

BOWL - (with toggle clips) 917038

1шт.

5

K917117

STRAP

- support bracket--air cleaner

2шт.

6

K917969

BRACKET

- tie

1шт.

7

K602803

BOLT

- setscrew, 5/16 UNC x 3/4 in.--bracket to air cleaner

6шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

6шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

6шт.

8

K602803

BOLT

- setscrew, 5/16 UNC x 3/4 in.--bracket to front extension

4шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

4шт.

9

K920811

NO LONGER SERVICED

PRE-CLEANER

1шт.

10

K917972

INTAKE AIR HOSE,2.00" ID, 2.25" ID, SAE J14 Class SC

Air Cleaner to Radiator 2.00" ID, 2.25" ID, SAE J14 Class SC

1шт.

11

K622009

NO LONGER SERVICED

HOSE - clip, 2 5/8 in. int. dia. (replaces 13085)

2шт.

12

K622007

NO LONGER SERVICED

HOSE - clip, 2 3/8 in. int. dia. (replaces 13083)

2шт.

13

K908315

HOSE

-, Serial Range: pipe--radiator-manifold

1шт.

K961944

SPARE PART

TRANSFER - air cleaner

1шт.

K962001

DECAL

- transfer--'Negative Earth'

1шт.

14

K917092

CLEANER

PRE-CLEANER - (paper element type)--AC-Delco, U824 (911807) (paper element pre-cleaner)

1шт.

15

K913601

CLEANER

- paper element 917092, U824 (911807) (paper element pre-cleaner)

1шт.

16

K917863

RING

- sealing 917092, U824 (911807) (paper element pre-cleaner)

2шт.

17

K917862

COVER

- 917092, U824 (911807) (paper element pre-cleaner)

1шт.

18

K917864

SCREW

- 917092, U824 (911807) (paper element pre-cleaner)

1шт.

K921165

WASHER - fibre 917092, U824 (911807) (paper element pre-cleaner)

1шт.

19

K13083

NO LONGER SERVICED

HOSE - clip--pre-cleaner, U824 (911807) (paper element pre-cleaner)

1шт.

20

K917094

EXTENSION PIPE - 8 3/4 in., U824 (911807) (paper element pre-cleaner)

1шт.

21

K917048

SLEEVE

- rubber, U824 (911807) (paper element pre-cleaner)

1шт.

22

K621933

CLIP

- hose, air cleaner, U824 (911807) (paper element pre-cleaner)

1шт.

23

K621940

CLIP - hose, extension, U824 (911807) (paper element pre-cleaner)

1шт.

24

K917010

FLANGE

- dust, U824 (911807) (paper element pre-cleaner)

1шт.

20

K915275

INLET MANIFOLD

PIPE - extension, 32 in., U825 (911809) (air cleaner extension)

1шт.

21

K917048

SLEEVE

- rubber, U825 (911809) (air cleaner extension)

1шт.

22

K621933

CLIP

- hose, air cleaner, U825 (911809) (air cleaner extension)

1шт.

23

K621940

CLIP - hose, extension, U825 (911809) (air cleaner extension)

1шт.

24

K917010

FLANGE

- dust, U825 (911809) (air cleaner extension)

1шт.
