Запчасти Case IH 770A (017) - RADIATOR AND BLIND (01) - ENGINE

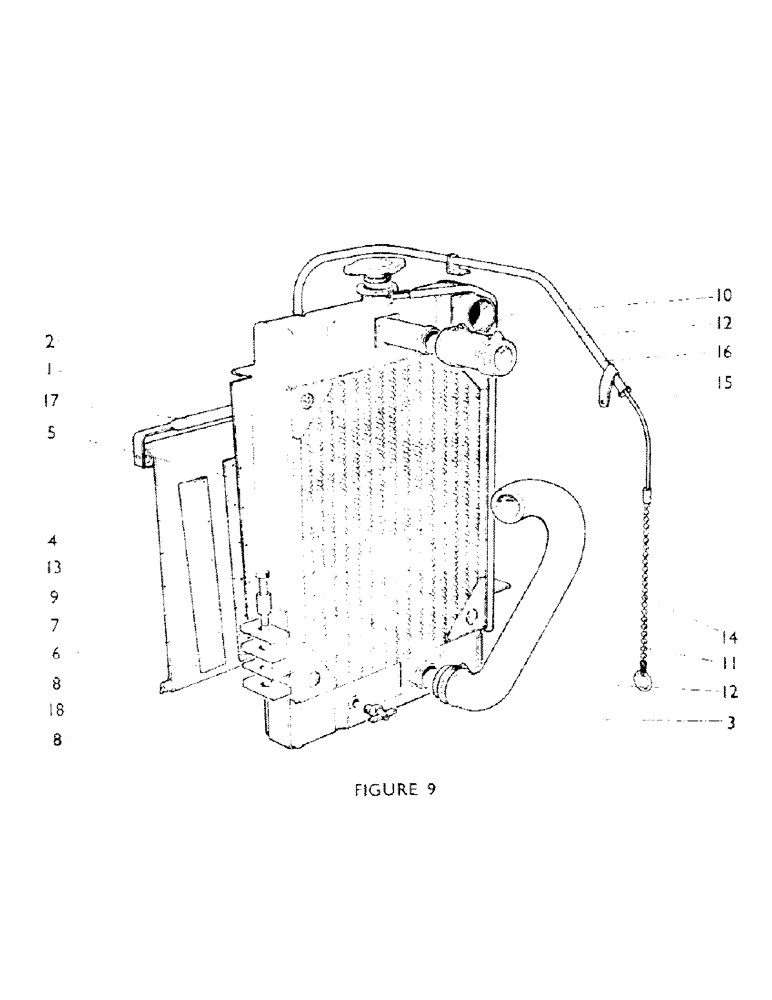

Схема запчастей Case IH 770A - (017) - RADIATOR AND BLIND (01) - ENGINE
7
9
4
15
13
10
5
17
8
16
3
2
8
12
14
12
18
11
1
6

Артикул

Название

Примечание

Количество

1

K921582

RADIATOR

- 50 mm. block alternatives 587213 onward

1шт.

1

K920293

RADIATOR

- 80 mm. block alternatives 587213 onward

1шт.

1

K912033

NO LONGER SERVICED

RADIATOR - 50 mm. block alternatives, Serial Range: 580001-587212

1шт.

1

K914443

NO LONGER SERVICED

RADIATOR - 80 mm, block alternatives, Serial Range: 580001-587212

1шт.

2

K906196

CAP

- filler

1шт.

3

K622060

PLUG, DRAIN

PLUG - drain tap

1шт.

K19501

WASHER

WASHER - fibre, 1/2 in.

1шт.

4

K913202

STRIP - sealing, side

2шт.

5

K915202

STRIP - clamping

2шт.

K624153

RIVET

12шт.

6

K908822

NO LONGER SERVICED

PLATE - clamping

2шт.

7

K908823

TUBE,0.562" OD x 0.875" L

- distance

2шт.

8

K908824

NO LONGER SERVICED

FOOT - packing

4шт.

9

K600406

BOLT

- 3/8 UNC x 1 3/4 in. (replaces 600405)

2шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in.

2шт.

10

K37575

HOSE

- radiator inlet

1шт.

11

K912034

HOSE

- radiator outlet (for radiators 912033 and 921582)

1шт.

11

K915206

HOSE

- radiator outlet (for radiators 914443 and 920293)

1шт.

12

K13078

BRACKET

- hose clip, 1 7/8 in. dia.

3шт.

K13079

NO LONGER SERVICED

HOSE - clip, 2 in. dia.--water pump inlet

1шт.

13

K912318

RADIATOR

- blind U624 (911291)

1шт.

14

K913185

BALL

- chain U624 (911291)

1шт.

15

K913392

ROPE

- control cord U624 (911291)

1шт.

16

K912910

TUBE

- control cord U624 (911291)

1шт.

17

K912319

ROD

- pull U624 (911291)

1шт.

18

K912320

ANCHOR - U624 (911291)

1шт.

K19520

PIN

- split, 1/16 x 3/8 in. U624 (911291)

2шт.

Выбрано товаров: 27
