Запчасти Case IH 770A (015) - OIL PUMP (01) - ENGINE

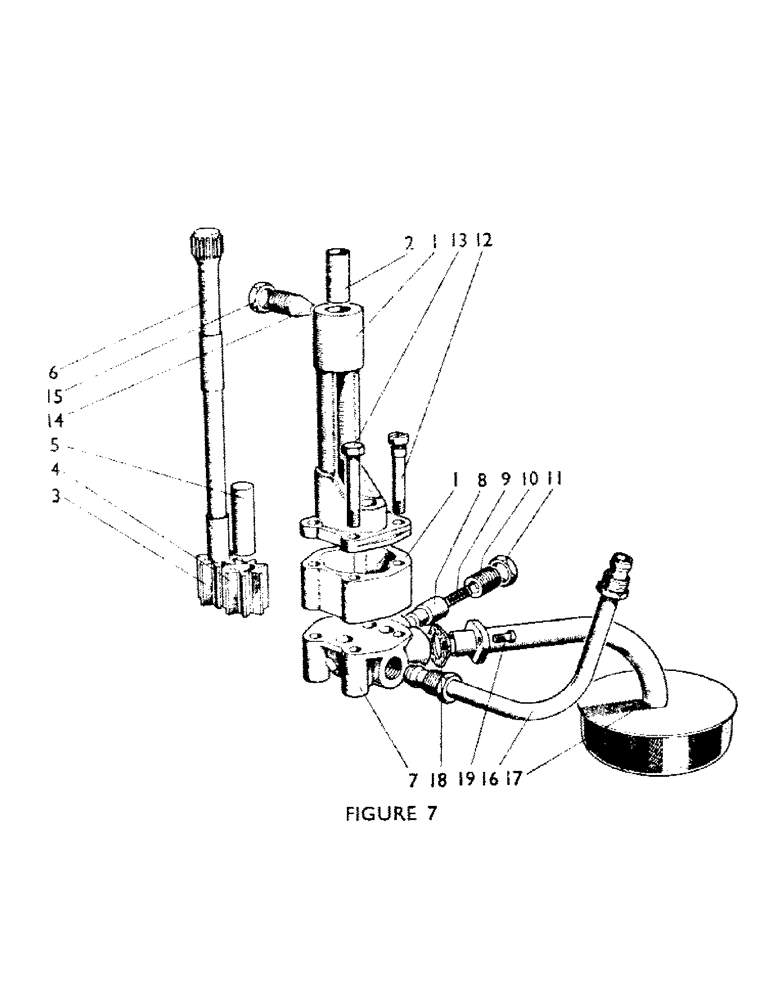

Схема запчастей Case IH 770A - (015) - OIL PUMP (01) - ENGINE
2
9
11
8
1
12
6
10
4
3
1
16
14
5
19
18
13
7
17
15

Артикул

Название

Примечание

Количество

K911963

PUMP

- oil (complete) (supersedes 961736)

1шт.

1

K961737

BRACKET

- gear housing

1шт.

2

K30016

BUSHING

- bracket

1шт.

3

K902058

PINION

- driving rotor

1шт.

4

K902059

PINION

- driven rotor

1шт.

5

K902060

SPINDLE

PIN - large, shaft--driven rotor

1шт.

6

K907918

SPINDLE

- shaft--driving rotor

1шт.

K19604

KEY

- Woodruff No. 405

1шт.

K907921

VALVE

- relief assembly

1шт.

7

K907589

VALVE

- cover 907921

1шт.

8

K907590

PLUNGER

- 907921

1шт.

9

K625148

SPRING

- 907921

1шт.

10

K912301

SCREW

- adjusting 907921

1шт.

11

K19438

LOCK NUT

LOCKNUT - 3/8 BSP 907921

1шт.

12

K604544

FITTING

- screw, 1/4 UNC x 3 in., special fitting

2шт.

13

K600018

BOLT

- 1/4 UNC x 3 in.

2шт.

K607000

NUT

- 1/4 UNC

4шт.

K19480

SPRING WASHER

- spring, 1/4 in.

4шт.

14

K900748

SCREW

- locating

1шт.

15

K607516

NUT

- capped, 7/16 UNC

1шт.

K14674

WASHER

- copper, 7/16 in.

1шт.

16

K908050

PIPE

- oil, pump to cylinder block

1шт.

17

K907929

FILTER

- oil pump inlet

1шт.

18

K908048

GASKET,0.76mm Thk

1шт.

19

K602702

SCREW

SETSCREW - 1/4 UNC x 5/8 in.

2шт.

K19480

SPRING WASHER

- spring, 1/4 in.

2шт.

Выбрано товаров: 26
