Запчасти Case IH 770A (014) - WATER PUMP (01) - ENGINE

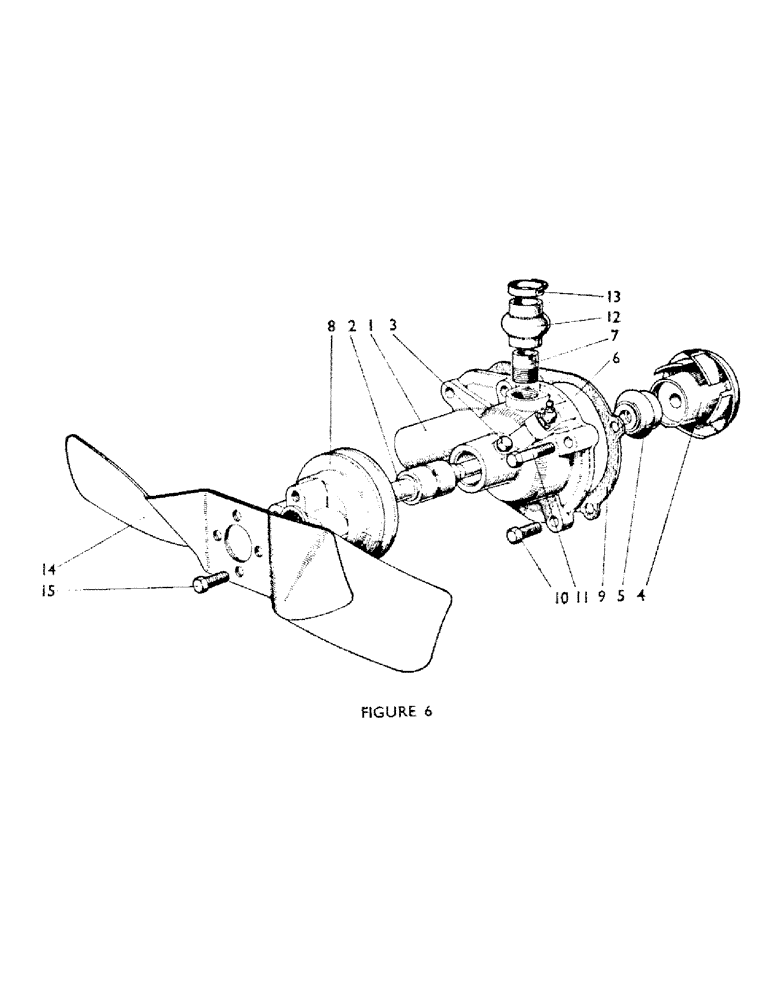

Схема запчастей Case IH 770A - (014) - WATER PUMP (01) - ENGINE
10
12
14
9
1
15
7
11
8
5
13
6
3
4
2

Артикул

Название

Примечание

Количество

K911964

WATER PUMP

PUMP - water assembly

1шт.

1

K907923

HOUSING

- pump body 911964

1шт.

2

K11651

BEARING

- shaft 911964

1шт.

3

K903810

SCREW,Locating, 5/16" - 18 x 21/32"

- locating, bearing 911964

1шт.

K11673

WASHER

- tab 911964

1шт.

4

K907924

IMPELLER

- 911964

1шт.

5

K68949

SEAL

- gland 911964

1шт.

6

K622252

OILER

- grease nipple 911964

1шт.

7

K904195

FITTING

- connection--by-pass 911964

1шт.

8

K900476

PULLEY

- fan 911964

1шт.

9

K907925

GASKET

-, Serial Range: pump-block

1шт.

10

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1 in. water pump to block

4шт.

11

K600207

BOLT

- 5/16 UNC x 1 3/4 in. water, Serial Range: pump-block

1шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in. water, Serial Range: pump-block

5шт.

12

K904196

HOSE,0.84" ID x 1.56"

- by-pass 0.84" ID x 1.56"

1шт.

13

K621771

CLIP

- hose

2шт.

14

K904656

FAN

- (two-blade)

2шт.

K919660

PLATE

- retaining, fan

1шт.

15

K602903

SCREW

SETSCREW - 3/8 UNC x 7/8 in.

4шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in.

4шт.

K912196

V-BELT

Driving, Fan and dynamo

1шт.

K961770

KIT

- repair (seal, bearing, gasket, etc.)

1шт.

Выбрано товаров: 22
