Запчасти Case IH 770A (010) - CYLINDER HEAD (01) - ENGINE

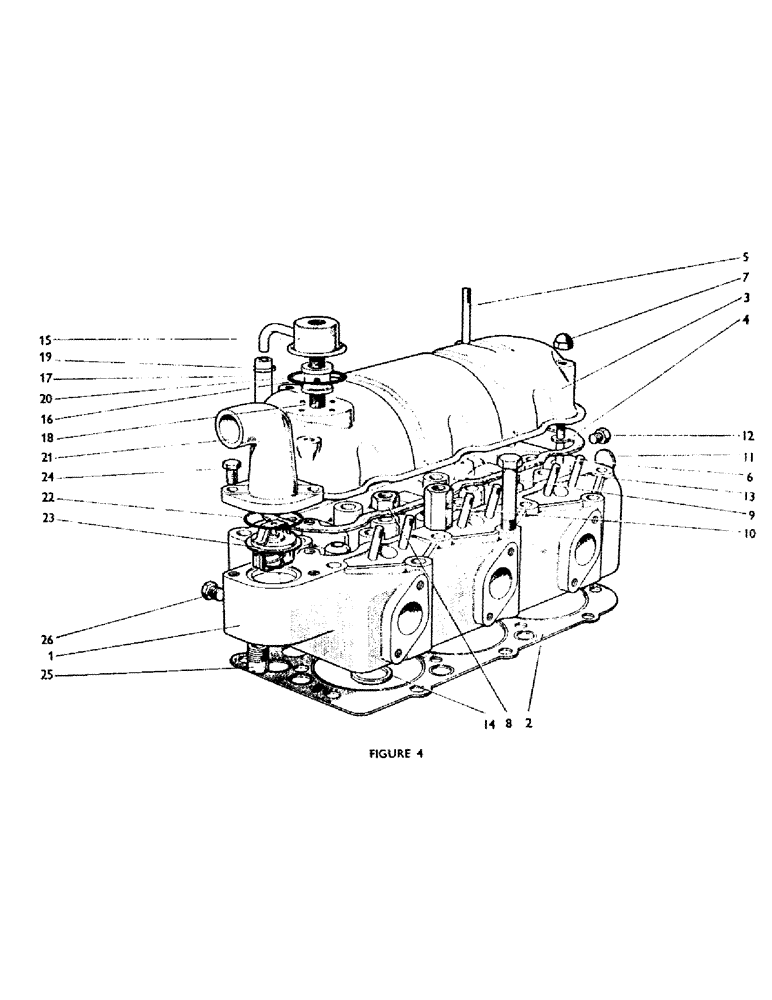

Схема запчастей Case IH 770A - (010) - CYLINDER HEAD (01) - ENGINE
5
12
22
23
4
26
6
3
24
2
7
21
17
19
15
14
11
16
25
20
1
9
18
8
10
13

Артикул

Название

Примечание

Количество

1

K961731

NO LONGER SERVICED

CYLINDER - head (with valve inserts and plugs)

1шт.

2

K914384

GASKET

- head to block AD3/49

1шт.

2

K910671

GASKET

- head to block AD3/30

1шт.

3

K921488

COVER

- cylinder head (supersedes 907323)

1шт.

4

K907338

GASKET,3.97mm Thk

-, Serial Range: cover-head

1шт.

5

K608118

STUD

- 5/16 UNC x 3 7/16 in. cover

2шт.

6

K608111

STUD

- 5/16 UNC x 3 in. cover supersedes 608119

2шт.

K14988

WASHER

- copper asbestos, 5/16 in. cover

4шт.

7

K607252

NUT

- domed, 5/16 UNC cover

4шт.

8

K617581

NUT

- special, 1/2 UNF cylinder head

4шт.

9

K600870

BOLT

- special, 1/2 UNC x 4 1/4 in. cylinder head

9шт.

10

K906898

NUT

- lifting cylinder head

2шт.

K900431

PLUG

- taper

3шт.

11

K623810

PLUG

- welch, 1 in.

2шт.

12

K19591

PLUG

- flanged, 1/8 BSP

1шт.

K16732

WASHER

- copper, 3/8 in.

1шт.

K608203

STUD

- 3/8 UNC x 1 7/8 in.--exhaust manifold

6шт.

13

K608107

STUD

- 5/16 UNC x 2 11/16 in.--injector

6шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

6шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16

6шт.

14

K905202

INSERT

- inlet seat

3шт.

K62034

INSERT

- exhaust seat

3шт.

15

K921489

COVER

- engine breather 589189 onward

1шт.

16

K626901

O-RING,40554" ID x 40575" OD x 0.12"

- O-ring, 1 5/8 in. int. dia. engine breather, 589189 onward

1шт.

17

K920676

PIPE

- hose engine breather 589189 onward

1шт.

18

K920677

BREATHER

- connection engine 589189 onward

1шт.

19

K13068

NO LONGER SERVICED

CLAMP - hose engine breather, 589189 onward (supersedes 621668)

1шт.

20

K909672

DISTRIBUTOR

- distance piece engine breather 589189 onward

1шт.

K626443

WASHER

- copper, 1/2 in engine breather, 589189 onward

1шт.

425-158

JAM NUT,Jam, 1/2"-20, G5

LOCKNUT - 1/2 UNF, Engine breather 589189 onward

1шт.

15

K907108

NO LONGER SERVICED

COVER - engine breather, Serial Range: 580001-589188

1шт.

16

K626901

O-RING,40554" ID x 40575" OD x 0.12"

- O-ring, 1 5/8 in. int. dia., 580001 to 589188 engine breather

1шт.

K907110

BREATHER

- element engine, Serial Range: 580001-589188

1шт.

17

K913215

PIPE - breather (standard air cleaner) engine breather, Serial Range: 580001-589188

1шт.

17

K917432

PIPE - breather (extended air cleaner) engine breather, Serial Range: 580001-589188

1шт.

17

K917970

PIPE ASSY - breather (heavy duty air cleaner) engine breather, Serial Range: 580001-589188

1шт.

K912704

PIPE CLAMP

- connection engine breather, Serial Range: 580001-589188

1шт.

18

K909671

CONNECTION - engine breather, Serial Range: 580001-589188

1шт.

20

K909672

DISTRIBUTOR

- distance piece engine breather, Serial Range: 580001-589188

1шт.

K626443

WASHER

- copper, 1/2 in. engine, 580001 to 589188 breather

2шт.

K617371

NUT

- domed, 1/2 UNF engine breather, Serial Range: 580001-589188

1шт.

21

K908416

NO LONGER SERVICED

PIPE - water outlet

1шт.

22

K68951

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

-138, 90 Duro, 2.112" ID x .103" Thk

1шт.

23

K900368

THERMOSTAT

1шт.

K910411

GASKET

1шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

2шт.

24

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1 in.

2шт.

25

K904195

FITTING

- connection--by-pass

1шт.

K902765

PIPE

- oil, cylinder, Serial Range: block-head

1шт.

26

K619525

PLUG

- 5/8 UNF

1шт.

K626444

WASHER

- copper, 5/8 in.

1шт.

Выбрано товаров: 51
