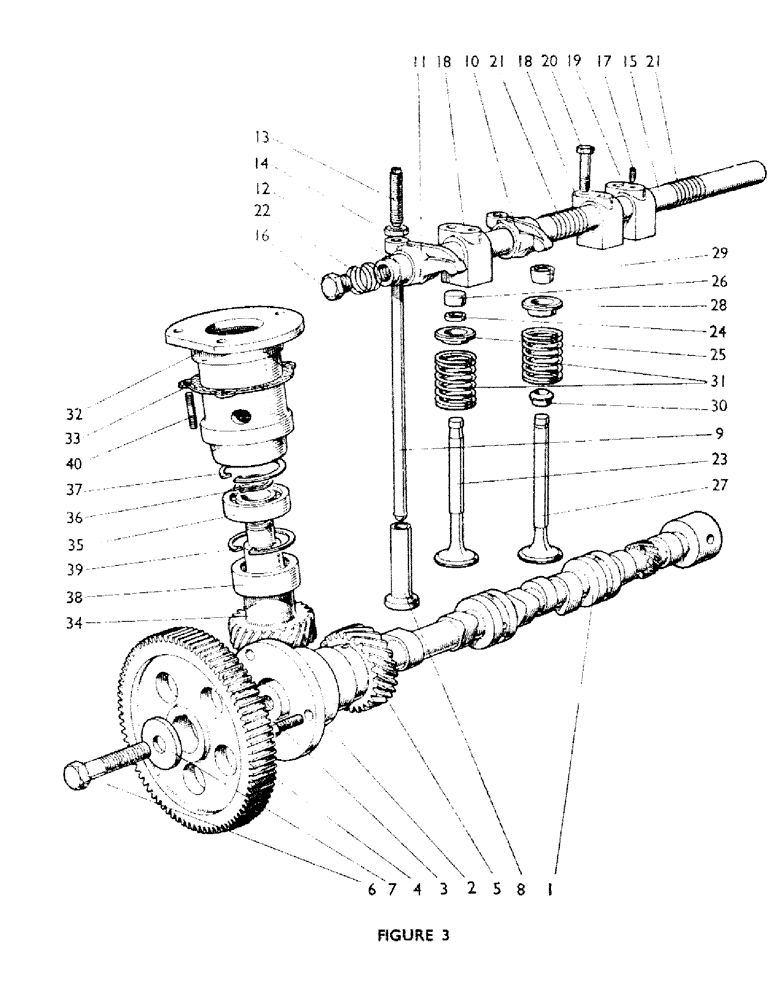

Запчасти Case IH 770A (008) - CAMSHAFT, VALVE MECHANISM AND INJECTION PUMP DRIVE (01) - ENGINE

1

K914527

CAMSHAFT

- AD3/49

1шт.

1

K912765

CAMSHAFT - AD3/30

1шт.

2

K907336

HOUSING

- locating

1шт.

3

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 7/8 in.

3шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

3шт.

4

K907335

PINION

- gear--camshaft

1шт.

5

K909920

DRIVE

- gear--injection pump drive

1шт.

K19607

KEY

- Woodruff No. 506

2шт.

6

K907572

BOLT

- 1/2 UNC x 2 1/4 in.--gear retaining

1шт.

7

K907571

WASHER

- 1/2 in.

1шт.

8

K901137

TAPPET

VALVE - tappet

6шт.

9

K902035

ROD

- push

6шт.

10

K63089

ROCKER

- valve, right-hand (with, Nos. 2, 4, 6--from front bush)

3шт.

11

K63090

ROCKER

- valve, left-hand (with bush) Nos. 1, 3, 5--from front

3шт.

12

K11060

BUSHING

- valve rocker

6шт.

13

K900413

ADJUSTMENT SCREW,3/8" - 16 x 1 1/8"

- 3/8 UNC--adjusting

6шт.

14

87016560

JAM NUT,Jam, 3/8"-16, G5

LOCKNUT - 3/8 UNC

6шт.

15

K907920

TUBE

- shaft--rocker

1шт.

16

K19590

PLUG

- 3/8 BSP

2шт.

17

K606051

SET SCREW,5/16" - 18 x 1/2"

- locating, 3/8 UNC

1шт.

18

K913753

BRACKET

- rocker shaft (Nos. 1 and 2)

2шт.

19

K913754

NO LONGER SERVICED

BRACKET - rocker shaft (rear)

1шт.

20

K600412

BOLT

- 3/8 UNC x 2 1/2 in.

3шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in.

3шт.

21

K11017

SPRING

- locating, intermediate

2шт.

22

K907919

WASHER

- locating spring--ends

2шт.

23

K900417

VALVE

- exhaust

3шт.

24

K68412

COTTER PIN

PIN - split, cotters--exhaust valve (pairs)

3шт.

25

K900419

COLLAR

- exhaust valve

3шт.

26

K68414

CAP

- exhaust valve

3шт.

27

K914528

VALVE

- inlet

3шт.

28

K903995

COLLAR

- inlet valve

3шт.

29

K65893

LOCKING DEVICE

LOCKING-DEVICE - cotter--inlet valve (pairs)

3шт.

30

K903996

NO LONGER SERVICED

SEAL - inlet valve

3шт.

31

K914529

SPRING

- valve

6шт.

32

K910608

HOUSING

- bearing

1шт.

33

K907922

GASKET

- housing to cylinder block

1шт.

34

K912483

GEAR

- driven

1шт.

35

K24489

BALL BEARING

BALL - bearing

1шт.

36

K11128

CIRCLIP

SNAP RING - circlip, 1 in. ext.

1шт.

37

K13170

RING, SNAP

SNAP RING - circlip, 52 mm. int.

1шт.

38

K620072

BEARING

- needle roller

1шт.

39

K621680

SNAP RING,2.062", Int, #206

Ring, Snap, 2.062", Int, #206

1шт.

40

K608121

STUD

- 5/16 UNC x 1 7/8 in.

3шт.

K624903

SPRING

- pump shaft location

1шт.
