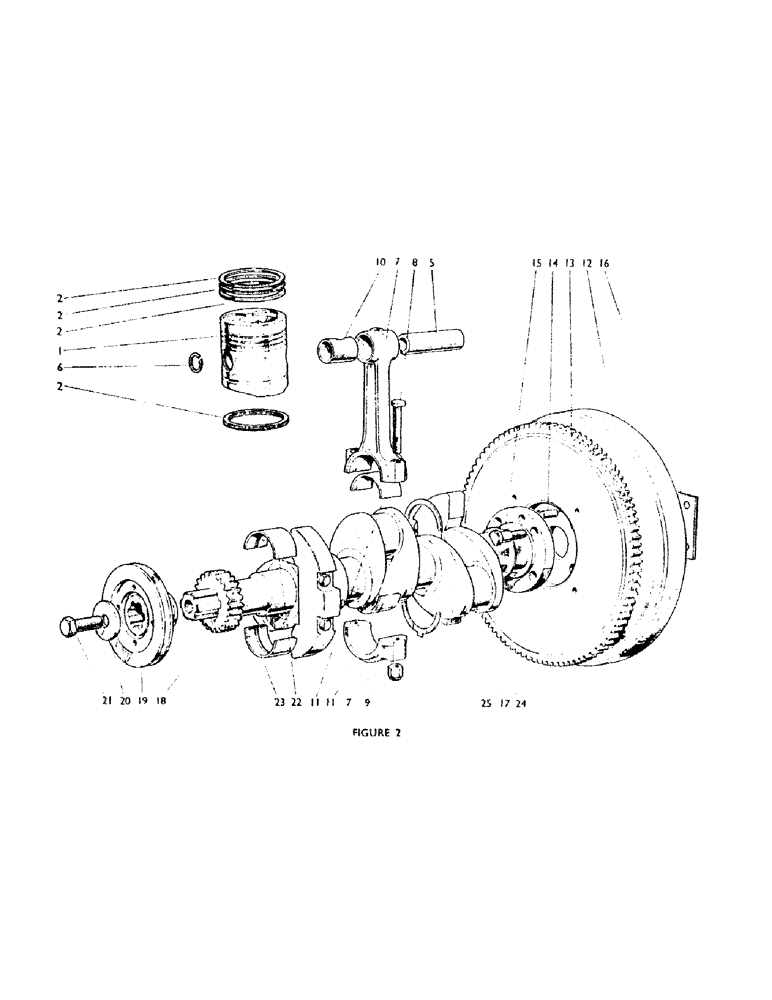

Запчасти Case IH 770A (006) - PISTONS, CONNECTING RODS, FLYWHEEL AND CRANKSHAFT (01) - ENGINE

K921613

PISTON

- gudgeon pin assembly, AD3/49 (standard) (s. 915939)

3шт.

K912406

PISTON - gudgeon pin assembly, AD3/30 (standard)

3шт.

1

K921614

PISTON - (not supplied separately), 921613 (supersedes 915940)

1шт.

1

K909883

PISTON - (not supplied separately) 912406

1шт.

2

K917818

PISTON RING SET

RING SET - piston, pack (set of 12 rings) 921613

1шт.

2

K961717

NO LONGER SERVICED

PISTON - ring pack (set of 12 rings) 912406

1шт.

5

K904370

PIN

- large, gudgeon 921613

1шт.

5

K904370

PIN

- large, gudgeon 912406

1шт.

6

K34501

RING, SNAP

SNAP RING - circlip 921613

2шт.

6

K34501

RING, SNAP

SNAP RING - circlip 912406

2шт.

7

K80043

ROD, CONNECTING

ROD - connecting, cap assembly (identical with 961721--number change only)

3шт.

8

K905198

BOLT

- connecting rod 80043

2шт.

9

K15135

NUT

- Nyloc, 7/16 BSF 80043

2шт.

10

K31669

BEARING

BUSHING - bearing--small end 80043

1шт.

11

K911904

HALF-BEARING, CRANKS

BEARING SET - big end (halves)

6шт.

12

K910150

FLYWHEEL

- starter ring assembly Livedrive

1шт.

12

K910572

FLYWHEEL - starter ring assembly Non-Livedrive

1шт.

K910151

FLYWHEEL - (not supplied separately) 910150

1шт.

K910573

FLYWHEEL - (not supplied separately) 910572

1шт.

13

K36134

GEAR

- starter ring 910150 and 910572

1шт.

14

K10629

PIN

- dowel

1шт.

15

K903431

STEP BOLT

- flywheel

4шт.

K617003

NUT

- 7/16 UNF

4шт.

16

K910883

WASHER

- tab (replaces 903254)

1шт.

K912323

HOUSING

- locating disc Livedrive

1шт.

17

K961719

CRANKSHAFT

- (with bearings and thrust washers)

1шт.

K915423

BOLT

- 3/8 UNC x 2 1/2 in. balance, replaces 600412, Serial Range: weights-crankshaft

4шт.

K626372

WASHER

- tab balance, Serial Range: weights-crankshaft

4шт.

K620032

BEARING

- ball Livedrive

1шт.

K910882

HOUSING

- bearing Livedrive

1шт.

K19167

BALL BEARING,22.23mm ID x 50.8mm OD x 14.29mm W

BEARING - ball Non-Livedrive

1шт.

18

K907329

GEAR

- crankshaft

1шт.

19

K914836

PULLEY

- crankshaft

1шт.

20

K907328

WASHER

- crankshaft

1шт.

K15594

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- 2 in. int. dia.

1шт.

21

K613304

SCREW

- bolt, 5/8 UNF x 1 1/4 in.

1шт.

22

K907324

BUSHING

- main bearing--upper standard

4шт.

23

K907325

NO LONGER SERVICED

BEARING - main, lower standard

4шт.

24

K902023

NO LONGER SERVICED

WASHER - thrust, upper standard

2шт.

25

K902024

NO LONGER SERVICED

WASHER - thrust, lower standard

2шт.
