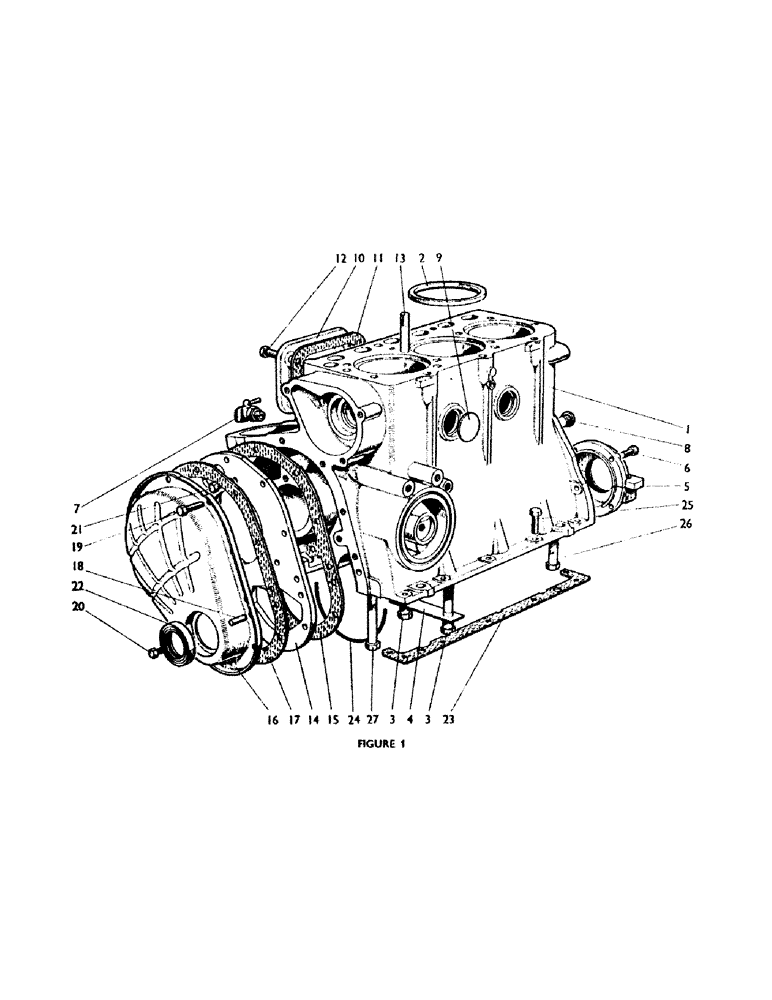

Запчасти Case IH 770A (004) - CYLINDER BLOCK, SLEEVES AND COVERS (01) - ENGINE

1

K961965

CYLINDER

- block

1шт.

2

K914346

RING

- sealing (standard bore) AD3/49

3шт.

1

K961730

NO LONGER SERVICED

CYLINDER - block (complete with sleeves), AD3/30

1шт.

K912776

CYLINDER

- sleeve AD3/30

3шт.

3

K909564

STEP BOLT

- main bearing caps

8шт.

4

K626376

SHEET

- tab washer

4шт.

K907322

RING

- dowel--main bearing caps

8шт.

5

K962319

BEARING

- oil retainer (with packing)

1шт.

K962611

PRODUCT GRAPHIC

- packing--oil retainer

2шт.

K914404

GASKET,0.18mm Thk

- oil retainer

2шт.

K606558

SCREW

- cap hd., 5/16 UNC--oil retainer

2шт.

6

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 7/8 in.

4шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

6шт.

7

K622060

PLUG, DRAIN

PLUG - drain tap (supersedes 89737)

1шт.

K922093

ADAPTER

- fibre washer--drain tap

1шт.

K30421

SEALING WASHER

- adaptor--drain tap

1шт.

8

K609440

PLUG

- 5/8 UNC--oil gallery

1шт.

K15512

WASHER

- copper, 5/8 in. (replaces 626441)

1шт.

K623811

PLUG

- welch, 2 1/16 in.--camshaft bore

1шт.

9

K17192

PLUG

- welch, 1 3/4 in.

4шт.

10

K907332

TAPPET

- cover

2шт.

11

K907333

GASKET

- cover

2шт.

12

K602803

BOLT

- setscrew, 5/16 UNC x 3/4 in.

8шт.

K19471

WASHER

- 5/16 in.

8шт.

K14988

WASHER

- copper-asbestos

8шт.

13

K608500

STUD

- cylinder head

6шт.

14

K907297

CARRIER

- plate

1шт.

15

K907326

GASKET

- carrier plate

1шт.

16

K907225

COVER

- timing gear

1шт.

17

K907327

GASKET

- timing cover

1шт.

18

K621830

DOWEL

2шт.

19

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 7/8 in.

6шт.

20

K602700

SCREW,1/4" - 20 x 3/8"

SETSCREW - 1/4 UNC x 3/8 in.

1шт.

21

K602803

BOLT

- setscrew, 5/16 UNC x 3/4 in.

4шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

9шт.

K19480

SPRING WASHER

- spring, 1/4 in.

1шт.

22

K24855

NO LONGER SERVICED

SEAL - oil, timing cover

1шт.

K914428

FENDER

- guard--crankshaft pulley

1шт.

K910610

BUSHING

- distance piece

2шт.

K600211

BOLT

- 5/16 UNC x 2 1/4 in.

2шт.

23

K907583

GASKET

- left-hand frame to cylinder block

1шт.

23

K907582

GASKET

- right-hand frame to cylinder block

1шт.

24

K907584

SEAL

- bearing caps frame to cylinder block

2шт.

25

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW - 3/8 UNC x 1 1/8 in. frame to cylinder block

9шт.

26

K600465

BOLT

- 3/8 UNC x 8 1/4 in. special frame to cylinder block

3шт.

27

K600416

BOLT

- 3/8 UNC x 3 in. frame to cylinder block

1шт.

K914504

BOLT,Spcl, 3/8" - 16 - 7/16" x 8 1/8"

- 3/8 UNC, special frame to cylinder block

1шт.

K621834

PIN

- dowel frame to cylinder block

2шт.

K19482

SPRING WASHER

WASHER - spring, 3/8 in. frame to cylinder block

14шт.

K903851

PRESSURE SWITCH

CONNECTION - electric, switch--oil-warning light

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

- fibre, 3/8 in.

1шт.

K915148

NO LONGER SERVICED

COVER - warning light switch

1шт.
