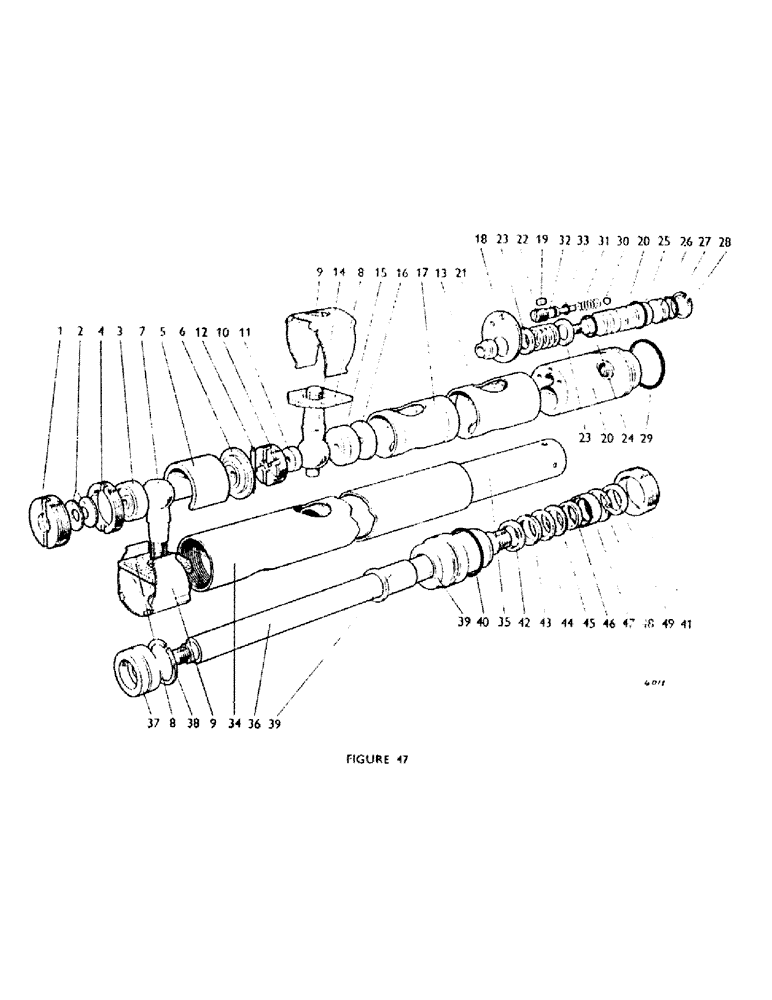

Запчасти Case IH 770A (076) - HYDRAULIC RAM, PART OF U733, POWER-ASSISTED STEERING Steering & Front Axle
№
Артикул
Название
Примечание
Количество
K915483
CYLINDER
- hydraulic ram assembly
1шт.
1
K960796
COVER
- end
1шт.
K960797
NO LONGER SERVICED
NIPPLE - grease
2шт.
K960799
PIN
- split
1шт.
2
K960785
DISC
- Belleville washer
4шт.
3
K960794
BALL
- cup
1шт.
4
K960795
LOCK
- ring
1шт.
5
K960793
BUSHING
- spacer--ball cups
1шт.
6
K960791
BALL
- cup
1шт.
7
K960792
BALL
- pin--steering lever
1шт.
8
K960801
PAD
- grease retainer
2шт.
9
K960800
RING
- spring cover
2шт.
10
K961987
HOLDER
- ball cup
1шт.
11
K960858
BALL
- cup
1шт.
12
K960860
SPRING
- clip--ball cup locking
1шт.
13
K960790
SLEEVE
- locating
1шт.
14
K960787
BALL
- pin--drag link
1шт.
15
K960786
BALL
- cup
1шт.
16
K960784
WASHER
- backing
1шт.
17
K961986
SLEEVE
- operating
1шт.
18
K960779
BUSHING
- spacer
1шт.
19
K960773
PIN
- locating
2шт.
K960782
NUT - valve spool
1шт.
K960861
NO LONGER SERVICED
PIN - split, spool nut
1шт.
K960781
WASHER
- hardened, spool
1шт.
20
K961979
VALVE BODY - spool (not supplied separately)
1шт.
21
K961985
COLLAR
- spool
1шт.
22
K961984
SPRING
- reaction
1шт.
23
K962244
WASHER
- reaction
2шт.
24
K961982
O-RING
O-RING - spool
1шт.
25
K960768
O-RING
- valve body
1шт.
26
K960770
COVER
- end valve body
1шт.
27
K960769
O-RING
- end cover
1шт.
28
K960771
NO LONGER SERVICED
CIRCLIP - valve body
1шт.
29
K960806
O-RING
- valve body
1шт.
30
K960765
BALL
- relief valve
1шт.
31
K960766
SPRING
- relief valve
1шт.
32
K961980
PLUG - valve housing
1шт.
33
K961981
RING,0.07" Thk x 0.208" ID, -9, Cl 5, 75 Duro
O-RING - plug
1шт.
K960825
NUT
- ball pin
2шт.
34
K961988
TUBE
- outer
1шт.
35
K961989
TUBE
- inner
1шт.
36
K961991
PISTON ROD - anchor ball (not supplied separately)
1шт.
37
K960816
PISTON
1шт.
38
K960817
PISTON
- ring
1шт.
K960819
NUT - piston rod
1шт.
K960818
NO LONGER SERVICED
WASHER - piston rod
1шт.
K960820
PIN
- split, piston nut
1шт.
39
K960803
KIT
- bearing and bush (not supplied separately)
1шт.
40
K960772
NO LONGER SERVICED
O-RING - bearing
1шт.
41
K960807
HOUSING
- locking ring
1шт.
42
K961990
SEAL
- spreader
1шт.
43
K960809
SHAFT SEAL
GLAND - ring
1шт.
44
K960810
SEALING WASHER
- vellumoid washer
1шт.
45
K960811
WASHER
- metal
1шт.
46
K960862
SCRAPER
- ring
1шт.
47
K960863
HOUSING
- scraper ring
1шт.
48
K960814
RING, SNAP
SNAP RING - circlip--bearing housing
1шт.
49
K960864
SEAL
- lip scraper
1шт.
K961993
BALL CUP - anchor ball housing--inner
1шт.
K961992
BALL - anchor housing--outer
1шт.
K960797
NO LONGER SERVICED
NIPPLE - grease, ball housing
1шт.
K961994
COVER - rubber, ball housing
1шт.
K962186
SEAL
- pack (O-rings, washers and gland ring)
1шт.
Выбрано товаров: 64
