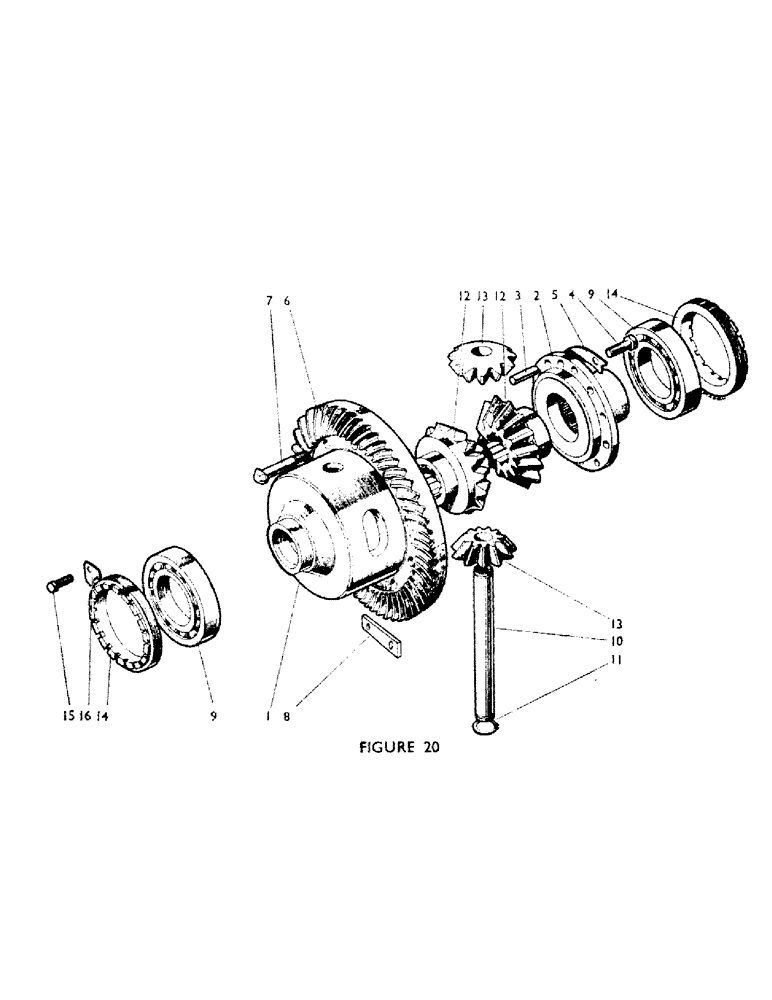

Запчасти Case IH 770A (034) - DIFFERENTIAL Gearbox

1

K908780

HOUSING

- cage

1шт.

2

K903184

FLANGE

- end plate

1шт.

3

K621801

PIN

- dowel, 3/8 x 3/4 in. (replaces 14542)

3шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

9шт.

5

K903185

WASHER

TABWASHER

3шт.

K626372

WASHER

TABWASHER

3шт.

6

K961806

GEARBOX ASSY

- bevel pinion and spiral gear (7/50 teeth)

1шт.

7

K905664

WHEEL BOLT

12шт.

8

K30236

WASHER

- tab

6шт.

280717

NUT,7/16"-14, G5

12шт.

9

K19010

BALL BEARING

BEARING - ball

2шт.

10

K916863

NO LONGER SERVICED

PIN - (replaces 30233)

1шт.

11

K11128

CIRCLIP

SNAP RING - circlip, 1 in. ext. (replaces 19542)

2шт.

12

K910718

WHEEL

2шт.

13

K910465

NO LONGER SERVICED

PINION - (supersedes 15020)

2шт.

14

K15007

RING, LOCKING

RING - locking, adjuster wheel

2шт.

15

K602801

BOLT (SPREADER)

BOLT - setscrew, 5/16 UNC x 1/2 in.

2шт.

16

K13015

WASHER

- tab

2шт.
