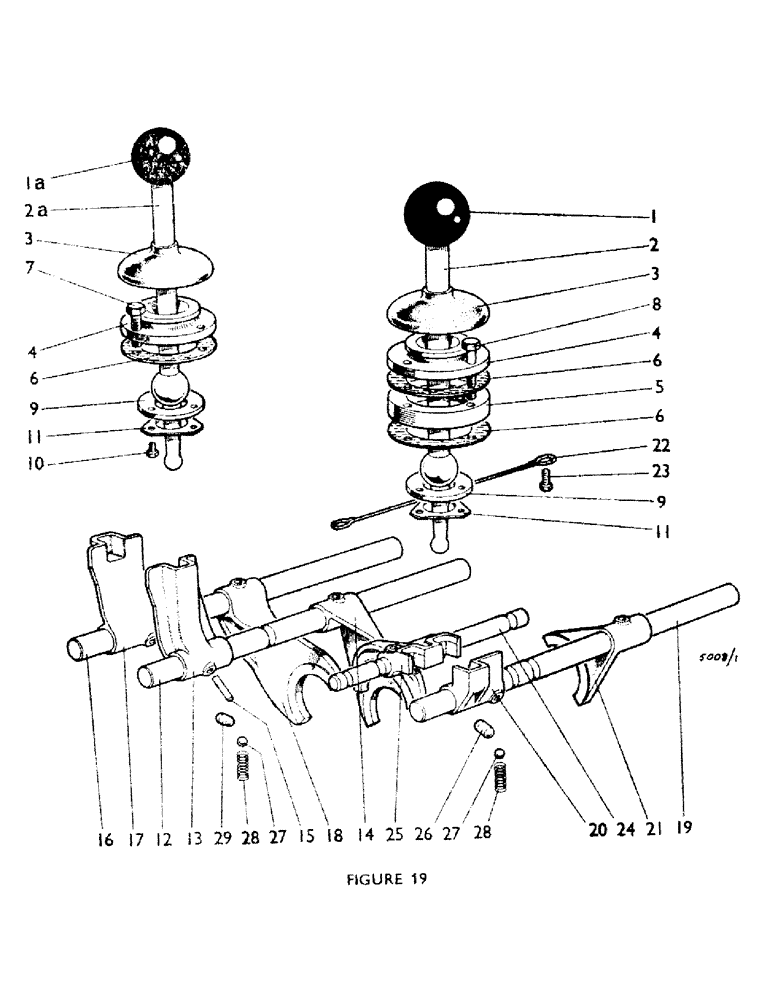

Запчасти Case IH 770A (032) - SELECTOR MECHANISM, GEARBOX Gearbox
№
Артикул
Название
Примечание
Количество
1
K902270
KNOB
- range lever
1шт.
1a
K920787
KNOB
- gear lever
1шт.
2
K913318
LEVER - range (high/low)
1шт.
2a
K920815
LEVER
- gear (1, 2, 3 and reverse)
1шт.
3
K917375
BOOT
- dirt excluder (replaces 903932)
2шт.
4
K915135
SUPPORT
- ball housing
2шт.
5
K913428
PIECE - distance
1шт.
6
K901835
GASKET
3шт.
7
K602705
SCREW
SETSCREW - 1/4 UNC x 1 in.
3шт.
8
K600007
BOLT
- 1/4 UNC x 1 5/8 in.
3шт.
K19480
SPRING WASHER
- spring, 1/4 in.
6шт.
9
K903074
SUPPORT
- plate
2шт.
10
K690456
SCREW
SETSCREW - 3/16 Whit. x 3/8 in.
6шт.
11
K904386
WASHER
- tab
2шт.
12
K913327
SELECTOR
- rod first and reverse gears
1шт.
13
K913325
SELECTOR
- first and reverse gears
1шт.
14
K913326
SELECTOR
- fork first and reverse gears
1шт.
15
K15439
PIN
- Mills, 3/16 x 1 1/4 in. first and reverse gears
2шт.
16
K913330
ROD
- selector rod second and third gears
1шт.
17
K913328
FORK
- selector second and third gears
1шт.
18
K913329
SELECTOR
- fork second and third gears
1шт.
K15439
PIN
- Mills, 3/16 x 1 1/4 in. second and third gears
2шт.
19
K913324
NO LONGER SERVICED
SELECTOR - rod high and low range
1шт.
20
K913322
SELECTOR - high and low range
1шт.
21
K913323
FORK - selector high and low range
1шт.
22
K914348
SPRING
- baulk high and low range
1шт.
23
K602702
SCREW
SETSCREW - 1/4 UNC x 5/8 in. high and low range
2шт.
K607251
NUT
- special, 1/4 UNC high and low range
2шт.
K15439
PIN
- Mills, 3/16 x 1 1/4 in. high and low range
2шт.
24
K913321
SPARE PART
SELECTOR - rod creeper gear
1шт.
25
K913320
SPARE PART
SELECTOR - fork creeper gear
1шт.
K15439
PIN
- Mills, 3/16 x 1 1/4 in. creeper gear
1шт.
26
K913333
NO LONGER SERVICED
GEAR - lock creeper gear
1шт.
27
K13506
BALL
- selector
4шт.
28
K13507
SPRING
- selector
4шт.
29
K30430
LOCKING DEVICE
LOCKING-DEVICE - gear
1шт.
K915155
PLATE - instruction, 'This lever must be in neutral before starting engine'
1шт.
Выбрано товаров: 37
