Запчасти Case IH 770A (036) - FINAL DRIVE REDUCTIONS Final Drive Reductions

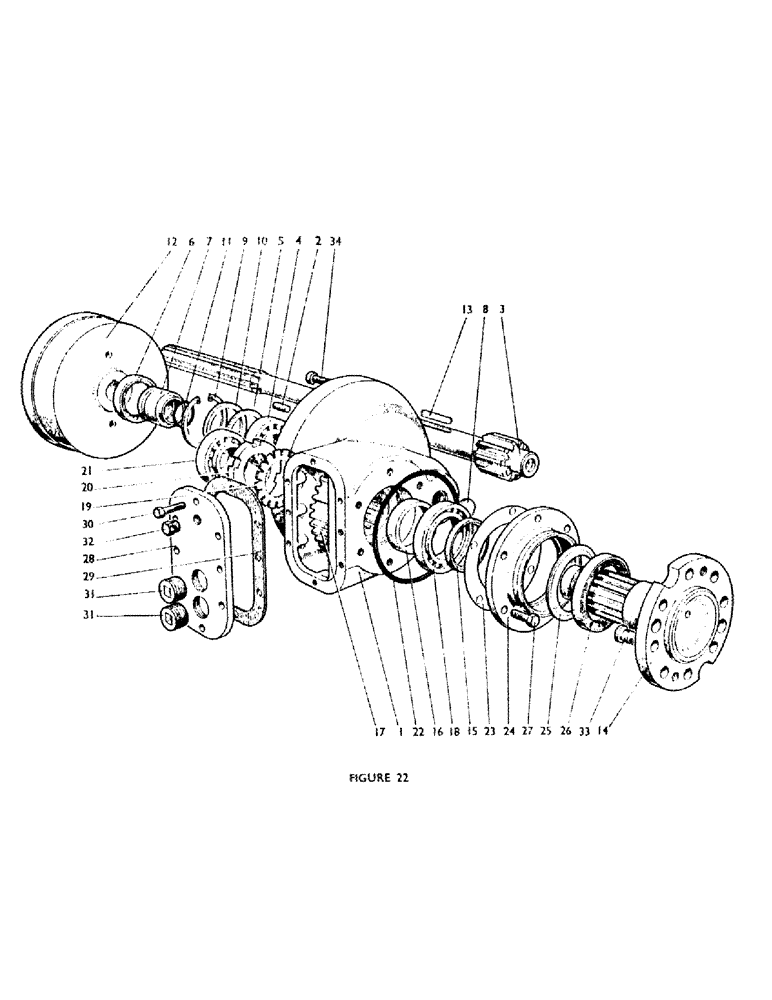

Схема запчастей Case IH 770A - (036) - FINAL DRIVE REDUCTIONS Final Drive Reductions
34
19
2
13
11
10
29
18
8
7
21
15
6
12
33
20
25
9
24
16
4
17
5
26
22
32
23
3
27
31
1
30
14
31
28

Артикул

Название

Примечание

Количество

K961807

REDUCTION ASSY - final drive (complete)

2шт.

1

K910542

NO LONGER SERVICED

CASE

2шт.

2

K11482

PIN

- dowel, 7/16 x 1 1/4 in.

4шт.

3

K910543

SHAFT

- pinion, right-hand

2шт.

4

K690766

TAPERED BEARING

BEARING - taper roller

4шт.

6

K14491

SEAL

- oil

2шт.

7

K910546

COLLAR

2шт.

K627938

NO LONGER SERVICED

PLUG - plastic, 3/4 in.--stabiliser holes (replaces 627936)

4шт.

K628075

PLUG

- plastic, 1/2 in.--upper vent holes (replaces 627885)

2шт.

8

K10050

PLUG

- welch, 1 1/4 in. dia.

2шт.

9

K17023

CIRCLIP

- 3 in. internal

2шт.

10

K60231

BUSHING

- distance piece

2шт.

11

K15535

O-RING,1.484" ID x 1.762" OD x 0.139"

- 1 1/2 in.

2шт.

12

K910545

BRAKE

- drum

2шт.

13

K622318

KEY

2шт.

14

K910551

GEAR

- final drive shaft

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

15

K910553

COLLAR

2шт.

16

K910554

SLEEVE

2шт.

17

K910555

WHEEL

- spur

2шт.

18

K19185

TAPERED BEARING

BEARING - taper roller

2шт.

19

K13367

WASHER

TABWASHER

2шт.

20

K13368

NUT

LOCKNUT

2шт.

21

K19186

BEARING, ROLLER

BEARING - taper roller

2шт.

22

K623537

O-RING,6.475" ID x 7.025" OD x 0.275"

- 6 1/2 in. int. dia.

2шт.

24

K910552

SEAL

- oil housing

2шт.

25

K911995

BAFFLE

2шт.

26

K15550

OIL SEAL,80.95mm ID x 108.08mm OD x 15.88mm Thk

- oil real

2шт.

27

K600602

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

- 7/16 UNC x 1 1/2 in. housing to case (replaces 603006)

12шт.

K19483

SPRING WASHER

- spring, 7/16 in., Serial Range: housing-case

12шт.

28

K910556

COVER

2шт.

29

K923219

GASKET

- (supersedes 910557)

2шт.

30

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 7/8 in. cover to reduction case

16шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in. cover to reduction case

16шт.

31

K12362

PLUG

- taper, 1 in. BSP

4шт.

32

K907203

PLUG

- vent, 1/2 UNC

2шт.

K19501

WASHER

WASHER - sealing, 1/2 in.

2шт.

33

K611266

BOLT

- 5/8 UNF x 2 1/8 in., special (replaces 611265)

16шт.

K617171

WHEEL NUT

- 5/8 UNF, special (for bolt 611266)

16шт.

K617170

NUT

- 5/8 UNF, special (for bolt 611265)

16шт.

34

K603107

BOLT,1/2" x 1 3/8"

- bolt, 1/2 UNC x 1 3/8 in. reductions to rear axle case

20шт.

K19484

LOCK WASHER

WASHER - lock, spring, 1/2 in. reductions to rear axle case

20шт.

Выбрано товаров: 42
