Запчасти Case IH 770A (066) - POWER TAKE-OFF UNIT Auxiliary Drive Units

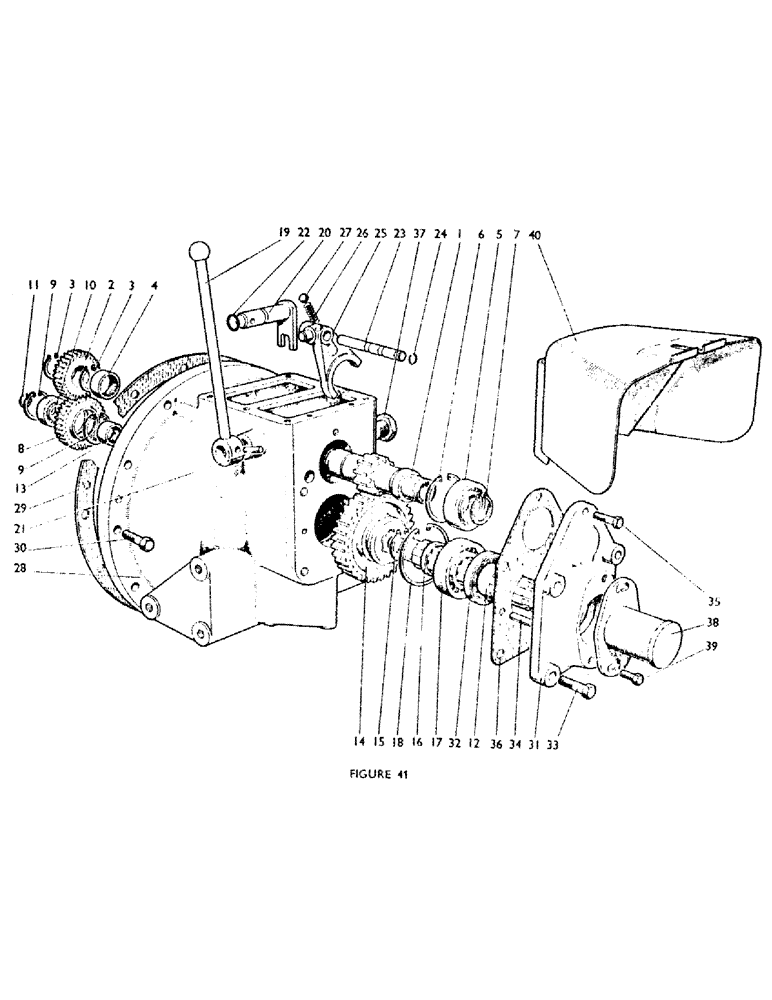

Схема запчастей Case IH 770A - (066) - POWER TAKE-OFF UNIT Auxiliary Drive Units
6
36
13
7
26
39
29
16
25
11
31
17
12
30
23
5
22
8
33
18
21
40
9
1
15
20
19
9
4
3
3
37
38
35
2
14
24
28
10
32
27
34

Артикул

Название

Примечание

Количество

K961811

PTO - unit (complete)

1шт.

1

K910661

GEAR

- driveshaft

1шт.

2

K914725

GEAR

- driving, hydraulic pump

1шт.

K622319

KEY

1шт.

3

K621448

CIRCLIP

- 1 5/16 in., ext.

2шт.

4

K620065

BEARING, NEEDLE

BEARING - needle roller

1шт.

5

K19115

BALL

- bearing

1шт.

6

K621436

RING, SNAP

SNAP RING - circlip, 62 mm, int.

1шт.

7

K13054

RING, SNAP

SNAP RING - circlip, 30 mm, ext.

1шт.

8

K914726

FILLER

- idler gear--hydraulic pump

1шт.

9

K11744

RING, SNAP

SNAP RING - circlip, 1 7/8 in., int.

2шт.

10

K19107

BALL

- bearing

1шт.

11

K11290

RING, SNAP

SNAP RING - circlip, 3/4 in., ext.

1шт.

12

K910663

SHAFT

- driven

1шт.

13

K620066

NEEDLE BEARING

BEARING - needle roller

1шт.

14

K910664

GEAR

- driven

1шт.

15

K14337

CIRCLIP

- 1 3/8 in., ext.

1шт.

16

K914136

SPACER

- washer

1шт.

17

K19021

BALL

- bearing

1шт.

18

K13053

RING, SNAP

SNAP RING - circlip, 72 mm, int.

1шт.

19

K912008

NO LONGER SERVICED

LEVER - operating (supersedes 913814)

1шт.

20

K910666

LEVER

- selector

1шт.

21

K623726

PIN

- Mills (replaces 11246)

1шт.

22

K31682

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

- 9/16 in. int. dia.

1шт.

23

K910669

HITCH PIN

PIN - hitch, selector rod

1шт.

24

K621470

RING, SNAP

SNAP RING - circlip, 12 mm, ext.

1шт.

25

K910670

SELECTOR

- fork

1шт.

26

K24831

SPRING

1шт.

27

K17063

BALL

- 1/4 in.

1шт.

28

K921228

CASE

- (supersedes 912310)

1шт.

K921474

PLATE

- blanking, filter switch, 580001 to 588026 aperture

1шт.

K921220

GASKET

- plate to case, Serial Range: 580001-588026

1шт.

K602700

SCREW,1/4" - 20 x 3/8"

SETSCREW - 1/4 UNC x 3/8 in. plate, 580001 to, Serial Range: 588026-case

2шт.

K19480

SPRING WASHER

- opening, 1/4 in. plate to, 580001 to 588026 case

2шт.

29

K922591

GASKET

- case to rear axle (supersedes 89175)

1шт.

30

K600605

BOLT

- 7/16 UNC x 1 7/8 in. case to rear axle

11шт.

K19483

SPRING WASHER

- spring, 7/16 in. case to rear axle

11шт.

31

K910658

COVER

- end

1шт.

32

K11119

OIL SEAL

- oil

1шт.

33

K600603

BOLT

- 7/16 UNC x 1 5/8 in. end, Serial Range: cover-case

4шт.

K19483

SPRING WASHER

- spring, 7/16 in. end, Serial Range: cover-case

4шт.

34

K14577

DOWEL

- end, Serial Range: cover-case

2шт.

35

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 7/8 in. end cover to case

1шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in. end cover to case (replaces 15498)

1шт.

36

K910659

GASKET

- end, Serial Range: cover-case

1шт.

37

K619528

PLUG

- 7/8 UNF

1шт.

K30085

GASKET

- fibre washer, 7/8 in.

1шт.

38

K909111

COVER

- PTO shaft

1шт.

39

K602840

SCREW

SETSCREW - 5/16 UNC x 1/2 in.

2шт.

K626682

WASHER

- 5/16 in.

2шт.

40

K906893

GUARD

- PTO U378 (906988)

1шт.

K962315

DECAL

- transfer--gear positions (supersedes 961792)

1шт.

Выбрано товаров: 52
