Запчасти Case IH 1412 (M9-1) - ELECTRICAL EQUIPMENT, LAMP BULBS, [A] 1410, 1412 [B] 1410Q, 1412Q [C] 1410SK, 1412SK [D] 1412G (06) - ELECTRICAL SYSTEMS

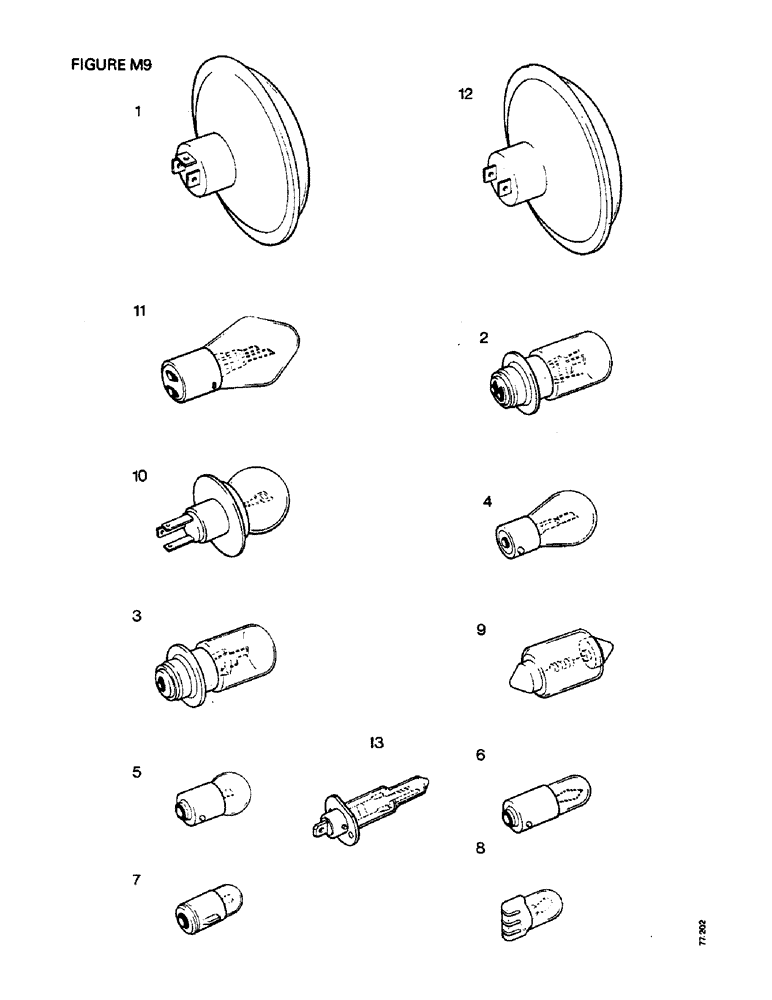

Схема запчастей Case IH 1412 - (M9-1) - ELECTRICAL EQUIPMENT, LAMP BULBS, [A] 1410, 1412 [B] 1410Q, 1412Q [C] 1410SK, 1412SK [D] 1412G (06) - ELECTRICAL SYSTEMS
1
2
5
1
10
4
13
8
6
7
12
9
3

Артикул

Название

Примечание

Количество

1

K915874

HEADLAMP

SEALED BEAM, 12V - 40/40W 3 pin, Butler Part No. 1720-40, G.E.C. Part No. GE 4440 (headlamps - inboard)

2шт.

1410, 1412

1шт.

1410SK, 1412SK

1шт.

1410Q, 1412Q

1шт.

2

K921082

LAMP

DOUBLE CONTACT, 12V - 35/35W B.P.F., British Pre-Focus, Bulter Part No. B275, Lucas Part No. 350 (headlamps - outboard)

2шт.

1410, 1412

1шт.

2

K921083

LAMP

DOUBLE CONTACT, 12V - 35/35W B.P.F., British Pre-Focus, Bulter Part No. B275, Lucas Part No. 350 (headlamps - outboard)

2шт.

1410, 1412

1шт.

3

K943977

LAMP

SINGLE CONTACT, 12V - 35W B.P.F., British Pre-Focus, Butler Part No. B165 (rear flood lamp)

1шт.

1410, 1412

1шт.

1410Q, 1412Q

1шт.

4

K948815/6

SINGLE CONTACT, 12V - 21W S.C.C., small bayonet cap, Butler Part No. B 364, Lucas Part No. 382 (Combined Lamps Stop Tail & Flasher)

6шт.

4

K948813/4

SINGLE CONTACT, 12V - 21W S.C.C., small bayonet cap, Butler Part No. B 364, Lucas Part No. 382 (Side & Flasher)

6шт.

5

SINGLE CONTACT, 12V - 5W S.C.C., Butler Part No. B370, Lucas Part No. 223 (14V/7W) (side lamps and tail lamps)

4шт.

1410, 1412

1шт.

1412G

1шт.

1410Q, 1412Q

1шт.

5

SINGLE CONTACT, 12V - 5W S.C.C., Butler Part No. B370, Lucas Part No. 223 (14V/7W) (side lamps and tail lamps)

2шт.

1410SK, 1412SK

1шт.

6

K773358

PLATE

SINGLE CONTACT, 12V - 5W M.C.C., miniature bayonet cap, Butler Part No. B267, Lucas Part No. 989, Lucas Part No. 989 (rear number plate lamp)

2шт.

1410, 1412

1шт.

1410Q, 1412Q

1шт.

6

K773358

PLATE

SINGLE CONTACT, 12V - 5W M.C.C., miniature bayonet cap, Butler Part No. B267, Lucas Part No. 989, Lucas Part No. 989

1шт.

1410Q

1шт.

7

K9173701/1

SINGLE CONTACT, 12V - 2W B.A.7s, miniature bayonet cap, Lucas Part No. 281, Philips Part No. 12829 (Warning Lamps & Indicator Switch)

5шт.

1410, 1412

1шт.

1410SK, 1412SK

1шт.

1410Q, 1412Q

1шт.

7

K9173701/1

SINGLE CONTACT, 12V - 2W B.A.7s, miniature bayonet cap, Lucas Part No. 281, Philips Part No. 12829 (Warning Lamps & Indicator Switch)

7шт.

1412G

1шт.

7

K92367

SINGLE CONTACT, 12V - 2W B.A.7s, miniature bayonet cap, Lucas Part No. 281, Philips Part No. 12829 (Warning Lamps & Indicator Switch)

5шт.

1410, 1412

1шт.

1410SK, 1412SK

1шт.

1410Q, 141Q

1шт.

7

K92367

SINGLE CONTACT, 12V - 2W B.A.7s, miniature bayonet cap, Lucas Part No. 281, Philips Part No. 12829 (Warning Lamps & Indicator Switch)

7шт.

1412G

1шт.

7

K946374

FLASHER SWITCH

SINGLE CONTACT, 12V - 2W B.A.7s, miniature bayonet cap, Lucas Part No. 281, Philips Part No. 12829 (Warning Lamps & Indicator Switch)

5шт.

1410, 1412

1шт.

1410SK, 1412SK

1шт.

1410Q, 1412Q

1шт.

7

K946374

FLASHER SWITCH

SINGLE CONTACT, 12V - 2W B.A.7s, miniature bayonet cap, Lucas Part No. 281, Philips Part No. 12829 (Warning Lamps & Indicator Switch)

7шт.

1412G

1шт.

8

K947482

SWITCH

CAPLESS, 12V - 1 2W 5 mm Panel, double contact, Lucas Part No. 286, Philips Part No. 12516 (Hazard Warning Switch)

1шт.

9a

K913579

BULB

FESTOON, 12V - 10W (interior lamp), (Replaces K952776)

1шт.

1410Q, 1412Q

1шт.

9b

K954463

BULB

FESTOON, 12V - 5W (side flasher, and interior lamps)

3шт.

1410SK, 1412SK

1шт.

10

C917233

3 LUG P45, 12V - 35/35 watt Continental double filament headlamp, Bulter Part No. B268 (headlamps in-board)

2шт.

1412G

1шт.

10

K944729

LAMP

3 LUG P45, 12V - 35/35 watt Continental double filament headlamp, Bulter Part No. B268 (outboard)

2шт.

1412G

1шт.

11

C917233

DOUBLE CONTACT, Bosch, Unified European, 12V - 35/35 watt (headlamps - in-board)

2шт.

1412G

1шт.

12

SEALED BEAM, single contact, 2 pin, 12V - 35 watt (headlamps in-board)

2шт.

1410, 1412

1шт.

13

HALOGEN, 12V - 55W (rear floodlamp)

1шт.

1410SK, 1412SK

1шт.

Выбрано товаров: 57
