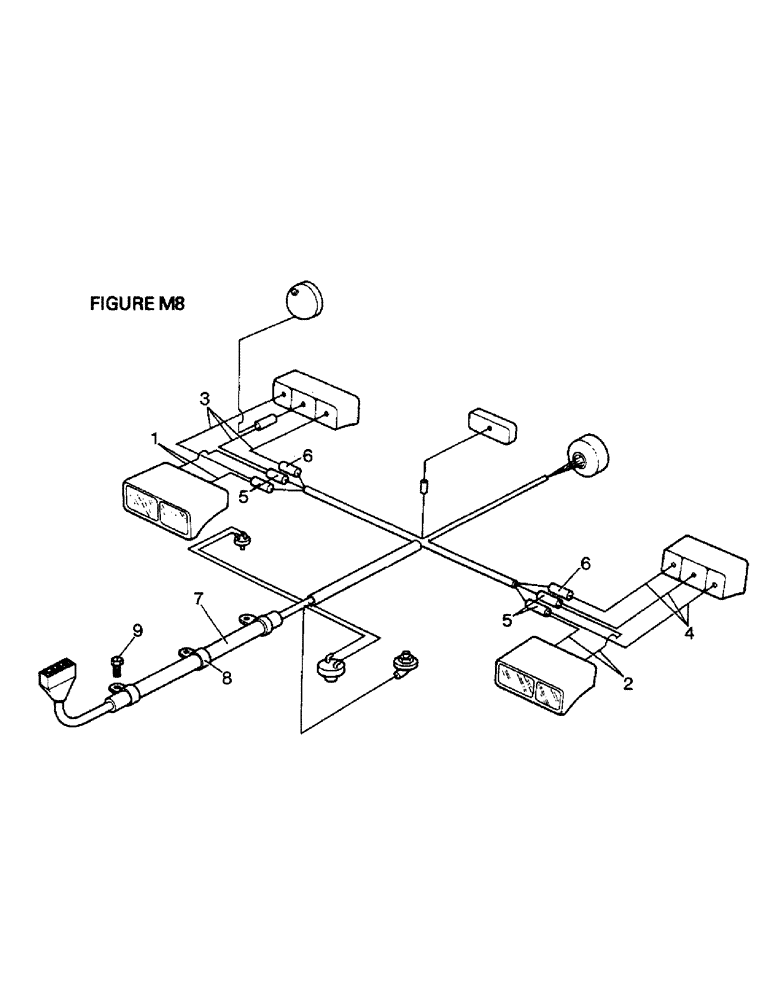

Запчасти Case IH 1412 (M8-1) - ELECTRICAL EQUIPMENT, ELECTRICAL WIRING, SIDE & REAR LAMPS, [A] 1410, [B] 1412, [C] 1412G (06) - ELECTRICAL SYSTEMS

1

K945591

HARNESS

right-hand side/flasher lamp

1шт.

2

K945589

HARNESS

left-hand side/flasher lamp

1шт.

3

K945592

HARNESS

right-hand stop/rear/flasher lamp

1шт.

USE BULB K962761

1шт.

4

K945590

HARNESS

left-hand, stop/rear/flasher lamp

1шт.

USE BULB K963886

1шт.

K625000

CLIP

3/8 in, Serial Range: (harness-fenders)

14шт.

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

no. 10 UNF x 1/2 in (harness to fenders)

2шт.

K626310

WASHER

3/16 in, Serial Range: (harness-fenders)

2шт.

K626340

RING

SPRING WASHER, 3/16 in, Serial Range: (harness-fenders)

2шт.

K617080

NUT

no. 10 UNF, Serial Range: (harness-fenders)

2шт.

5

K86230

CONNECTOR, ELEC

DOUBLE CONNECTOR

5шт.

USE BULB K962763

1шт.

6

K67916

ELEC CONNECTOR

SINGLE CONNECTOR

2шт.

K10518

BUCKLE

CLIP, harness to dump valve pipe

3шт.

7a

K952147

HARNESS

WIRING HARNESS, rear (full fenders) (eff. S/N Note A)

1шт.

1410

1шт.

1410, 1412-11200753

1шт.

7b

K952587

HARNESS

WIRING HARNESS, rear (full fenders) (eff. S/N Note A)

1шт.

1412

1шт.

1410, 1412-11200753

1шт.

7c

K947813

HARNESS

WIRING HARNESS, rear (full fenders) (up to S/N Note A)

1шт.

1410

1шт.

1410, 1412-11200753

1шт.

7d

K947255

HARNESS

WIRING HARNESS, rear (full fenders) (up to S/N Note A)

1шт.

1412

1шт.

1410, 1412-11200753

1шт.

7e

K952587

HARNESS

WIRING HARNESS, rear (full fenders)

1шт.

1412G

1шт.

USE BULB K962760

1шт.

K621633

CABLE

CLIP, stoplight lead to frame platform

1шт.

8

K625002

FASTENER

CLIP (harness to gearbox cover)

3шт.

9

K602733

SCREW

SETSCREW, 1/4 UNC x 5/8 in (harness to gearbox cover)

3шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in (harness to gearbox cover)

3шт.

REF#9A USE BULB K913579

1шт.

K625003

CLIP

3/8 in harness to seat (eff. S/N Note A)

2шт.

REF#9B USE BULB K954463

1шт.

1410, 1412-11200753

1шт.

K624522

SCREW

SELF-TAPPING SCREW, 1/2 in (earth, Serial Range: leads-fenders)

4шт.

K11519

WASHER

LOCKWASHER, 3/16 in (earth, Serial Range: leads-fenders)

4шт.

K626340

RING

SPRING WASHER, 3/16 in (earth, Serial Range: leads-fenders)

4шт.

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

5/8 in (earth leads to fenders)

8шт.

K627724

GROMMET

1 3/16 in (eff. S/N Note B)

1шт.

1410, 1412-11200753 B 1410-11201418: 1412-11201584

1шт.

1410

1шт.

1412

1шт.

K627726

GROMMET

1 in (up to S/N Note B)

1шт.

1410, 1412-11200753 B 1410-11201418: 1412-11201584

1шт.

1410

1шт.

1412

1шт.

K627725

GROMMET

1 1/4 in

2шт.

K627727

GROMMET

5/8 in

1шт.

K627724

GROMMET

1 3/16 in

1шт.

1412G

1шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in, Serial Range: (harness-fenders)

12шт.

K607043

NUT

1/4 UNC, Serial Range: (harness-fenders)

12шт.
