Запчасти Case IH 1412 (M3-1) - ELECTRICAL EQUIPMENT, STARTER, SWITCHES AND WARNING LAMPS (06) - ELECTRICAL SYSTEMS

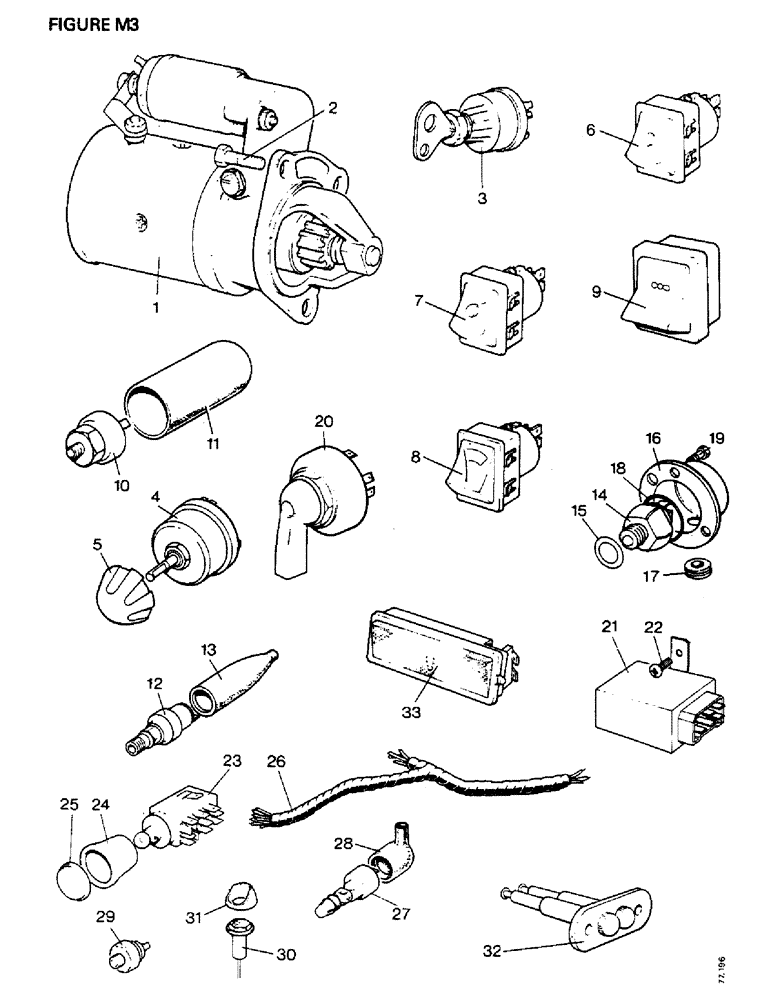

Схема запчастей Case IH 1412 - (M3-1) - ELECTRICAL EQUIPMENT, STARTER, SWITCHES AND WARNING LAMPS (06) - ELECTRICAL SYSTEMS
26
8
17
15
12
20
33
19
16
10
29
21
27
32
14
5
28
23
8
7
30
4
25
13
6
24
11
1
3
22
3
18
2

Артикул

Название

Примечание

Количество

1a

K954700

STARTER MOTOR

STARTER, (Bosch 0-001-362-060)

1шт.

1b

K919752

STARTING MOTOR

STARTER, (Lucas 26379A)

1шт.

1c

87297386

REMAN-STARTER

REMANUFACTURED STARTER - For N.A. Only

1шт.

87297387

CORE-STARTER

Return number - For N.A. only

1шт.

2

K600406

BOLT

BOLT, 3/8 UNC x 1 3/4 in, Serial Range: (starter-engine)

2шт.

K600410

BOLT

BOLT, 3/8 UNC x 2 1/4 in, Serial Range: (starter-engine)

1шт.

280136

NUT,3/8"-16, G8

NUT, (Starter to engine) 3/8"-16, G8

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

3шт.

3

K929365

IGNITION SWITCH

SWITCH, isolating, (Lucas 35670) for thermostart

1шт.

K920929

KEY

KEY, isolating and starter switch

1шт.

4

K914091

LIGHT SWITCH

SWITCH, lighting, (Lucas 54033370)

1шт.

1410, 1412

1шт.

1412G

1шт.

5

K901981

KNOB

KNOB, lighting switch

1шт.

1410, 1412

1шт.

1412G

1шт.

6

K949235

LIGHT SWITCH

SWITCH, headlamp dip (Lucas 30876)

1шт.

1410SK, 1412SK

1шт.

1410Q, 1412Q

1шт.

7

K949234

LIGHT SWITCH

SWITCH, side and headlamps (Lucas 30875)

1шт.

1410SK, 1412SK

1шт.

1410Q, 1412Q

1шт.

8a

K954506

SWITCH

SWITCH, windscreen wiper/washer, (Lucas 54340801) (eff. S/N Note B)

1шт.

1410Q, 1412Q-11203600

1шт.

1410Q, 1412Q

1шт.

8b

K691923

SWITCH

SWITCH, windscreen wiper (Lucas 39299) (up to S/N Note B)

1шт.

1410Q, 1412Q-11203600

1шт.

1410Q, 1412Q

1шт.

K946869

CONNECTOR, ELEC

CONNECTOR CONNECTOR, wiper switch

1шт.

1410SK, 1412SK

1шт.

9

K200023

SWITCH

SWITCH, heater, 3 position, (Lucas 30624) replaces K953351)

1шт.

1410Q, 1412Q

1шт.

10

K903851

PRESSURE SWITCH

SWITCH, oil pressure (AC-Delco 7954181)

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

FIBRE WASHER, 3/8 in

1шт.

11

K947518

COVER

COVER, engine oil switch

1шт.

12

K921317

SENDER UNIT

SWITCH, hydraulic oil filter lamp (AC-Delco 7954473) (up to S/N Note A)

1шт.

1410, 1412, 1412G-11200753

1шт.

13

K923874

COVER

COVER, hydraulic oil filter switch (up to S/N Note A)

1шт.

1410, 1412, 1412G-11200753

1шт.

14

K940288

SWITCH

SWITCH, starter safety, (Lucas 39686)

1шт.

15

K626895

SHIM,.002" Thk

SHIM, .002" Thk

1шт.

K626858

SHIM,.005" Thk

SHIM, .005" Thk

1шт.

K626894

SHIM,.010" Thk

SHIM, .010" Thk

1шт.

16

K940284

COVER

COVER, safety switch

1шт.

1410, 1412

1шт.

1412G

1шт.

17

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

GROMMET, switch cover

1шт.

1410, 1412

1шт.

1412G

1шт.

18

K15535

O-RING,1.484" ID x 1.762" OD x 0.139"

'O' RING, 1 1/2 in internal diameter

1шт.

1410, 1412

1шт.

1410Q, 1412Q

1шт.

19

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SETSCREW, 1/4 UNC x 1/2 in

3шт.

1410, 1412

1шт.

1412G

1шт.

20

K946374

FLASHER SWITCH

SWITCH, direction indicators (Hella 6RB00159502)

1шт.

21a

K948611

FLASHER UNIT

FLASHER UNIT, indicators, (Hella 4DM00223305)

1шт.

1410, 1412

1шт.

1410SK, 1412SK

1шт.

1410Q, 1412Q

1шт.

21b

K947481

FLASHER UNIT

FLASHER UNIT, indicators, (Hella 4DN00305900)

1шт.

1412G

1шт.

22

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

SCREW, 1/4 UNC x 5/8 in

1шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in

1шт.

K607043

NUT

NUT, 1/4 UNC

1шт.

23

K947482

SWITCH

SPARE PART SWITCH, hazard warning, (Hella 11/4), Includes: Ref. 24 and 25

1шт.

24

K964913

KNOB

KNOB

1шт.

25

K964914

LENS

LENS

1шт.

K950592

WASHER

WASHER

1шт.

K950593

COVER

RUBBER SEAL

1шт.

26

K947483

HARNESS

SPARE PART HARNESS, hazard warning

1шт.

1410, 1412

1шт.

27

K929737

SWITCH ASSY

SWITCH, stop lamps (AC-Delco 1533672)

1шт.

1410, 1412

1шт.

1412G

1шт.

28

K943744

COVER

COVER, stop lamp switch

1шт.

1410, 1412

1шт.

1412G

1шт.

29

K962757

BULB

SWITCH, stop lamps (Lucas 30874A), (Replaces K951976)

1шт.

1410SK, 1412SK

1шт.

1410Q, 1412Q

1шт.

30

K917371

SIGHTGLASS

WARNING LAMP, low oil pressure (green)

1шт.

K917370

PROTECTIVE COVER

WARNING LAMP (red)

2шт.

1410, 1412

1шт.

1410SK, 1412SK

1шт.

1410Q, 1412Q

1шт.

K917370

PROTECTIVE COVER

WARNING LAMP (red)

1шт.

1412G

1шт.

K921367

SIGHTGLASS

WARNING LAMP, hydraulic filter (amber) (up to S/N Note A)

1шт.

1410, 1412, 1412G-11200753

1шт.

K943929

INTERIOR LIGHT

SPARE PART WARNING LAMP (blue)

1шт.

1412G

1шт.

31

K919304

GUARD

HOOD, warning lamps

4шт.

K627739

PLUG

GROMMET RUBBER, 17/32 in diameter (eff. S/N Note A)

1шт.

1410SK, 1412SK

1шт.

1410, 1412, 1412G-11200753

1шт.

1410Q, 1412Q

1шт.

32

K913567

INDICATOR

INDICATOR LAMP, double

1шт.

1412G

1шт.

33

K952776

INTERIOR LIGHT

LAMP, interior

1шт.

1410Q, 1412Q

1шт.

Выбрано товаров: 101
