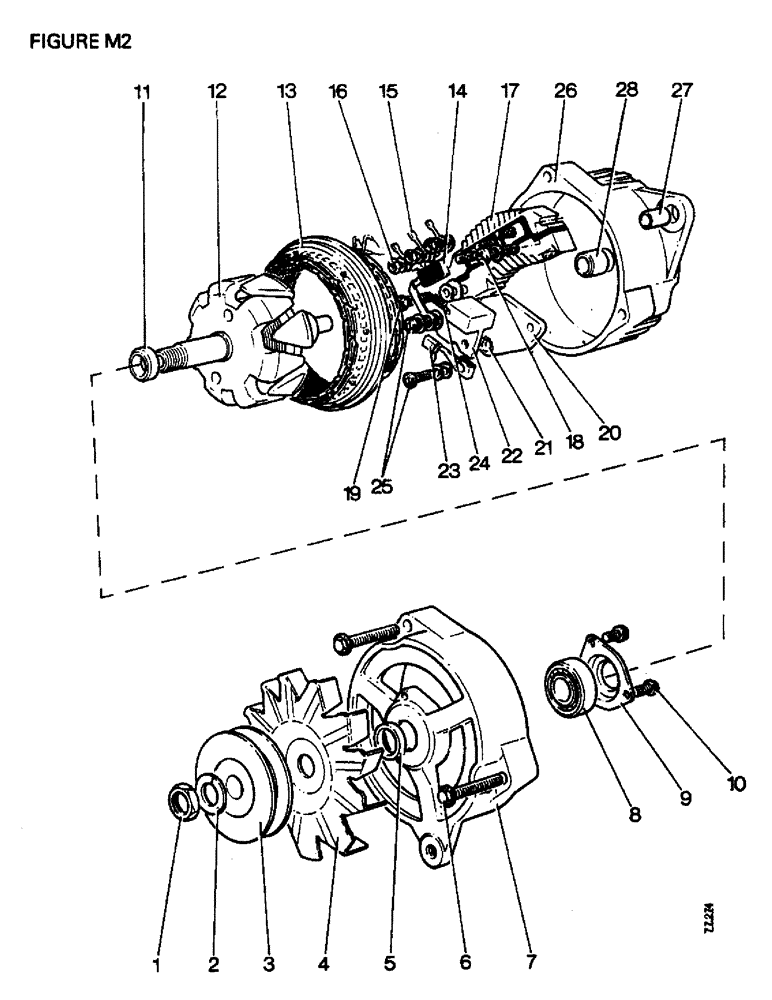

Запчасти Case IH 1412 (M2-1) - ELECTRICAL EQUIPMENT, ALTERNATOR, AC DELCO, (EFF. S/N NOTE A) (06) - ELECTRICAL SYSTEMS

K953785

ALTERNATOR

ALTERNATOR, (AC 7982952), Includes: Ref. 2 - 28

1шт.

92293C1

ALTERNATOR

Alternator, 12V, 45 Amp, W/Fan and Pulley

1шт.

92293C1R

REMAN-ALTERNATOR

Reman For New PN 92293C1

1шт.

92293C1C

CORE-ALTERNATOR

Return Number

1шт.

92293C1GV

ALTERNATOR

Value, 12 Volt, 45 Amp, W/Fan and Pulley

1шт.

K956426

ALTERNATOR

Alternator

1шт.

104020A1GV

ALTERNATOR

Value, 12V, 26A

1шт.

104020A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 26 AMP Alternator

1шт.

104020A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 26 AMP Alternator

1шт.

104020A1RGV

ALTERNATOR

REMANUFACTURED 12 VOLT, 26 AMP ALTERNATOR

1шт.

K965050

NUT

NUT, pulley retaining (AC 7982561)

1шт.

2

K965051

WASHER

SPRING WASHER (AC 1941978)

1шт.

3

K953787

PULLEY

SPARE PART PULLEY (AC 7982775)

1шт.

4

K953786

FAN

FAN (AC 7982515)

1шт.

5

K965052

COLLAR

COLLAR, outer (AC 7982701)

1шт.

6

K965053

BOLT

THROUGH BOLT (AC 7982619)

3шт.

K965054

FRAME

FRAME ASSEMBLY, drive end (AC 7982954), Includes: Ref. 7 - 9

1шт.

7

K965056

FRAME

FRAME, drive end (AC 7982668)

1шт.

8

K965058

BALL BEARING

BALL BEARING (AC 7982956)

1шт.

9

K965059

RETAINER

SPARE PART RETAINER PLATE (AC 1955495)

1шт.

10

K965060

SCREW

SCREW, retainer plate (AC 120216)

3шт.

11

K965061

COLLAR

COLLAR, inner (AC 7982597)

1шт.

12

K965062

ROTOR

ROTOR ASSEMBLY (AC 7982522)

1шт.

13

K965064

STATOR

STATOR ASSEMBLY (AC 7982511)

1шт.

14

K965065

DIODE

DIODE TRIO (AC 3472312)

1шт.

15

K965078

TERMINAL CONNECTOR

TERMINAL, positive (AC 7982880)

1шт.

16

K965063

NUT

NUT (AC 11010122)

3шт.

17

K965070

CONTACT

RECTIFIER BRIDGE AND INSULATOR ASSEMBLY (AC 7982716)

1шт.

18

K965066

SCREW

SCREW (AC 7982711)

1шт.

19

K965067

SCREW

SCREW (AC 7982563)

1шт.

K965068

WASHER

WASHER (AC 862106)

2шт.

K965069

WASHER

SPRING WASHER (AC 131182)

3шт.

20

K965077

REGULATOR

REGULATOR ASSEMBLY (AC 7982685)

1шт.

21

K965076

SCREW

SCREW, regulator mounting (AC 7982594)

1шт.

K965072

BRUSH HOLDER

HOLDER, BRUSH BRUSH HOLDER ASSEMBLY (AC 7982589), Includes: Ref. 22 - 24

1шт.

22

K965075

HOLDER

BRUSH HOLDER (AC 7982587)

1шт.

23

K965073

TERMINAL CONNECTOR

BRUSH (AC 7982543)

2шт.

24

K965074

SPRING

SPRING (AC 1964117)

2шт.

25

K965071

SCREW

SCREW, brush holder (AC 1876681)

2шт.

K965081

FRAME

FRAME ASSEMBLY, slip ring end (AC 7982861), Includes: Ref. 26 and 27

1шт.

26

K965082

FRAME

FRAME, slip ring (AC 7982687)

1шт.

27

K965083

BUSHING

BUSH (AC 7982534)

1шт.

28

K965084

ROLLER

ROLLER BEARING (AC 7982870)

1шт.

K965079

BLOCK

TERMINAL BLOCK

1шт.

K965080

CLIP

CLIP, socket

1шт.

K950496

FAN

SAFETY GUARD, fanbelt, Replaces K942045

1шт.

K950495

ADJUSTER

ADJUSTER STRAP, alternator, Replaces K942044

1шт.
