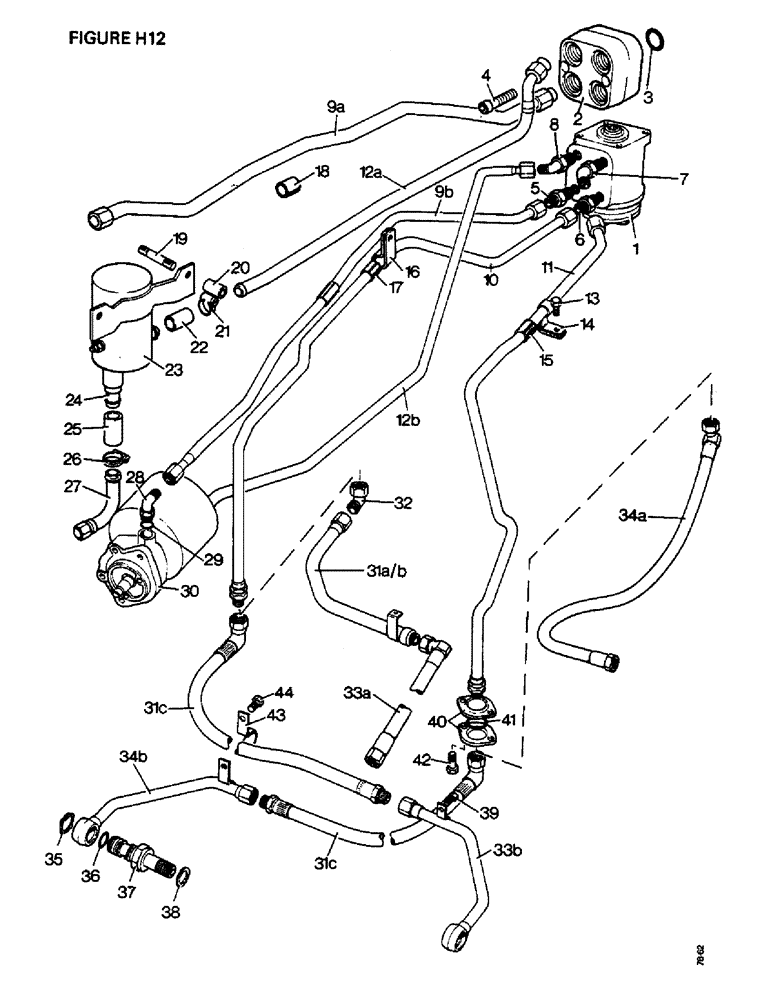

Запчасти Case IH 1412 (H12-1) - STEERING & FRONT AXLE, HYDROSTATIC POWRER STEERING, PIPES & FITTINGS, TRACTORS W/CAB Steering & Front Axle

1a

K946083

VALVE

STEERING VALVE, Orbitrol OSP 125

1шт.

1410, 1412

1шт.

1412G

1шт.

1b

K924898

VALVE

STEERING VALVE, Orbitrol OSP 100

1шт.

1410 4WD

1шт.

K962387

GASKET KIT

SEAL PACK, steering valve

1шт.

2a

K948588

VALVE

BLOCK

1шт.

1412G

1шт.

2b

K951096

FITTING

CONNECTING BLOCK, Includes: Ref. 3 and 4A

1шт.

1410 4WD

1шт.

3

K15028

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

'O' RING

4шт.

1412G

1шт.

4a

K940381

CAP

SCREW, 10 mm x 1 9/16 in

2шт.

1412G

1шт.

4b

K624683

SCREW

10 x 50 mm

2шт.

1410 4WD

1шт.

5a

K626062

FITTING

UNION, 3/4 - 7/8 UNF

1шт.

1410 4WD

1шт.

1410, 1412

1шт.

K623591

O-RING

'O' RING, 41/64 internal diameter

1шт.

1410 4WD

1шт.

1410, 1412

1шт.

5b

K626066

FITTING

UNION, 7/8 UNF - 1/2 BSP

1шт.

1412G

1шт.

K15143

WASHER

COPPER WASHER, 3/4 in

1шт.

1412G

1шт.

6a

K626039

FITTING

UNION, 3/4 UNF

1шт.

1410 4WD

1шт.

1410, 1412

1шт.

K623591

O-RING

'O' RING, 41/64 internal diameter

1шт.

1410 4WD

1шт.

1410, 1412

1шт.

6b

K690908

FITTING

UNION, 3/4 UNF - 1/2 BSP

1шт.

1412G

1шт.

K15143

WASHER

COPPER WASHER, 3/4 in

1шт.

1412G

1шт.

7a

K617750

FITTING

ELBOW, 3/4 UNF

1шт.

1410 4WD

1шт.

1410, 1412

1шт.

K623591

O-RING

'O' RING, 41/64 internal diameter

1шт.

1410 4WD

1шт.

1410, 1412

1шт.

7b

K617751

FITTING

ELBOW, 3/4 UNF - 1/2 BSP

1шт.

K15143

WASHER

COPPER WASHER, 3/4 in

1шт.

7c

K626039

FITTING

UNION, 3/4 UNF

1шт.

1410 4WD

1шт.

K623591

O-RING

'O' RING, 41/64 internal diameter

1шт.

1410 4WD

1шт.

7d

K690908

FITTING

UNION, 3/4 UNF - 1/2 BSP

1шт.

1412G

1шт.

K15143

WASHER

COPPER WASHER, 3/4 in

1шт.

1412G

1шт.

8a

K617750

FITTING

ELBOW, 3/4 UNF

1шт.

1410, 1412

1шт.

K623591

O-RING

'O' RING, 41/64 internal diameter

1шт.

1410, 1412

1шт.

8b

K617751

FITTING

ELBOW, 3/4 UNF

1шт.

1412G

1шт.

K15143

WASHER

COPPER WASHER, 3/4 in

1шт.

1412G

1шт.

9a

K946084

PIPE

pump to steering valve

1шт.

1412G

1шт.

9b

K945012

PIPE

pump to steering valve

1шт.

1410 4WD

1шт.

1410, 1412

1шт.

10a

K949871

PIPE

steering, Serial Range: valve-elbow

1шт.

1412G

1шт.

10b

K946904

PIPE

steering, Serial Range: valve-elbow

1шт.

1410 4WD

1шт.

1410, 1412

1шт.

11a

K949872

PIPE

steering, Serial Range: valve-hose

1шт.

1412G

1шт.

11b

K946903

PIPE

steering, Serial Range: valve-hose

1шт.

1410 4WD

1шт.

1410, 1412

1шт.

12a

K949733

PIPE

steering, Serial Range: valve-reservoir

1шт.

1412G

1шт.

12b

K945013

PIPE

steering, Serial Range: valve-pump

1шт.

1410 4WD

1шт.

1410, 1412

1шт.

13

K602901

SCREW

SETSCREW, 3/8 UNC x 5/8 in (pipe to tank bracket)

1шт.

14

K621705

CLIP

(pipe to tank bracket)

1шт.

15

K628244

STRIP

RUBBER STRIP (pipe to tank bracket)

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (pipe to tank bracket)

1шт.

280136

NUT,3/8"-16, G8

(Pipe to tank bracket) 3/8"-16, G8

1шт.

16

K621704

CLIP

(pipe to tappet cover)

1шт.

17

K628244

STRIP

RUBBER STRIP (pipe to tappet cover)

2шт.

18

K946125

TUBE

NYLON TUBE, 3/4 x 1 in

3шт.

19

K608299

STUD

3/8 UNC x 3 1/4 in, special

2шт.

1412G

1шт.

20

K86372

BUSHING

DISTANCE PIECE

2шт.

1412G

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

2шт.

1412G

1шт.

280136

NUT,3/8"-16, G8

2шт.

1412G

1шт.

21

K14679

HOSE

CLIP

2шт.

1412G

1шт.

22

K924931

HOSE

1шт.

1412G

1шт.

23

K949703

RESERVOIR

ASSEMBLY, see Fig. H10, Includes: Ref. 24

1шт.

1412G

1шт.

24

K949561

CONNECTOR, ELEC

CONNECTOR

1шт.

1412G

1шт.

25

K924931

HOSE

1шт.

1412G

1шт.

26

K14679

HOSE

CLIP

2шт.

1412G

1шт.

27

K949700

PIPE

reservoir

1шт.

1412G

1шт.

28

K622110

FITTING

ELBOW, 9/16 UNF, pump outlet

1шт.

29

K623649

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

'O' RING, special, elbow

1шт.

30

K944944

PUMP

AND RESERVOIR ASSEMBLY, see Fig. H10

1шт.

31a

K949726

PIPE

elbow to flexible pipe

1шт.

31b

K949727

PIPE

elbow to flexible pipe

1шт.

1410 4WD

1шт.

32

K622115

NUT

ELBOW, 3/4 UNF

1шт.

1410 4WD

1шт.

31c

K952959

HOSE

PIPE, flexible

2шт.

1410, 1412

1шт.

1412G

1шт.

33a

K950819

PIPE

flexible, M18 - 3/4 UNF x 10 in (to steering ram)

1шт.

1410 4WD

1шт.

34a

K950818

PIPE

flexible, M18 - 3/4 UNF x 30 in (to steering ram)

1шт.

1410 4WD

1шт.

33b

K945903

PIPE

left-hand (to steering cylinder)

1шт.

1410, 1412

1шт.

1412G

1шт.

34b

K945901

PIPE

right-hand (to steering cylinder)

1шт.

1410, 1412

1шт.

1412G

1шт.

35

K621476

RING, SNAP

CIRCLIP (to steering cylinder)

2шт.

1410, 1412

1шт.

1412G

1шт.

36

K24555

O-RING,0.737" ID x 0.943" OD x 0.103"

'O' RING (to steering cylinder)

4шт.

1410, 1412

1шт.

1412G

1шт.

37

K626070

FITTING

UNION, 3/4 UNF, special (to steering cylinder)

2шт.

1410, 1412

1шт.

1412G

1шт.

38

K948565

WASHER

0.185 in (to steering cylinder)

1шт.

1410, 1412

1шт.

1412G

1шт.

K948566

WASHER

0.189 in (to steering cylinder)

1шт.

1410, 1412

1шт.

1412G

1шт.

K948567

WASHER

0.197 in (to steering cylinder)

1шт.

1410, 1412

1шт.

1412G

1шт.

K948643

WASHER

0.201 in (to steering cylinder)

1шт.

1410, 1412

1шт.

1412G

1шт.

39

K604477

SCREW

SETSCREW, 5/16 UNC x 5/8 in

2шт.

1410, 1412

1шт.

1412G

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

2шт.

1410, 1412

1шт.

1412G

1шт.

40

K945907

RING, SNAP

CLAMP PLATE

4шт.

41

K628856

O-RING,0.649" ID x 0.25" Width

'O' RING, 5/8 in internal diameter

2шт.

42

K602704

SCREW

SETSCREW, 1/4 UNC x 7/8 in

4шт.

K19470

WASHER

1/4 in

8шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in

4шт.

43

K952958

CLIP

right-hand flexible pipe

1шт.

1410, 1412

1шт.

1412G

1шт.

44

K602803

BOLT

SETSCREW, 5/16 UNC x 3/4 in

1шт.

1410, 1412

1шт.

1412G

1шт.
