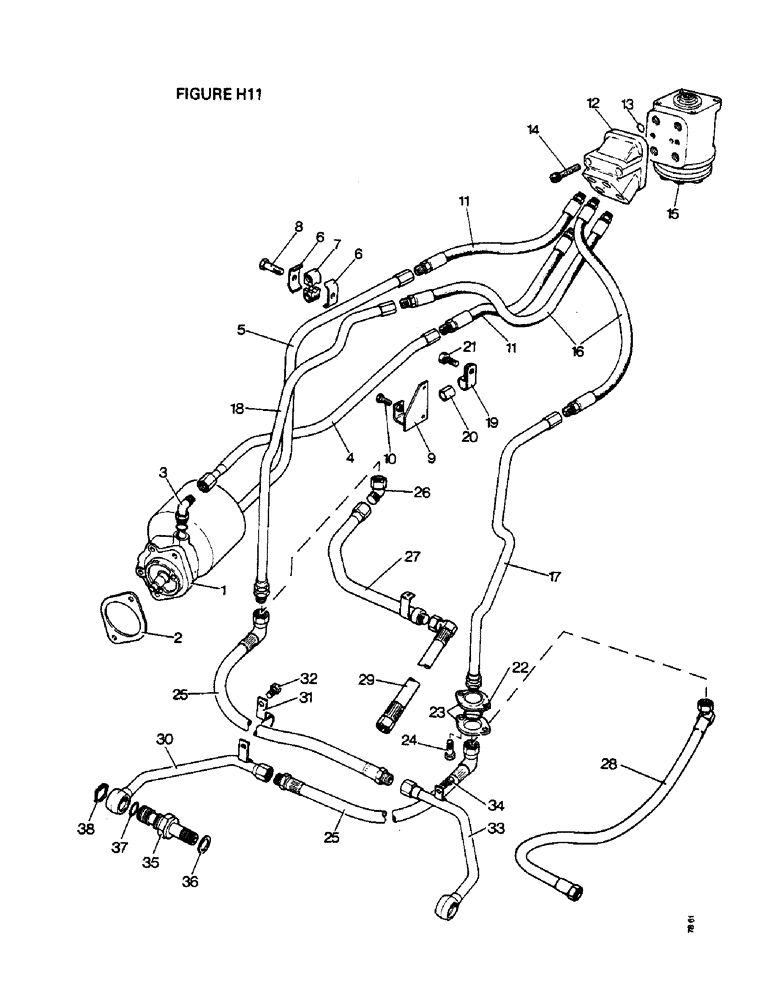

Запчасти Case IH 1412 (H11-1) - STEERING & FRONT AXLE, HYDROSTATIC POWER STEERING, PIPES & FITTINGS, TRACTORS W/ CAB Steering & Front Axle

1

K944944

PUMP

AND RESERVOIR ASSEMBLY, Fig. H10

1шт.

2

K919729

GASKET,0.76mm Thk

1шт.

3

K622110

FITTING

ELBOW, 9/16 UNF, pump outlet

1шт.

K623649

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

'O' RING, special, elbow

1шт.

4

K951983

PIPE

pump outlet

1шт.

5

K951984

PIPE

pump return

1шт.

6

K951982

SHIM

CLAMP, pipes

2шт.

7

K951993

SLEEVE

clamps

2шт.

8

K600406

BOLT

3/8 UNC x 1 3/4 in, Serial Range: (clamps-bracket)

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, Serial Range: (clamps-bracket)

1шт.

9

K951994

BRACKET

clamps

1шт.

10

K602902

SCREW

SETSCREW, 3/8 UNC x 3/4 in (bracket to clutch housing)

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (bracket to clutch housing)

1шт.

11

K951426

HOSE

PIPE, flexible

2шт.

K623589

O-RING

'O' RING, special, pipes

2шт.

12

K951096

FITTING

CONNECTING BLOCK

1шт.

13

K15028

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

'O' RING, 7/8 in internal diameter (connecting, Serial Range: block-valve)

4шт.

14

K624683

SCREW

M10 x 50 mm (connecting, Serial Range: block-valve)

2шт.

15a

K946083

VALVE

STEERING VALVE, OSP 125 [A]

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

15b

K924898

VALVE

STEERING VALVE, OSP 100

1шт.

1410Q 4WD, 1410SK 4WD

1шт.

16

K952215

HOSE

PIPE, flexible, Serial Range: valve-pipes

2шт.

K623589

O-RING

'O' RING, special, pipes

2шт.

17

K951985

PIPE

left-hand (to steering ram)

1шт.

18

K951986

PIPE

right-hand (to steering ram)

1шт.

19

K621717

CLIP

PIPE CLIP

2шт.

20

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

NYLON TUBE

2шт.

21

K602902

SCREW

SETSCREW, 3/8 UNC x 3/4 in (pipe clips and clamp bracket to clutch housing)

2шт.

K19472

WASHER

3/8 in (pipe clips and clamp bracket to clutch housing)

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (pipe clips and clamp bracket to clutch housing)

2шт.

22

K628856

O-RING,0.649" ID x 0.25" Width

'O' RING, special (pipes to main frame)

2шт.

23

CASK945907

PLATE

CLAMP PLATES (pipes to main frame)

4шт.

K19470

WASHER

1/4 in (pipes to main frame)

8шт.

24

K602704

SCREW

SETSCREW, 1/4 UNC x 7/8 in (pipes to main frame)

4шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in (pipes to main frame)

4шт.

25

K952959

HOSE

PIPE, flexible, 3/4 UNF x 17 7/8 in

2шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

26

K622115

NUT

ELBOW, 3/4 UNF

1шт.

1410Q 4WD, 1410SK 4WD

1шт.

27

K949727

PIPE

elbow to flexible pipe

1шт.

1410Q 4WD, 1410SK 4WD

1шт.

28

K950818

PIPE

flexible, M18 - 3/4 UNF x 30 in

1шт.

1410Q 4WD, 1410SK 4WD

1шт.

29

K950819

PIPE

flexible, M18 - 3/4 UNF x 10 in

1шт.

1410Q 4WD, 1410SK 4WD

1шт.

K626039

FITTING

UNION, 3/4 UNF (steering ram)

1шт.

1410Q 4WD, 1410SK 4WD

1шт.

K623591

O-RING

'O' RING, special, union (steering ram)

1шт.

1410Q 4WD, 1410SK 4WD

1шт.

30

K945901

PIPE

right-hand

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

31

K952958

CLIP

pipe

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

32

K602803

BOLT

SETSCREW, 5/16 UNC x 3/4 in

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

33

K945903

PIPE

left-hand

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

34

K604477

SCREW

SETSCREW, 5/16 UNC x 5/8 in

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

35

K626070

FITTING

UNION, 3/4 UNF, special

2шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

36a

K948565

WASHER

0.185 in

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

36b

K948566

WASHER

0.189 in

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

36c

K948567

WASHER

0.197 in

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

36d

K948643

WASHER

0.201 in

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

37

K24555

O-RING,0.737" ID x 0.943" OD x 0.103"

'O' RING, 3/4 in diameter

4шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

38

K621476

RING, SNAP

CIRCLIP, 24 mm, external

2шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.
