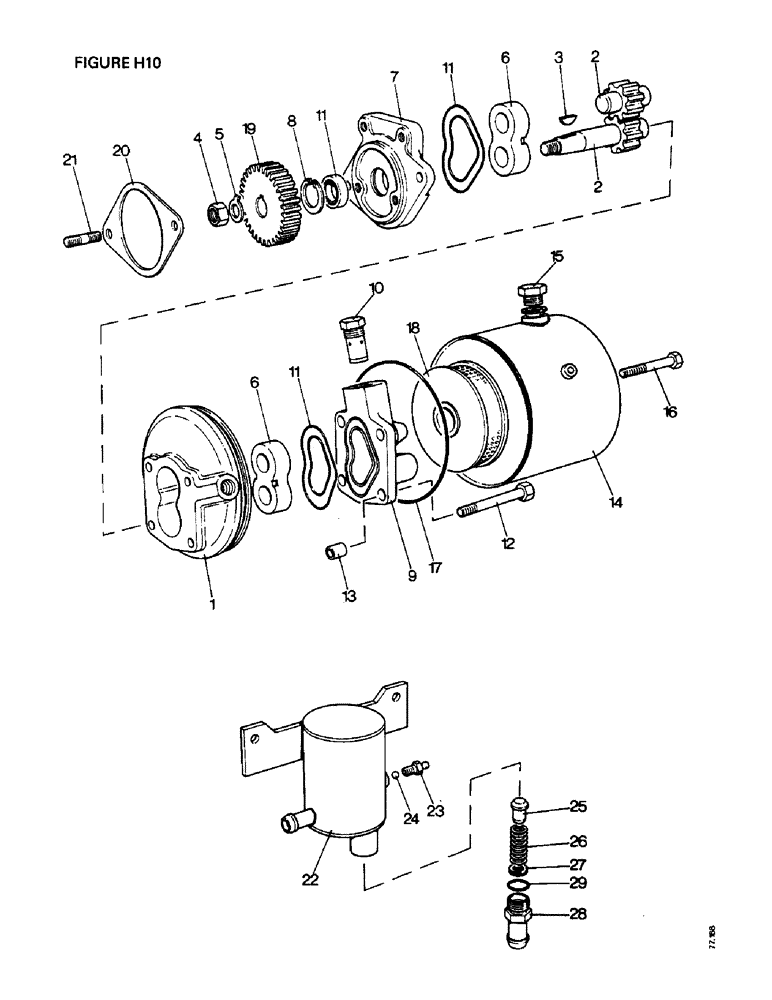

Запчасти Case IH 1412 (H10-1) - STEERING AND FRONT AXLE, STEERING PUMP AND RESERVOIR, [A]1410,1410Q,1410SK,1412,1412Q,1412SK[B]1412G Steering & Front Axle

1

K944944

PUMP

AND RESERVOIR ASSEMBLY, Plessey 550/1/17331, Includes: Ref. 2 - 18

1шт.

K964815

GEAR

ROTOR PACK

1шт.

2

K964934

GEAR

ROTORS, pair

1шт.

3

K19604

KEY

Woodruff No. 405

1шт.

4

425-157

JAM NUT,Jam, 7/16"-20, G5

7/16 UNF

1шт.

5

K626380

WASHER

TABWASHER

1шт.

6

K962189

BEARING

S, pair

1шт.

7

K964925

FLANGE

MOUNTING FLANGE

1шт.

8

K962097

RING, SNAP

CIRCLIP, 13/16 in diameter

1шт.

9

K964923

COVER

pump body

1шт.

10

K964932

VALVE

RELIEF VALVE, pre-set assembly

1шт.

11

K964935

SEAL

SEAL PACK, oil seal and 'O' rings

1шт.

12

K964921

BOLT

3/8 UNC x 3 1/8 in, Serial Range: (cover-body)

4шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, Serial Range: (cover-body)

4шт.

13

K964920

PIN

RING DOWEL, Serial Range: (cover-body)

2шт.

14

K964933

TANK

RESERVOIR

1шт.

15

K623825

PLUG

FILLER PLUG, 1/2 in BSP

1шт.

K626769

WASHER

SEALING WASHER, filler plug

1шт.

16

K964930

BOLT

SETSCREW, 5/16 UNC x 2 1/4 in

1шт.

K964928

SEAL

ING WASHER, 5/16 in

1шт.

17

K964929

RESERVOIR

SEALING RING, Serial Range: reservoir-pump

1шт.

18

K964931

FILTER

ELEMENT, with sealing rings

1шт.

19

K945098

PINION

GEAR, 28 teeth

1шт.

20

K919729

GASKET,0.76mm Thk

, Serial Range: (pump-engine)

1шт.

21

K608147

STUD

5/16 UNC x 1 in, Serial Range: (pump-engine)

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: (pump-engine)

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC (pump to engine)

2шт.

K949703

RESERVOIR

AND VALVE ASSEMBLY, Includes: Ref. 22 - 29

1шт.

1412G

1шт.

22

K949704

RESERVOIR

1шт.

1412G

1шт.

23

K910104

SCREW

BLEED SCREW, 1/8 BSP

1шт.

1412G

1шт.

24

K11286

BALL

STEEL BALL, 5/16 in diameter

1шт.

1412G

1шт.

25

K949562

PLUNGER

valve

1шт.

1412G

1шт.

26

K24887

SPRING

valve plunger

1шт.

1412G

1шт.

27

K626922

SHIM,.030" Thk

1шт.

1412G

1шт.

28

K949561

CONNECTOR, ELEC

CONNECTOR, 7/8 UNF

1шт.

1412G

1шт.

29

K623592

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

'O' RING, 3/4 in internal diameter

1шт.

1412G

1шт.
