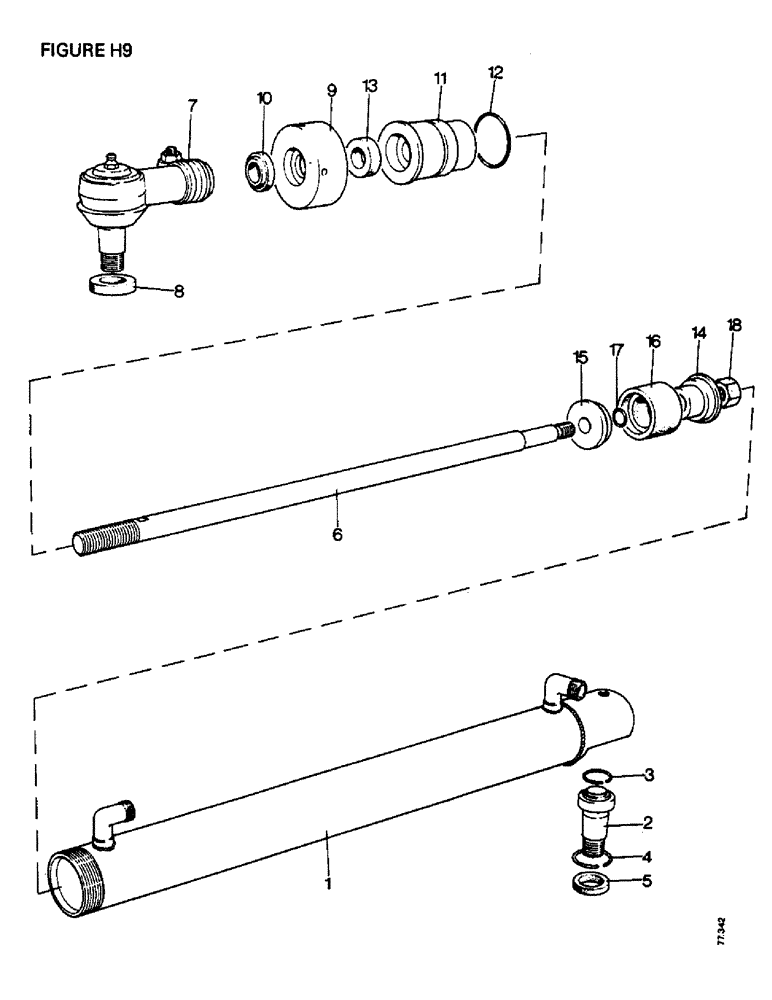

Запчасти Case IH 1412 (H09-1) - STEERING & FRONT AXLE, STEERING RAM, 4WD TRACS., KRAMER AXLE 1410 4WD, 1410Q 4WD, 1410SK 4WD Steering & Front Axle

K950325

CYLINDER

STEERING ASSEMBLY, Includes: Ref. 1 - 18

1шт.

1

K950326

CYLINDER

CASE

1шт.

2

K951705

PIN

PIVOT PIN AND BUSH

1шт.

3

K954359

RING, SNAP

CIRCLIP, 20 mm external

1шт.

4

K950341

CIRCLIP

1шт.

5

K951708

SEAL

DIRT EXCLUDER

1шт.

K951714

NUT

CASTLE NUT, M20

1шт.

K954348

SPLIT PIN/SAFETY PIN

SPLIT PIN, 4 x 36 mm

1шт.

K950342

FITTING

GREASE FITTING, M10

1шт.

6

K950338

PISTON

ROD

1шт.

7

K950327

BALL

JOINT ASSEMBLY, Includes: Ref. 8

1шт.

8

K954350

COVER

DIRT EXCLUDER

1шт.

K954349

LUBE NIPPLE

GREASE FITTING, M8

1шт.

K951714

NUT

CASTLE NUT, M20

1шт.

K954348

SPLIT PIN/SAFETY PIN

SPLIT PIN, 4 x 36 mm

1шт.

9

K950330

COVER

END COVER

1шт.

10

K950328

SEAL

WIPER SEAL

1шт.

11

K950331

SLEEVE

1шт.

12

K950332

O-RING

'O' RING, 44 mm internal diameter

1шт.

13

K950329

SEALING RING

piston rod

1шт.

14

K950336

PISTON

inner half

1шт.

15

K950337

LOCK

PISTON, outer half

1шт.

16

K950335

PISTON

SEAL, piston

1шт.

17

K950334

O-RING

'O' RING, 16 mm internal diameter

1шт.

18

K950337

LOCK

NUT, M16

1шт.

K964824

SEAL

PACK, steering cylinder

1шт.
