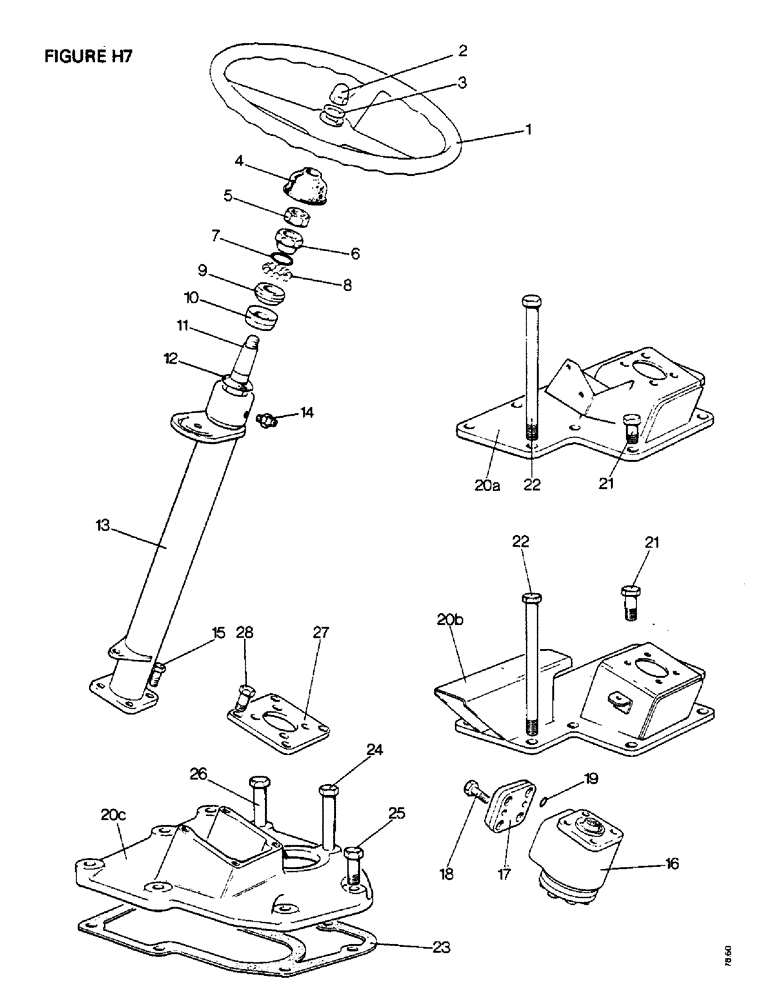

Запчасти Case IH 1412 (H07-1) - STEERING&FRONT AXLE, STEERING COLUMN&SERVO VALVE TRACS. W/O CAB (A)1410(B)1410 4WD(C)1412(D)1412 4WD Steering & Front Axle

1

K912634

HANDWHEEL

STEERING WHEEL, 16 in, black

1шт.

2

K905679

NUT

DOMED NUT, 5/8 UNC

1шт.

3

K626671

WASHER

5/8 in, special

1шт.

K19608

KEY

Woodruff No. 606

1шт.

4

K923681

SEAL

DIRT EXCLUDER

1шт.

5

K924967

NUT

LOCKNUT

1шт.

6

K903463

BEARING CONE

ADJUSTABLE BEARING CONE

1шт.

7

K903468

O-RING,0.156" Thk x 1.234" ID, 75 Duro

'O' RING, 1 1/4 in internal diameter

1шт.

8

K13506

BALL

STEEL BALL, 3/8 in

12шт.

9

K903462

SPHERICAL BEARING

LOWER BEARING

1шт.

10

K903461

SPACER

SPHERICAL SEATING

1шт.

11

K925264

SHAFT

1шт.

12

K903469

PAD, RUBBER

RUBBER BAFFLE

1шт.

13

K929146

SUPPORT ASSY.

STEERING COLUMN

1шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

15

K600403

BOLT

3/8 UNC x 1 3/8 in (steering column to steering valve)

4шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (steering column to steering valve)

4шт.

16a

K946083

VALVE

ORBITROL STEERING VALVE, type OSP 125

1шт.

1410

1шт.

1412

1шт.

1410 4WD

1шт.

16b

K924898

VALVE

ORBITROL STEERING VALVE, type OSP 100

1шт.

1410 4WD

1шт.

17

K948588

VALVE

BLOCK, Orbitrol, Includes: Ref. 18 and 19

1шт.

1412G

1шт.

18

K940381

CAP

SCREW, 10 mm x 1 9/16 in

2шт.

1412G

1шт.

19

K15028

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

'O' RING, 7/8 in internal diameter

4шт.

1412G

1шт.

20a

K947864

SUPPORT

BRACKET

1шт.

1410

1шт.

20b

K940357

SUPPORT

BRACKET

1шт.

1410 4WD

1шт.

20c

K940116

SUPPORT

CASTING

1шт.

1412

1шт.

1412G

1шт.

21

K603105

SCREW

SETSCREW, 1/2 UNC x 1 1/8 in (support brackets to gearbox cover)

8шт.

1410

1шт.

1410 4WD

1шт.

22

K600833

BOLT

1/2 UNC x 8 1/2 in (support brackets to gearbox cover)

2шт.

1410

1шт.

1410 4WD

1шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in (support brackets to gearbox cover)

10шт.

1410

1шт.

1410 4WD

1шт.

23

K940136

GASKET

(support casting to gearbox cover)

1шт.

1412

1шт.

1412G

1шт.

24

K600840

BOLT

1/2 UNC x 2 in (support casting to gearbox cover)

1шт.

1412

1шт.

1412G

1шт.

25

K600806

BOLT

1/2 UNC x 2 in (support casting to gearbox cover)

1шт.

1412

1шт.

1412G

1шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in (support casting to gearbox cover)

7шт.

1412

1шт.

1412G

1шт.

26

K600836

BOLT

1/2 UNC x 9 1/4 in (support casting to gearbox cover)

8шт.

1412

1шт.

1412G

1шт.

K626686

WASHER

1/2 in (support casting to gearbox cover)

1шт.

27

K928118

SUPPORT

PLATE, steering column

1шт.

1412

1шт.

1412G

1шт.

28

K602903

SCREW

SETSCREW, 3/8 UNC x 7/8 in

1шт.

1412

1шт.

1412G

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

4шт.

1412

1шт.

1412G

1шт.

1500443C92

SEAL KIT

SEAL PACK, steering valve, (Replaces K626387)

1шт.
