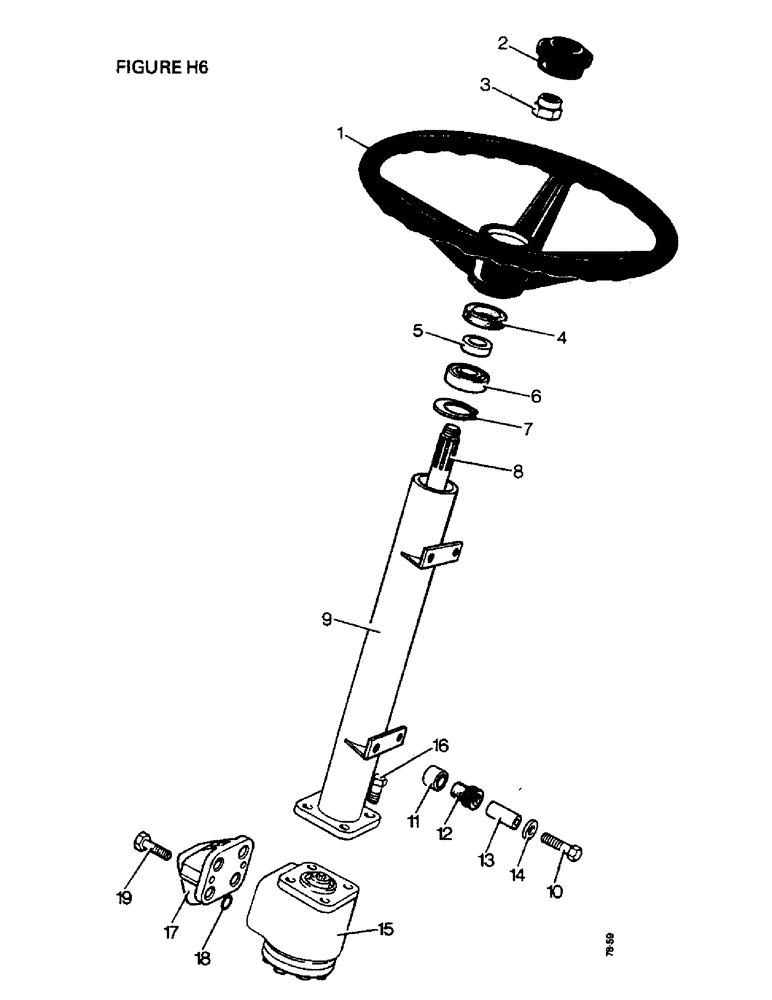

Запчасти Case IH 1412 (H06-1) - STEERING&FRONT AXLE,STEER. COLUMN & SERVO VALVE TRACS.W/CAB [A]1410Q,1410SK,1412Q,1412SK[B]1410Q 4WD Steering & Front Axle

1

K949446

HANDWHEEL

STEERING WHEEL, 15 in, black

1шт.

2

K952274

CAP

HUB CAP

1шт.

3

K607304

NUT

NYLOC NUT, 1/2 UNC

1шт.

K626686

WASHER

1/2 in

1шт.

4

K623467

SEAL

FELT WASHER

1шт.

5

K627103

BUSHING

DISTANCE PIECE

1шт.

6

K620192

BALL

BEARING

1шт.

7

K11911

RING, SNAP

CIRCLIP, 1 5/8 in

2шт.

8

K951207

SHAFT

1шт.

9

K951204

SUPPORT

STEERING COLUMN

1шт.

10

K600369

BOLT

5/16 UNC x 1 3/4 in (steering column to cab floor)

4шт.

11

K627305

BUSHING

SPACER (steering column to cab floor)

4шт.

12

K950214

RUBBER

MOUNTING (steering column to cab floor)

4шт.

13

K627086

BUSHING

SPACER (steering column to cab floor)

4шт.

14

K626884

WASHER

5/16 in, special (steering column to cab floor)

4шт.

15a

K946083

VALVE

ORBITROL STEERING VALVE, type OSP 125

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

15b

K924898

VALVE

ORBITROL STEERING VALVE, type OSP 100

1шт.

If dealer is looking for an adapter to use a hose in place of the tube, use part number K207716

1шт.

1410Q, 4WD

1шт.

16

K602983

SCREW

SETSCREW, 3/8 UNC x 7/8 in (steering column to steering valve)

4шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (steering column to steering valve)

4шт.

17

K951096

FITTING

CONNECTING BLOCK

1шт.

18

K15028

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

'O' RING, 7/8 in internal diameter

4шт.

19

K624683

SCREW

M10 x 50 mm

2шт.

K962387

GASKET KIT

SEAL PACK, steering valve

1шт.

Seal pack for Ref#15A pump.-If steering handpump has Danfoss part #150-1051 on it, order seal kit P/N 3141548R91.

1шт.
