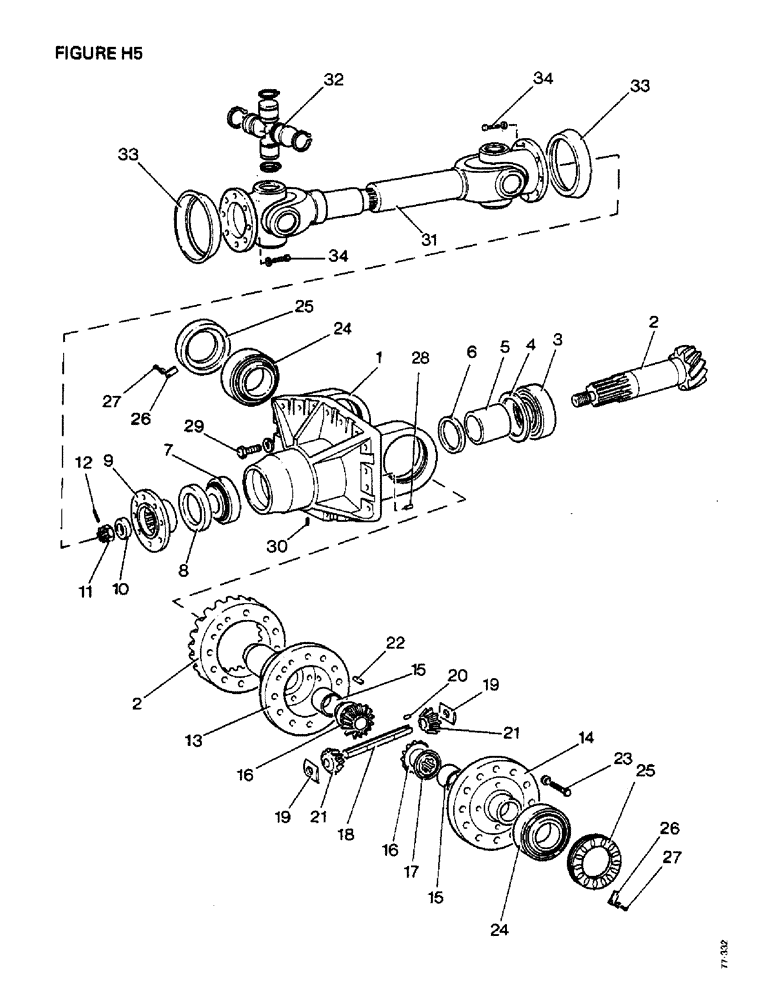

Запчасти Case IH 1412 (H05-1) - STEERING AND FRONT AXLE, FRONT DIFFERENTIAL AND DRIVESHAFT 4WD TRACTORS, KRAMER AXLE Steering & Front Axle

K951829

DIFFERENTIAL

ASSEMBLY, Includes: Ref. 1 - 30

1шт.

1

K954337

CARRIER

differential

1шт.

2

K964827

WHEEL

BEVEL PINION AND SPIRAL GEAR

1шт.

3

K951832

BEARING

TAPER ROLLER BEARING

1шт.

4a

K951833

SHIM

3.3 mm

1шт.

4b

K951834

SHIM

3.4 mm

1шт.

4c

K951935

SHIM, 3.5 mm

1шт.

4d

K951836

SHIM

3.6 mm

1шт.

4e

K951837

SHIM

3.7 mm

1шт.

4f

K951838

SHIM

3.8 mm

1шт.

4g

K951839

SHIM

3.9 mm

1шт.

4h

K951840

SHIM

4.0 mm

1шт.

4j

K951841

SHIM

4.1mm

1шт.

4k

K951842

SHIM

4.2 mm

1шт.

4l

K951843

SHIM

4.3 mm

1шт.

4m

K951844

SHIM

4.4 mm

1шт.

4n

K951845

SHIM

4.5 mm

1шт.

4p

K951846

SHIM

4.6 mm

1шт.

4q

K951847

SHIM

4.7 mm

1шт.

4r

K951848

SHIM

4.8 mm

1шт.

5

K951849

SLEEVE

DISTANCE SLEEVE

1шт.

6a

K951850

SHIM

4.60 mm

1шт.

6b

K951851

SHIM

6.45 mm

1шт.

6c

K951852

SHIM

6.50 mm

1шт.

6d

K951853

SHIM

6.55 mm

1шт.

6e

K951854

SHIM

6.60 mm

1шт.

6f

K951855

SHIM

6.65 mm

1шт.

6g

K951856

SHIM

6.70 mm

1шт.

6h

K951857

SHIM

6.75 mm

1шт.

6i

K951858

SHIM

6.80 mm

1шт.

6j

K951859

SHIM

6.85 mm

1шт.

6k

K951860

SHIM

6.90 mm

1шт.

6l

K951861

SHIM

6.95 mm

1шт.

6m

K951862

SHIM

7.00 mm

1шт.

6n

K951863

SHIM

7.05 mm

1шт.

6p

K951864

SHIM

7.10 mm

1шт.

6q

K951865

SHIM

7.15 mm

1шт.

6r

K951866

SHIM

7.20 mm

1шт.

6s

K954338

SHIM

7.25 mm

1шт.

6t

K954339

SHIM

7.30 mm

1шт.

6u

K954340

SHIM

7.35 mm

1шт.

6v

K954341

SHIM

7.40 mm

1шт.

6w

K954342

SHIM

7.45 mm

1шт.

6x

K954343

SHIM

7.50 mm

1шт.

6y

K954344

SHIM

7.55 mm

1шт.

6z

K954345

SHIM

7.60 mm

1шт.

7

K951867

BEARING

TAPER ROLLER BEARING

1шт.

8

K951868

SEAL

OIL SEAL

1шт.

9

K951869

FLANGE

1шт.

10

K954346

WASHER

1шт.

11

K951871

NUT

1шт.

12

K954347

PIN

pinion nut

1шт.

13

K951873

HOUSING

CAGE

1шт.

14

K951874

PLATE

END PLATE, cage

1шт.

15

K951875

BUSHING

BUSH

2шт.

16

K951876

GEAR

BEVEL GEAR

2шт.

17

K951877

WASHER

THRUST WASHER

2шт.

18

K951878

PIN

bevel pinions

1шт.

19

K951879

WASHER

THRUST WASHER

2шт.

20

K951880

PIN

LOCKING PIN

1шт.

21

K951881

GEAR

BEVEL PINION

2шт.

22

K951885

PIN

DOWEL, differential cage

2шт.

23

K951886

SCREW

SETSCREW, M14 x 40 mm

12шт.

K951887

WASHER

SPRING WASHER, 14 mm

12шт.

24

K951772

BEARING

TAPER ROLLER BEARING

2шт.

25

K951888

NUT

ADJUSTER

2шт.

26

K951889

WASHER

LOCKING PLATE, bearing adjuster

2шт.

27

K951757

SCREW

SETSCREW, M8 x 15 mm

2шт.

K19481

SPRING WASHER

SPRING WASHER, 8 mm

2шт.

28

K951890

PIN

DOWEL (carrier to front axle)

2шт.

29

K951891

SCREW

SETSCREW, M14 x 40 mm (carrier to front axle)

20шт.

K951892

SPRING WASHER

14 mm (carrier to front axle)

20шт.

30

K951893

SCREW

LOCATING SCREW, M10

2шт.

31

K944165

SHAFT ASSY.

DRIVING SHAFT ASSEMBLY, Includes: Ref. 32

1шт.

32

K954334

JOINT

REPAIR PACK, universal joint

2шт.

K954061

FITTING

GREASE FITTING, M8, angled

2шт.

K950342

FITTING

GREASE FITTING, M10, straight

1шт.

33

K951712

GUARD

driveshaft

2шт.

34

K951710

BOLT

M10 x 20 mm

16шт.

K951711

WASHER

SPRING WASHER, 10 mm

16шт.
