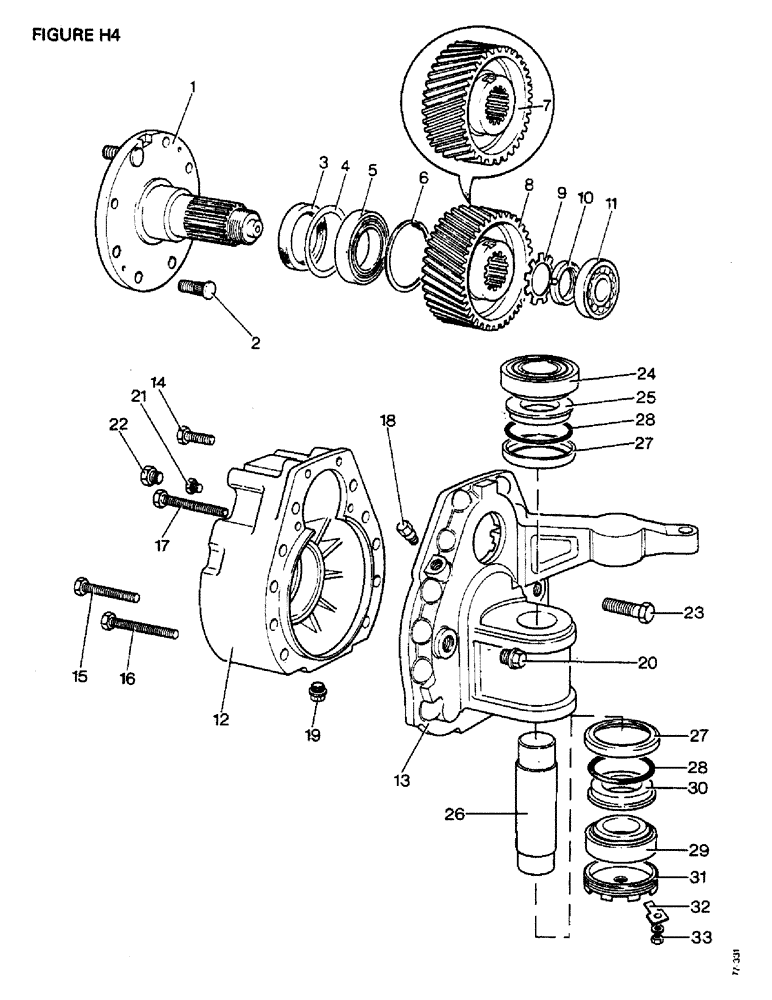

Запчасти Case IH 1412 (H04-1) - STEERING AND FRONT AXLE, FINAL DRIVESHAFTS AND REDUCTION HOUSINGS 4WD TRACS. , KRAMER AXLE Steering & Front Axle

1

NSS

NOT SOLD SEPARAT

FINAL DRIVESHAFT, (Replaces K951799), Includes: Ref. 2

2шт.

2

K951801

BOLT

WHEEL STUD

8шт.

K951824

WHEEL

NUT

8шт.

K951825

SPRING

WASHER

8шт.

3

K951802

OIL SEAL

OIL SEAL

2шт.

4a

K951803

SHIM

0.2 mm

1шт.

4b

K951804

SHIM

0.3 mm

1шт.

4c

K951805

SHIM

0.5 mm

1шт.

5

K954351

BEARING

ROLLER BEARING

2шт.

6

K951807

RING, SNAP

CIRCLIP

2шт.

7

K951808

GEAR

left-hand

1шт.

8

K951809

GEAR

right-hand

1шт.

9

K951811

WASHER

TAB-WASHER

2шт.

10

K951812

NUT

RING NUT, M62

2шт.

11

K951810

BEARING

ROLLER BEARING

2шт.

12

K951769

DRIVE

HOUSING, reduction units

2шт.

K951767

DRIVE

CARRIER, left-hand

1шт.

13

K951768

DRIVE

CARRIER, right-hand

1шт.

14

K951813

SCREW

SETSCREW, M10 x 45 mm

4шт.

15

K951814

BOLT

SETSCREW, M10 x 125 mm

16шт.

16

K951815

SCREW

SETSCREW, M10 x 105 mm

4шт.

17

K951816

SCREW

SETSCREW, M10 x 70 mm

4шт.

K950777

WASHER

SPRING WASHER, 10 mm

28шт.

18

K951817

BREATHER

PLUG, M22

2шт.

19

K950778

PLUG

MAGNETIC PLUG, M22

2шт.

K950779

SEAL

ING WASHER, 22 mm

2шт.

20

K951818

PLUG

LEVEL PLUG, M16

2шт.

K951819

WASHER

SEALING WASHER, 16 mm

2шт.

21

K951820

PLUG

M12

2шт.

K951821

WASHER

SEALING WASHER, 12 mm

2шт.

22

K954352

PLUG

M22

2шт.

K950779

SEAL

ING WASHER, 22 mm

2шт.

23

K951822

SCREW

ADJUSTING SCREW, M16, steering stop

2шт.

K951823

NUT

LOCKNUT, M16

2шт.

24

K951763

BEARING

TAPER ROLLER BEARING, upper

2шт.

25a

K951736

WASHER

DISTANCE WASHER, 8.0 mm

1шт.

25b

K951737

WASHER

DISTANCE WASHER, 8.2 mm

1шт.

25c

K951738

WASHER

DISTANCE WASHER, 8.4 mm

1шт.

25d

K951739

WASHER

DISTANCE WASHER, 8.6 mm

1шт.

25e

K951740

WASHER

DISTANCE WASHER, 8.8 mm

1шт.

25f

K951741

WASHER

DISTANCE WASHER, 9.0 mm

1шт.

25g

K951742

WASHER

DISTANCE WASHER, 9.2 mm

1шт.

25h

K951743

WASHER

DISTANCE WASHER, 9.4 mm

1шт.

25i

K951744

WASHER

DISTANCE WASHER, 9.6 mm

1шт.

25k

K951745

WASHER

DISTANCE WASHER, 9.8 mm

1шт.

25l

K951746

WASHER

DISTANCE WASHER, 10.0 mm

1шт.

25m

K951747

WASHER

DISTANCE WASHER, 10.2 mm

1шт.

25n

K951748

WASHER

DISTANCE WASHER, 10.4 mm

1шт.

26

K951754

LARGE PIN

SWIVEL PIN

2шт.

27

K951752

RING

SEAL

4шт.

28

K951753

O-RING

'O' RING

4шт.

29

K951764

BEARING

TAPER ROLLER BEARING, lower

2шт.

30

K951749

WASHER

lower

2шт.

31

K951755

NUT

ADJUSTING NUT

2шт.

32

K951756

WASHER

LOCK PLATE

2шт.

33

K951757

SCREW

SETSCREW

2шт.

K19481

SPRING WASHER

SPRING WASHER

2шт.

K954355

FITTING

GREASE FITTING, angled

2шт.
