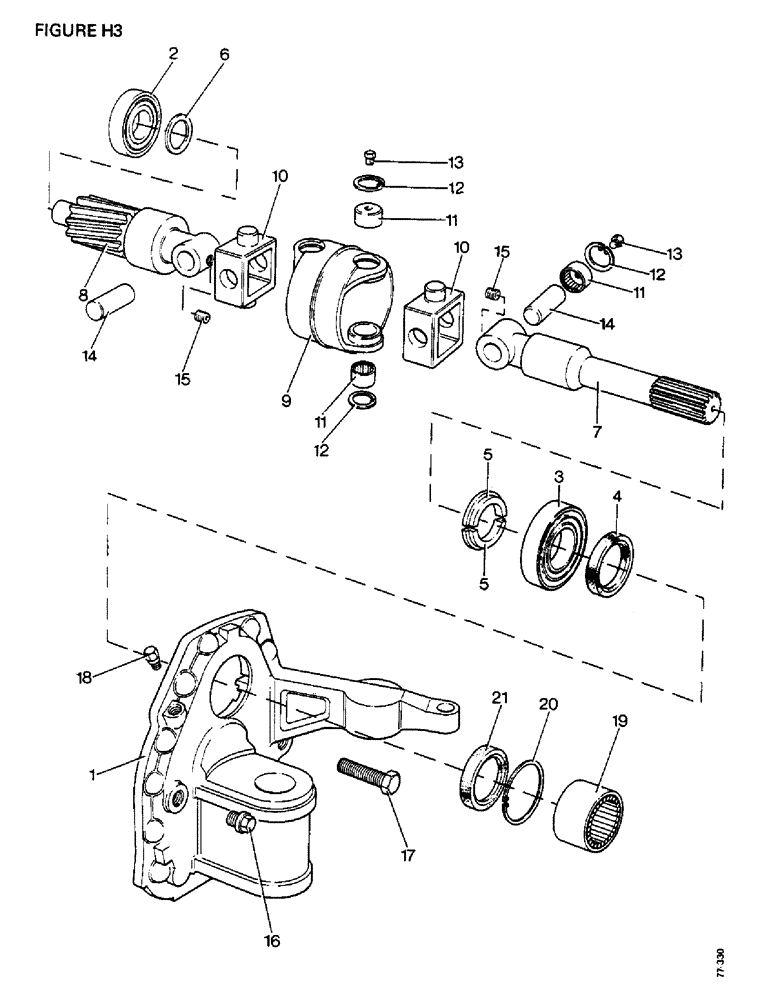

Запчасти Case IH 1412 (H03-1) - STEERING & FRONT AXLE, DRIVE SHAFTS AND HOUSINGS FOR FRONT AXLE 4WD TRAC., KRAMER AXLE Steering & Front Axle

K951765

DRIVE

FINAL DRIVE ASSEMBLY, left-hand

1шт.

K951766

DRIVE

FINAL DRIVE ASSEMBLY, right-hand

1шт.

1a

K951767

DRIVE

CARRIER, left-hand

1шт.

1b

K951768

DRIVE

CARRIER, right-hand

1шт.

K951769

DRIVE

HOUSING

2шт.

2

K951773

BEARING

TAPER ROLLER BEARING

2шт.

3

K951772

BEARING

TAPER ROLLER BEARING

2шт.

4

K951774

OIL SEAL

OIL SEAL, pinion shaft

2шт.

5

K951775

BUSHING

SPLIT BUSH, halves

4шт.

6a

K951776

WASHER

DISTANCE WASHER, 1.60 mm

1шт.

6b

K951777

WASHER

DISTANCE WASHER, 1.65 mm

1шт.

6c

K951778

WASHER

DISTANCE WASHER, 1.70 mm

1шт.

6d

K951779

WASHER

DISTANCE WASHER, 1.75 mm

1шт.

6e

K951780

WASHER

DISTANCE WASHER, 1.80 mm

1шт.

6f

K951781

WASHER

DISTANCE WASHER, 1.85 mm

1шт.

6g

K951782

WASHER

DISTANCE WASHER, 1.90 mm

1шт.

6h

K951783

WASHER

DISTANCE WASHER, 1.95 mm

1шт.

6i

K951784

WASHER

DISTANCE WASHER, 2.00 mm

1шт.

6j

K951785

WASHER

DISTANCE WASHER, 2.05 mm

1шт.

6k

K951786

WASHER

DISTANCE WASHER, 2.10 mm

1шт.

6l

K951787

WASHER

DISTANCE WASHER, 2.15 mm

1шт.

6m

K951788

WASHER

DISTANCE WASHER, 2.20 mm

1шт.

6n

K951789

WASHER

DISTANCE WASHER, 2.25 mm

1шт.

6p

K951790

WASHER

DISTANCE WASHER, 2.30 mm

1шт.

6q

K951791

WASHER

DISTANCE WASHER, 2.35 mm

1шт.

6r

K951792

WASHER

DISTANCE WASHER, 2.40 mm

1шт.

6s

K951793

WASHER

DISTANCE WASHER, 2.45 mm

1шт.

6t

K951794

WASHER

DISTANCE WASHER, 2.50 mm

1шт.

6u

K951795

WASHER

DISTANCE WASHER, 2.55 mm

1шт.

6v

K951796

WASHER

DISTANCE WASHER, 2.60 mm

1шт.

6w

K951797

WASHER

DISTANCE WASHER, 2.65 mm

1шт.

6x

K951798

WASHER

DISTANCE WASHER, 2.70 mm

1шт.

6x

K951798

WASHER

DISTANCE WASHER, 2.70 mm

1шт.

K951770

SHAFT

DRIVE SHAFT ASSEMBLY, left-hand, long, Includes: Ref. 7 - 12

1шт.

K951771

SHAFT

DRIVE SHAFT ASSEMBLY, right-hand, short, Includes: Ref. 7 - 12

1шт.

K954360

JOINT

SHAFT AND JOINT, left-hand, long

1шт.

7

K954362

JOINT

SHAFT AND JOINT, right-hand, short

1шт.

K954361

DRIVE

SHAFT AND GEAR, left-hand

1шт.

8

K954363

DRIVE SHAFT

SHAFT AND GEAR, right-hand

1шт.

9

K954364

CASE

CENTRE YOKE

1шт.

10

K954366

YOKE

CROSS PIECE

2шт.

11

K954368

BEARING

NEEDLE ROLLER BEARING

8шт.

12

K954369

RING, SNAP

CIRCLIP

8шт.

13

K954370

PLUG

M10

8шт.

14

K954367

PIN

2шт.

15

K954371

SCREW

SETSCREW, M10

2шт.

K951759

FITTING

GREASE FITTING, M8

2шт.

16

K951818

PLUG

LEVEL PLUG, M16

2шт.

K951819

WASHER

SEALING WASHER, 16 mm

2шт.

17

K951822

SCREW

ADJUSTING SCREW, M16, steering stop

2шт.

K951823

NUT

LOCKNUT, M16

2шт.

18

K951817

BREATHER

PLUG, M22

2шт.

19

K951731

BEARING

NEEDLE ROLLER BEARING (axle case)

2шт.

20

K954354

RING, SNAP

CIRCLIP, 52 mm, internal (axle case)

2шт.

21

K951732

OIL SEAL

OIL SEAL, 42 x 52 x 7 mm (axle case)

2шт.
