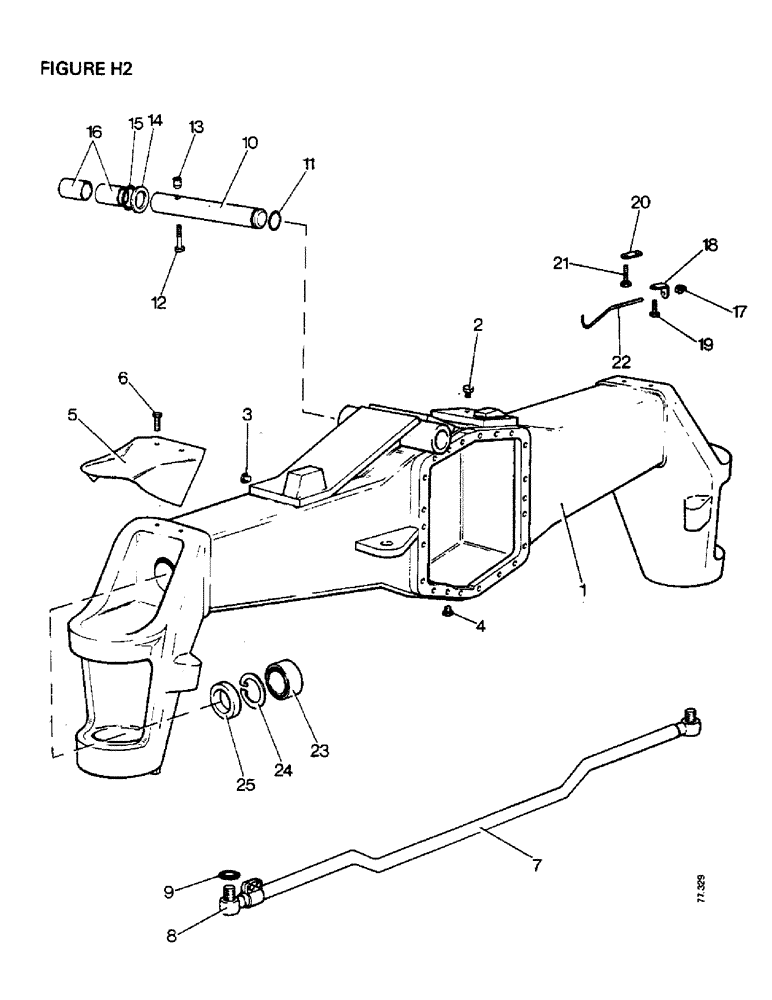

Запчасти Case IH 1412 (H02-1) - STEERING&FRONT AXLE, FRONT AXLE 4WD TRAC., KRAMER AXLE [A] 1410 4WD, [B] 1410Q 4WD, 1410SK 4WD Steering & Front Axle

K953866

FRONT AXLE ASSEMBLY, complete

1шт.

K951765

DRIVE

FINAL DRIVE ASSEMBLY, left-hand (see Figure H3 and H4)

1шт.

K951766

DRIVE

FINAL DRIVE ASSEMBLY, right-hand (see Figure H3 and H4)

1шт.

K951829

DIFFERENTIAL

ASSEMBLY, see Figure H5

1шт.

K950325

CYLINDER

STEERING CYLINDER ASSEMBLY, see Figure H18

1шт.

1a

K954336

SHAFT

AXLE CASE, with hole for breather

1шт.

1b

K951828

SHAFT

AXLE CASE, without hole for breather

1шт.

2

K951817

BREATHER

M10

1шт.

3

K951894

PLUG

FILLER PLUG, M22

1шт.

4

K950778

PLUG

MAGNETIC PLUG, M22

1шт.

K950779

SEAL

ING WASHER, 22 mm

1шт.

5

K954356

COVER

PLATE

2шт.

6

K954357

SCREW

SETSCREW

4шт.

K951762

WASHER

SPRING WASHER

4шт.

K951759

FITTING

GREASE FITTING, straight

2шт.

7

K951895

ROD

TRACK ROD

1шт.

8

K953532

BALL

JOINT

1шт.

9

K954350

COVER

DIRT EXCLUDER

2шт.

K951714

NUT

M20

2шт.

K954348

SPLIT PIN/SAFETY PIN

SPLIT PIN

2шт.

K951759

FITTING

GREASE FITTING, ball joint

2шт.

10

K952586

TRUNNION

PIN

1шт.

11

K15596

RING,3.63mm Thk x 31.34mm ID

'O' RING, 1 1/4 in internal diameter

1шт.

12

K600505

BOLT

3/8 UNC x 2 3/4 in

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

1шт.

13

K913092

NUT

SCREWED BUSH, 3/8 UNC

1шт.

14

K915421

WASHER

THRUST WASHER

2шт.

15

K623524

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

'O' RING, 2 1/8 in internal diameter

2шт.

ITEM # 15 K964083 THE SEAL KIT IS K962387 THE SPRING KIT IS K964157 SEE 1190 BOOK THESE PARTS NOW SUB BUT ARE STILL AVL

1шт.

16

K15597

BUSHING

BUSH, main frame

4шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

17

K622255

FITTING

GREASE FITTING, 1/8 BSP, special

1шт.

18

K948809

BRACKET

SUPPORT BRACKET, grease fitting

1шт.

19

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 5/8 in

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

1шт.

20

K952592

PLATE

1шт.

1410Q, 4WD, 1410SK, 4 WD

1шт.

21

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 7/8 in

1шт.

1410Q, 4WD, 1410SK, 4 WD

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

1шт.

1410Q, 4WD, 1410SK, 4 WD

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

1шт.

1410Q, 4WD, 1410SK, 4 WD

1шт.

22

K948808

TUBE

grease fitting

1шт.

23

K951731

BEARING

NEEDLE ROLLER BEARING

2шт.

24

K954354

RING, SNAP

CIRCLIP, 52 mm, internal

2шт.

25

K951732

OIL SEAL

OIL SEAL, 42 x 52 x 7 mm

2шт.
