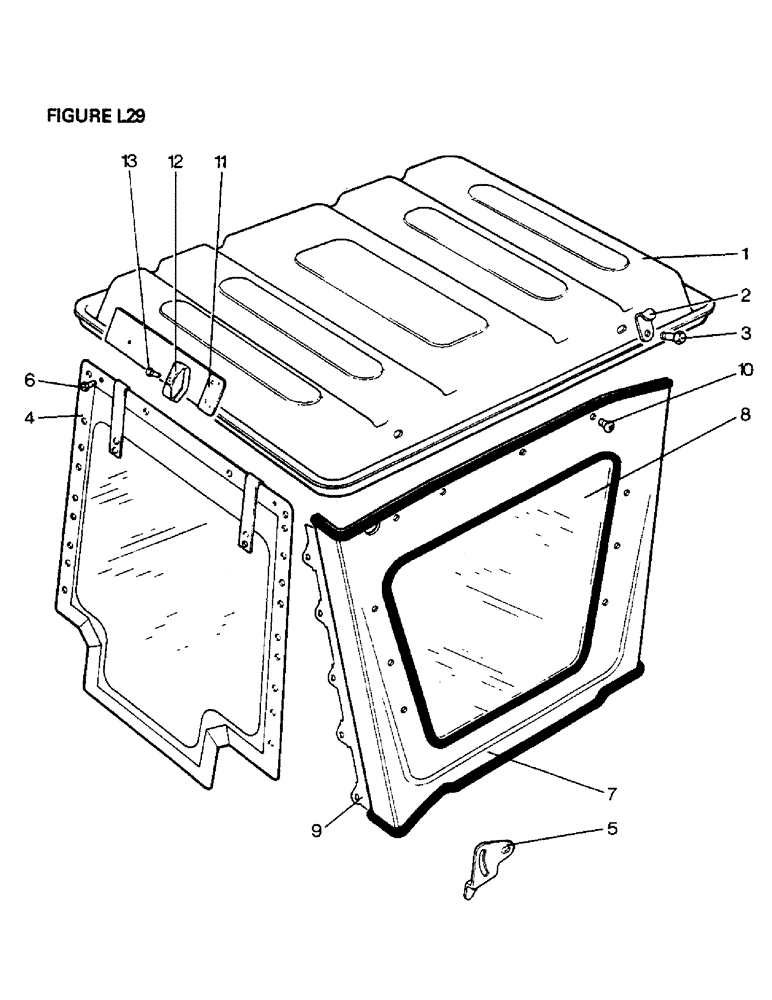

Запчасти Case IH 1412 (L29-1) - CHASSIS, BONNET, FENDERS, SAFETY FRAME & CAB,ROOF&SIDE PANEL DB WEATHERFRAME, METAL CLAD, 1410, 1412 (12) - CHASSIS

1

K772681

ROOF

ASSEMBLY, Includes: Ref. 2 and 3

1шт.

2

K772319

BRACKET

LIFTING BRACKET

4шт.

K691857

WASHER

special

4шт.

K691959

GROMMET

5шт.

K691965

COLLAR

BOSS

3шт.

3

K773277

BOLT

1/2 UNC, special, Serial Range: roof-frame

4шт.

4

K771376

SKIRT

REAR CURTAIN

1шт.

5

K772960

SKIRT

CURTAIN HOOK, right-hand fender

1шт.

K773202

SKIRT

CURTAIN HOOK, left-hand fender

1шт.

6

K691892

SCREW

1/4 UNC x 1 in (rear, Serial Range: curtain-frame)

4шт.

K19470

WASHER

1/4 in (rear, Serial Range: curtain-frame)

4шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in (rear, Serial Range: curtain-frame)

4шт.

K691893

NUT

WING NUT, 1/4 UNC (rear, Serial Range: curtain-frame)

4шт.

K773593

ROPE

upper (rear curtain)

2шт.

K773594

ROPE

lower (rear curtain)

2шт.

K774036

ATTACHMENT

RUBBER HOOP

2шт.

K773069

PANEL

SIDE PANEL, (complete), right-hand, Includes: Ref. 7A

1шт.

7a

K772649

PANEL

SIDE PANEL, welded assembly, right-hand

1шт.

K773073

PANEL, SIDE

SIDE PANEL, (complete), left-hand, Includes: Ref. 7B

1шт.

7b

K772644

PANEL

SIDE PANEL, welded assembly, left-hand

1шт.

8

K772654

WINDOW

(parts of assemblies K773069 and K773073)

1шт.

K774418

SPOOL

BOBBIN (parts of assemblies K773069 and K773073)

5шт.

K692095

RIVET

(parts of assemblies K773069 and K773073)

5шт.

9a

K772895

WASHER

CURTAIN RAIL, right-hand (parts of assemblies K773069 and K773073)

1шт.

9b

K773003

CURTAIN RAIL, left-hand (parts of assemblies K773069 and K773073)

1шт.

10

K603926

SCREW

1/4 UNC x 3/4 in, Serial Range: (panels-frame)

24шт.

K773029

STUD

, Serial Range: (panels-frame)

2шт.

K19470

WASHER

1/4 in, Serial Range: (panels-frame)

26шт.

K626552

WASHER

SHAKEPROOF WASHER, 1/4 in, Serial Range: (panels-frame)

26шт.

K607043

NUT

1/4 UNC, Serial Range: (panels-frame)

2шт.

K773276

HOOK

COAT HOOK, Serial Range: (panels-frame)

2шт.

11

K773199

PLATE

REAR NUMBER-PLATE

1шт.

12

K776322

PLATE

LAMP, rear number-plate, Replaces K773358

1шт.

K6925177

COVER, replaces K692044

1шт.

K692178

BASE

BULB HOLDER ASSEMBLY, Replaces K692045

1шт.

K692179

BASE

RUBBER BASE, Replaces K692046

1шт.

K692180

SCREW

replaces K692047

1шт.

13

K692069

SCREW

SETSCREW, 1/4 UNC x 1 in, Serial Range: (lamp-plate)

2шт.

K19470

WASHER

1/4 in, Serial Range: (lamp-plate)

3шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in, Serial Range: (lamp-plate)

3шт.

K691893

NUT

WING NUT, 1/4 UNC

3шт.

K954383

LEAD, lamp to connector, Replaces K773359

1шт.

K67916

ELEC CONNECTOR

SINGLE CONNECTOR

4шт.

K954455

ELECTRICAL WIRE

LEAD, connectors to 3-way connector, Replaces K773360

1шт.

K691989

CLIP

, Serial Range: leads-cab

1шт.

K692034

STRAP

CLIP, Serial Range: leads-cab

3шт.

K692035

LINK

RETAINING LINK, Serial Range: leads-cab

3шт.

K691892

SCREW

SETSCREW, 1/4 UNC x 1 in

1шт.
