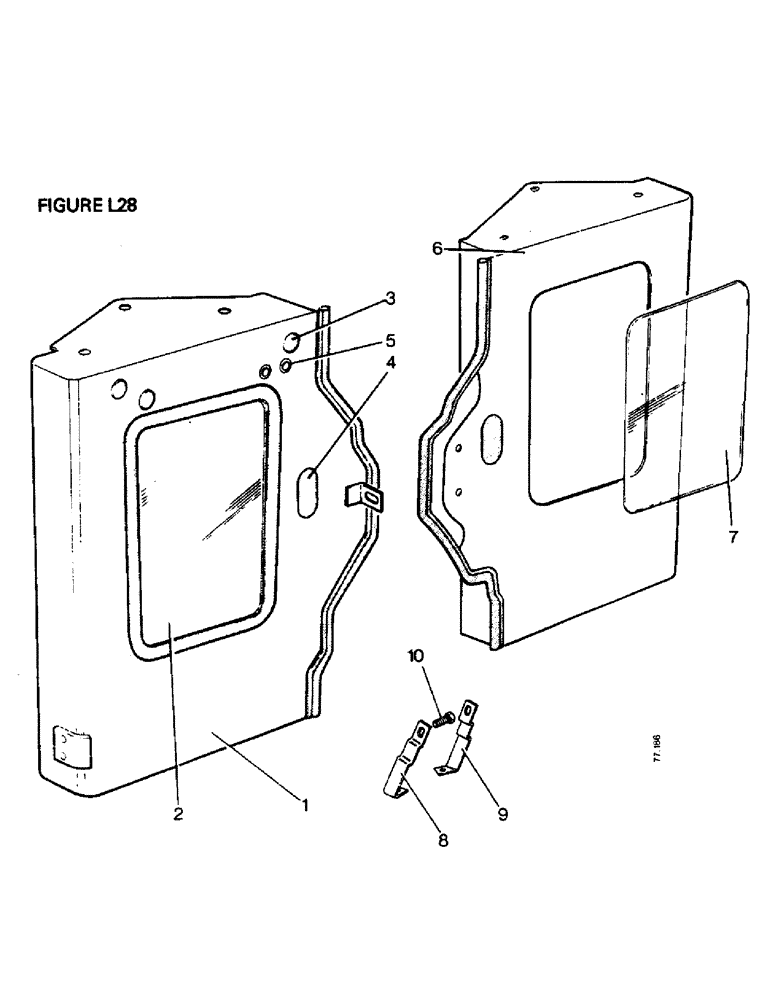

Запчасти Case IH 1412 (L28-1) - CHASSIS, BONNET, FENDERS, SAFETY FRAME AND CAB, BULKHEADS DB WEATHERFRAME 1410, 1412 (12) - CHASSIS

K773435

PANEL

BULKHEAD PANEL, (complete), right-hand, Includes: Ref. 1 - 5

1шт.

1

K772813

BULKHEAD PANEL, welded assembly

1шт.

2

K772748

GLASS

PANEL

1шт.

3

K691967

GROMMET

3шт.

4

K691968

GROMMET

2шт.

5

K692169

GROMMET

2шт.

K773434

PANEL

BULKHEAD PANEL, (complete), left-hand, hydrostatic steering, Includes: Ref. 6 and 7

1шт.

6

K772264

BULKHEAD PANEL, welded assembly

1шт.

7

K772748

GLASS

PANEL

1шт.

8

K773028

SUPPORT

right-hand bulkhead

1шт.

9

K772680

SUPPORT

left-hand bulkhead

1шт.

10

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Bulkheads to supports and supports to frame platforms) Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

K19472

WASHER

3/8 in, (bulkheads to supports and supports to frame platforms)

6шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (bulkheads to supports and supports to frame platforms)

6шт.

280136

NUT,3/8"-16, G8

(Bulkheads to supports and supports to frame platforms) 3/8"-16, G8

6шт.
