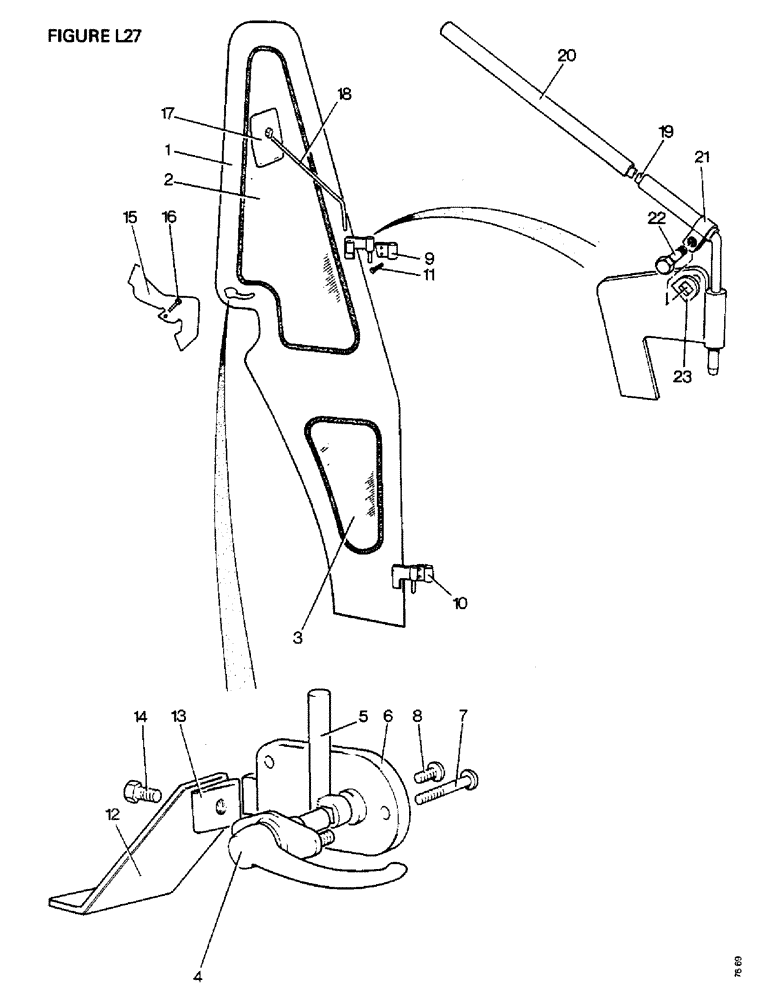

Запчасти Case IH 1412 (L27-1) - CHASSIS, BONNET, FENDERS, SAFETY FRAME AND CAB, DOORS DB WEATHERFRAME 1410, 1412 (12) - CHASSIS

K773092

DOOR

(COMPLETE), right-hand

1шт.

K773096

DOOR

(COMPLETE), left-hand

1шт.

1a

K772801

DOOR, welded assembly, right-hand

1шт.

K772802

DOOR

welded assembly, left-hand

1шт.

2

K772676

WINDOW

door top

2шт.

3

K772675

WINDOW

door bottom

2шт.

4

K773205

DOOR

HANDLE, outer right-hand door

1шт.

K773206

DOOR

HANDLE, outer, left-hand door

1шт.

K626340

RING

SPRING WASHER, 3/16 in, Serial Range: (handles-doors)

4шт.

K11109

NUT

2BA, Serial Range: (handles-doors)

4шт.

5

K773240

DOOR

HANDLE, inner

2шт.

K773243

DOOR

KNOB-INNER HANDLE

2шт.

K773244

RUBBER

BOSS, right-hand door

1шт.

K774050

BUSHING

RUBBER BOSS, left-hand door

1шт.

6

K773203

DOOR

LATCH, right-hand door

1шт.

K773204

LATCH

left-hand door

1шт.

7

K691954

SCREW

No. 10 UNF x 1 1/4 in

6шт.

K617080

NUT

No. 10 UNF

2шт.

8

K692042

SCREW

No. 10 UNF x 1/2 in

2шт.

K626310

WASHER

3/16 in

2шт.

K626340

RING

SPRING WASHER, 3/16 in

4шт.

9

K773175

HINGE

upper - right-hand door

1шт.

10

K773171

HINGE

lower - right-hand door

1шт.

K773174

HINGE

upper - left-hand door

1шт.

K773170

HINGE

lower left-hand door

1шт.

K774476

HINGE

PIN, upper hinge, left-hand door

1шт.

11

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW, 3/8 UNC x 1 1/8 in (Hinges to bulkhead)

8шт.

K19472

WASHER

3/8 in, Serial Range: (hinges-bulkhead)

16шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, Serial Range: (hinges-bulkhead)

8шт.

280136

NUT,3/8"-16, G8

(Hinges to bulkhead) 3/8"-16, G8

8шт.

12

K772996

PLATE

BRACKET, right-hand striker plate

1шт.

K772995

PLATE

BRACKET, left-hand striker plate

1шт.

13

K773071

PLATE

STRIKER PLATE

2шт.

14

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW, 5/16 UNC x 3/4 in (plates to brackets)

2шт.

K626682

WASHER

5/16 in, Serial Range: (plates-brackets)

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: (plates-brackets)

2шт.

15a

K773222

FENDER

EXTENSION, right-hand fender

1шт.

15b

K773224

FENDER

EXTENSION, left-hand fender

1шт.

16

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

1/4 UNC x 5/8 in, Serial Range: (extensions-fenders)

2шт.

K19470

WASHER

1/4 in, Serial Range: (extensions-fenders)

2шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in, Serial Range: (extensions-fenders)

2шт.

K607043

NUT

1/4 UNC, Serial Range: (extensions-fenders)

2шт.

K614945

SCREW

SETSCREW, No. 10 UNF x 5/8 in, Serial Range: (extensions-fenders)

2шт.

K626310

WASHER

3/16 in, Serial Range: (extensions-fenders)

2шт.

K626340

RING

SPRING WASHER, 3/16 in, Serial Range: (extensions-fenders)

2шт.

K617080

NUT

No. 10 UNF, Serial Range: (extensions-fenders)

2шт.

17

K773622

CAB

DRIVING MIRROR

1шт.

18

K773621

ARM

driving mirror; early cab

1шт.

K692039

SCREW

SETSCREW, 1/4 UNF x 3/4 in, arm to door, early cab

1шт.

19

K774188

CAB

ARM, driving mirror, later cab

1шт.

20

K774658

ARM

outer, later cab

1шт.

21

K774186

CLIP

later cab

1шт.

22

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW, 5/16 UNC x 1 in, later cab

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, later cab

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC, later cab

1шт.

23

K775292

PLATE

CLAMPING PLATE, later cab

1шт.
