Запчасти Case IH 1412 (L26-1) - CHASSIS, BONNET, FENDERS, SAFETY FRAME AND CAB, DB WEATHERFRAME AND WINDSCREEN 1410, 1412 (12) - CHASSIS

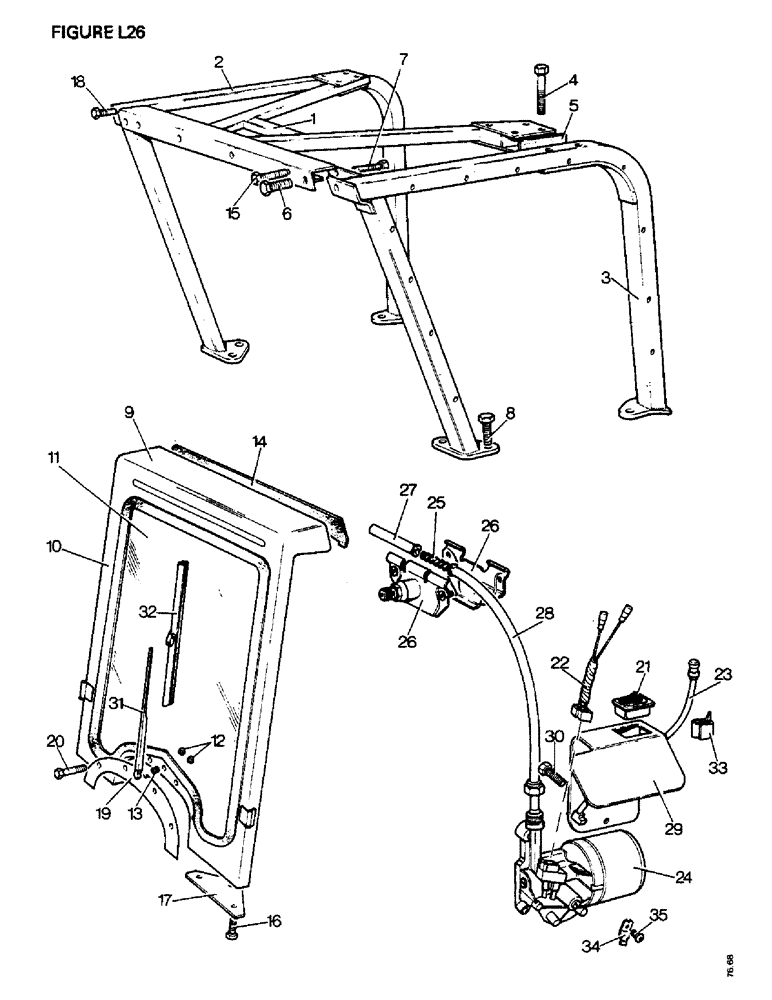

Схема запчастей Case IH 1412 - (L26-1) - CHASSIS, BONNET, FENDERS, SAFETY FRAME AND CAB, DB WEATHERFRAME AND WINDSCREEN 1410, 1412 (12) - CHASSIS
17
35
15
16
13
16
6
2
31
29
24
34
7
5
25
23
14
26
33
28
19
20
28
27
11
4
9
12
32
8
22
21
3
30
10

Артикул

Название

Примечание

Количество

1

K773345

FRAME

TOP FRAME

1шт.

K774856

IDENTIFICATION PLATE

1шт.

K691567

RIVET

4шт.

2

K774837

LACING, BELT

SIDE FRAME, right-hand

1шт.

3

K774836

LACING, BELT

SIDE FRAME, left-hand

1шт.

K692065

BOLT

INSERT, 5/8 in long

16шт.

K692101

BOLT

INSERT, 11/16 in long

8шт.

4

K600887

BOLT

1/2 UNC x 3 1/4 (side frames to top frame)

8шт.

K626345

LOCK WASHER

SPRING WASHER, 1/2 in (side frames to top frame)

8шт.

280431

NUT,1/2"-13, G5

(Side frames to top frame) 1/2"-13, G5

8шт.

5

K772174

PAD

SEATING PAD (side frames to top frame)

2шт.

6

K603274

SCREW

SETSCREW, 5/8 UNC x 1 1/2 in (side frames to top frame)

2шт.

7

K603276

SCREW

SETSCREW, 5/8 UNC x 1 3/4 in (side frames to top frame)

4шт.

K19485

WASHER

SPRING WASHER, 5/8 in (side frames to top frame)

6шт.

8

K603274

SCREW

SETSCREW, 5/8 UNC x 1 1/2 (side, Serial Range: frames-fenders)

8шт.

K691826

WASHER

5/8 in special (side, Serial Range: frames-fenders)

8шт.

K19485

WASHER

SPRING WASHER, 5/8 in (side, Serial Range: frames-fenders)

8шт.

9

K773298

WINDSHIELD

WINDSCREEN, (frame and glass), Includes: Ref. 10 and 11

1шт.

10

K772931

WINDSHIELD

WINDSCREEN PANEL ASSEMBLY

1шт.

11

K772674

WINDSHIELD

WINDSCREEN

1шт.

12

K628085

PLUG,Cap, .458" OD

1/2 in diameter

2шт.

13

K691959

GROMMET

3/8 in

2шт.

14

K773009

BUSHING

SPACER, (rubber), Serial Range: (windscreen-Weatherframe)

1шт.

15

K603143

SCREW

SETSCREW, 1/2 UNC x 1 1/2 in, Serial Range: (windscreen-Weatherframe)

4шт.

K691875

WASHER

1/2 in, special, Serial Range: (windscreen-Weatherframe)

4шт.

K691874

WASHER

RUBBER WASHER, 1/2 in, Serial Range: (windscreen-Weatherframe)

4шт.

K626345

LOCK WASHER

SPRING WASHER, 1/2 in, Serial Range: (windscreen-Weatherframe)

4шт.

16

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Windscreen to bulkhead panels) Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (windscreen to bulkhead panels)

6шт.

280136

NUT,3/8"-16, G8

(Windscreen to bulkhead panels) 3/8"-16, G8

6шт.

17

K773027

SEAL

SEATING PAD (windscreen to bulkhead panels)

2шт.

18

K602737

SCREW

SETSCREW, 1/4 UNC x 1 in (windscreen to side panels)

2шт.

K19470

WASHER

1/4 in (windscreen to side panels)

2шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in (windscreen to side panels)

2шт.

K607043

NUT

1/4 UNC (windscreen to side panels)

2шт.

19

K773246

SEAL

ING PLATE, Serial Range: windscreen-bonnet

1шт.

K692020

SCREW

SETSCREW, 8 x 1.25 mm (windscreen to sealing plate)

1шт.

K692022

NUT

8 mm (windscreen to sealing plate)

1шт.

20

K692008

BOLT

1/4 UNC x 1 5/8 in (windscreen to sealing plate)

4шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in (windscreen to sealing plate)

4шт.

K691893

NUT

WING NUT, 1/4 UNC (windscreen to sealing plate)

4шт.

21

K691923

SWITCH

(Lucas 39539), windscreen wiper

1шт.

22

K773538

HARNESS

windscreen wiper

1шт.

23

K773783

CABLE

LEAD, connector to windscreen wiper connector

1шт.

K773489

WIPER

MOTOR ASSEMBLY (Lucas 54071787 Type 14W 75666), Includes: Ref. 24 and 25

1шт.

24

K775997

WIPER MOTOR

1шт.

25

K775998

DRIVE

CABLE

1шт.

26

K691915

WHEEL

BOX, (Lucas 72884)

1шт.

27

K691917

TUBE

short (Lucas 740746)

1шт.

28

K773248

TUBE

long (Lucas 54711270)

1шт.

29

K773628

WIPER

COVER, wiper motor

1шт.

30

K602735

SCREW

SETSCREW, 1/4 UNC x 3/4 in

2шт.

K19470

WASHER

1/4 in

2шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in

2шт.

K607043

NUT

1/4 UNC

2шт.

31

K773405

WIPER

ARM

1шт.

32

K773406

WIPER

BLADE

1шт.

33

K903822

WASHER

CLIP, leads

2шт.

34

K925268

BLADE

CONNECTOR BLADE, Serial Range: (harness-earth)

1шт.

35

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

No. 10 UNF x 1/2 in (harness to earth)

1шт.

K626340

RING

SPRING WASHER, 3/16 in, Serial Range: (harness-earth)

1шт.

K617080

NUT

No. 10 UNF, Serial Range: (harness-earth)

1шт.

Выбрано товаров: 62
