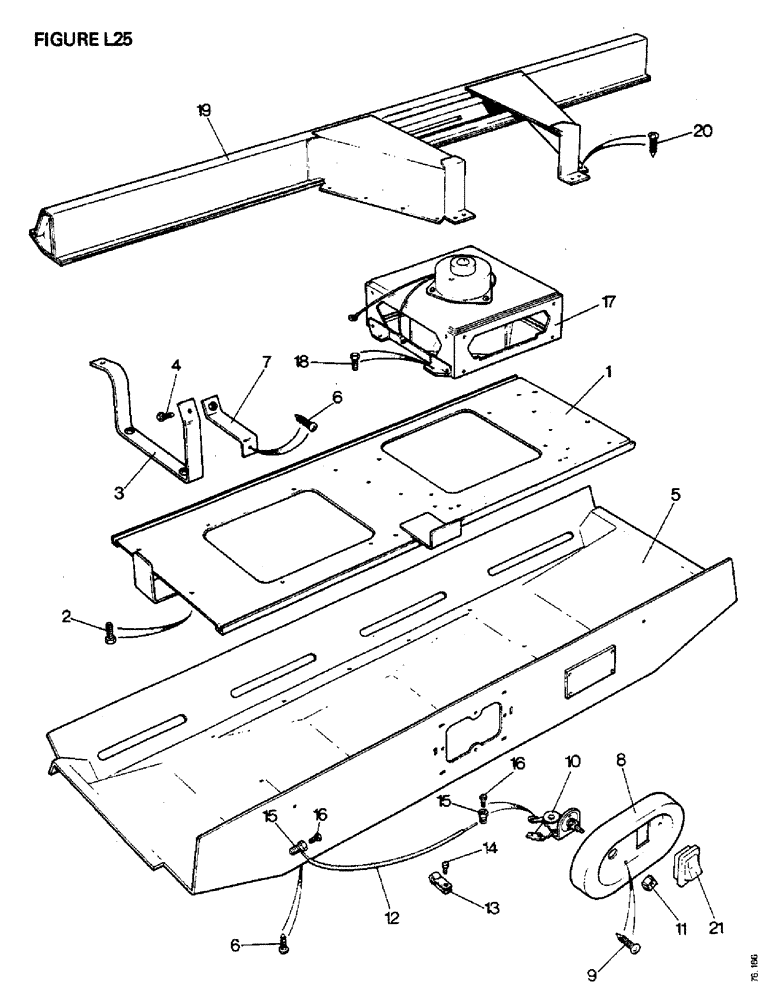

Запчасти Case IH 1412 (L25-1) - CHASSIS, BONNET, FENDERS, SAFETY FRAME AND CAB, HEATER UNIT FOR CAB OPTIONAL EQUIP. UP TO SN NOTE A (12) - CHASSIS

1

K951420

BASE

PLATE, cab heater

1шт.

2

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW, 5/16 UNC x 3/4 in (baseplate to supports)

6шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: (baseplate-supports)

6шт.

3

K952504

SUPPORT

BRACKET, baseplate

3шт.

4

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW, 5/16 UNC x 3/4 in (support brackets to cab)

6шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (support, Serial Range: brackets-cab)

6шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC (support brackets to cab)

4шт.

5

K953373

COVER

cab heater

1шт.

6

K624528

SCREW

SELF-TAPPING SCREW, No. 6 x 5/8 in

14шт.

K626760

WASHER

CUP WASHER, No. 6

14шт.

7

K953390

SUPPORT

BRACKET, heater cover

2шт.

8

K953372

PANEL

CONTROL PANEL

1шт.

9

K624529

PAN

SELF-TAPPING SCREW, No. 6 x 7/8 in

4шт.

10

K952101

VALVE, CONTROL

CONTROL, water valve

1шт.

11

K952783

KNOB

water control

1шт.

12

K952103

CABLE

FLEXIBLE CABLE, inner and outer

1шт.

13

K621681

CLIP

(cable to radiator flange)

1шт.

14

K602840

SCREW

SETSCREW, 5/16 UNC x 1/2 in (cable to radiator flange)

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (cable to radiator flange)

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC (cable to radiator flange)

1шт.

15

K952104

TRUNNION

inner cable

2шт.

16

K605578

SCREW

SETSCREW, No. 8 UNC x 3/8 in trunnion

2шт.

17

K953872

FAN

UNIT

1шт.

K953872

FAN

BLANKING PLATE

1шт.

K624524

SCREW

SELF-TAPPING SCREW, No. 6 x 3/8 in

4шт.

18

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SETSCREW, 1/4 UNC x 1/2 in (fan unit to baseplate)

4шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in (fan, Serial Range: unit-baseplate)

4шт.

K607043

NUT

1/4 UNC (fan, Serial Range: unit-baseplate)

4шт.

19

K951440

DUCT

DEMISTER DUCT

1шт.

20

K624528

SCREW

SELF-TAPPING SCREW, No. 6 x 5/8 in

12шт.

K952699

SEALING STRIP

6 x 20 mm x 11 3/8 in

2шт.

K952700

TAPE

SEALING STRIP, 6 x 20 mm x 8 in

2шт.

K952701

TAPE

SEALING STRIP, 6 x 20 mm x 2 in

3шт.

K952706

TAPE

SEALING STRIP, 6 x 20 mm x 9 1/2 in

2шт.

K952705

TAPE

SEALING STRIP, 6 x 12 mm x 25 3/4 in

2шт.

21

K953351

SWITCH

heater fan, Lucas 5340620

1шт.
